C Receiver Standard

SUPPORT   DVB-C EN 300 429 and ITU J83 A/C

Input RF Frequency

48~960MHZ

RF input leve

-78~20   dBm

RF Bandwidth

7MHZ   and 8MHZ

Signal input

IEC-type   female

Constellation

QPSK,   16QAM,64QAM, 256QAM

FEC

1/2,   2/3, 3/4, 4/5, 5/6

Decoder format

MPEG   4 AVC/H.264 HP@L4MPEG2 MP@MP.HL

Output format

480i/480p/567i/567p/720i/720p/1080p/1080i

Output port

HDMI,AV/Scart(optional)

Decoder fomat

MPEG-1(layer   1&2&3),WMA.AC3,AAC

Audio output

Coaxial,   L/R(AV or Scart)

Maximum power consumption

<   10w

Standby power

<1w

Hardware Interface

Indicators

signal lock

IR Receiver

38KHZ

Display

LED

Loop through output

IEC- type, connector,single tuner

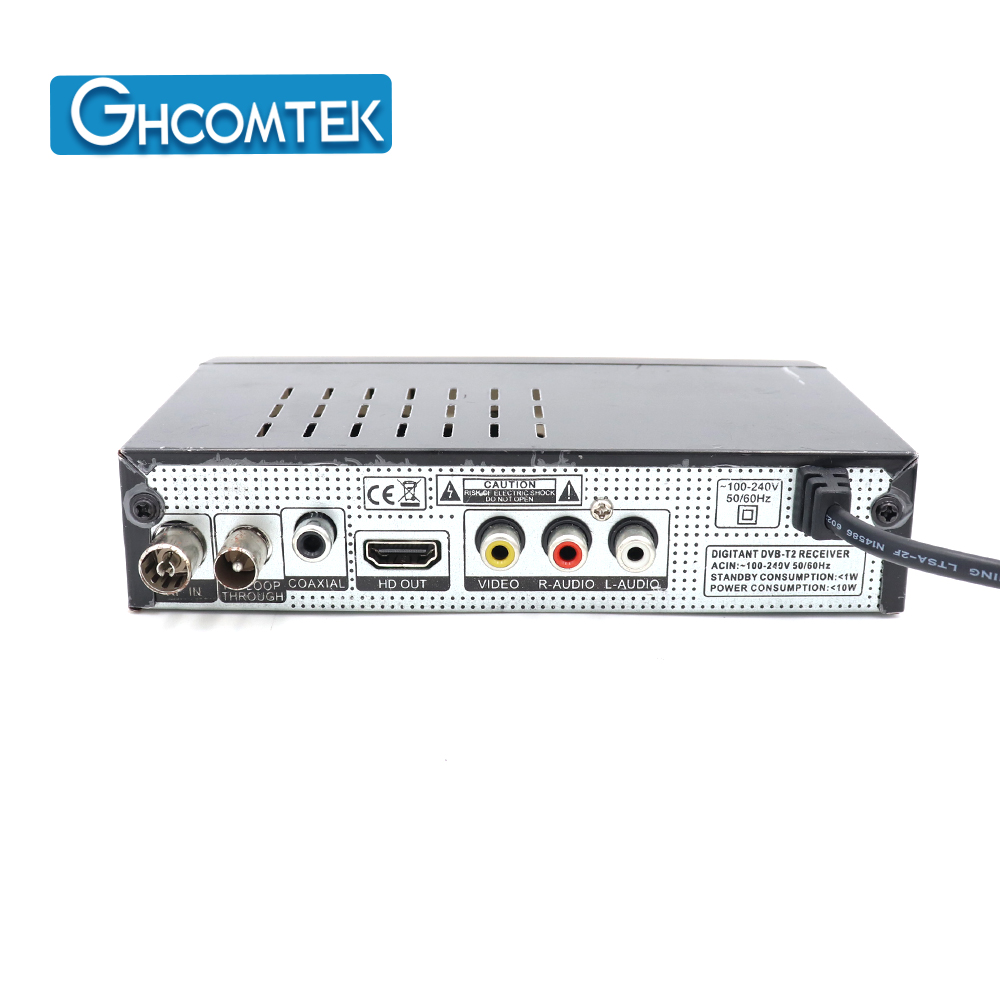

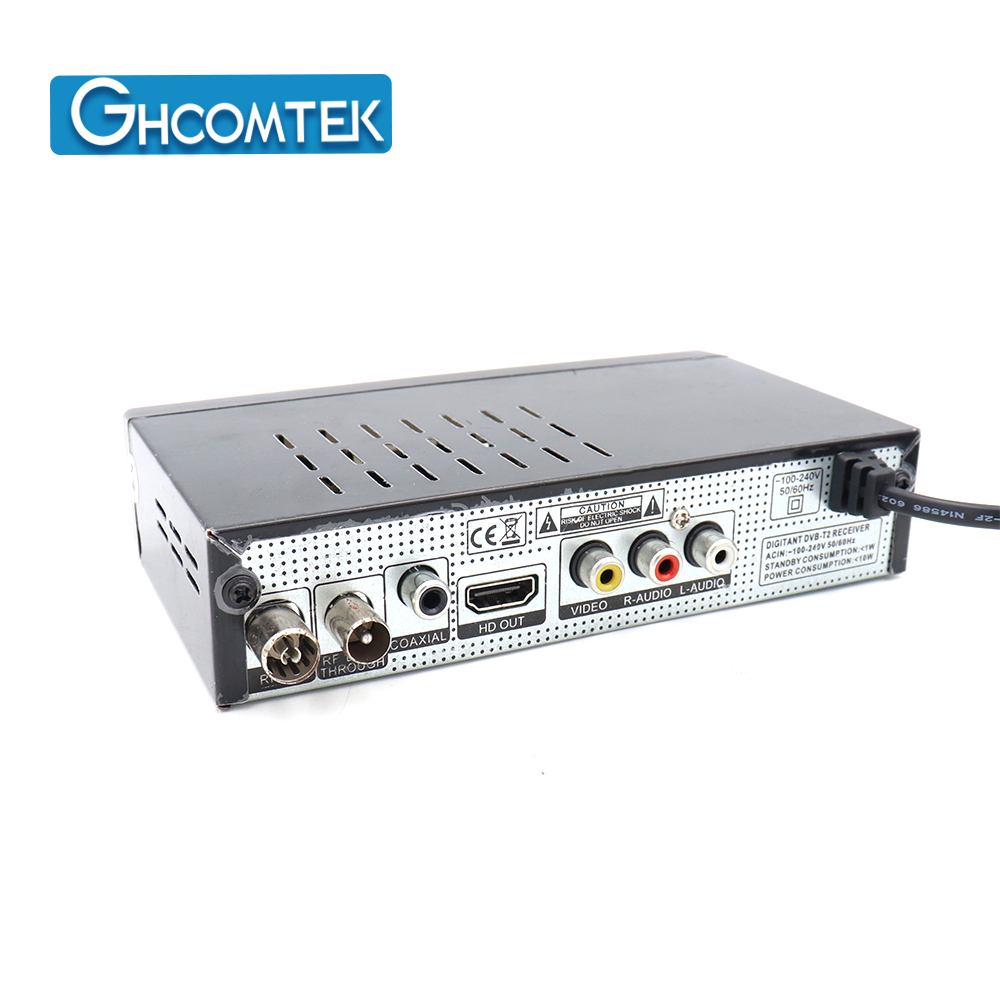

Output Port

Coaxial output

HDMI 1.3

RCA Output

Other Port

USB2.0

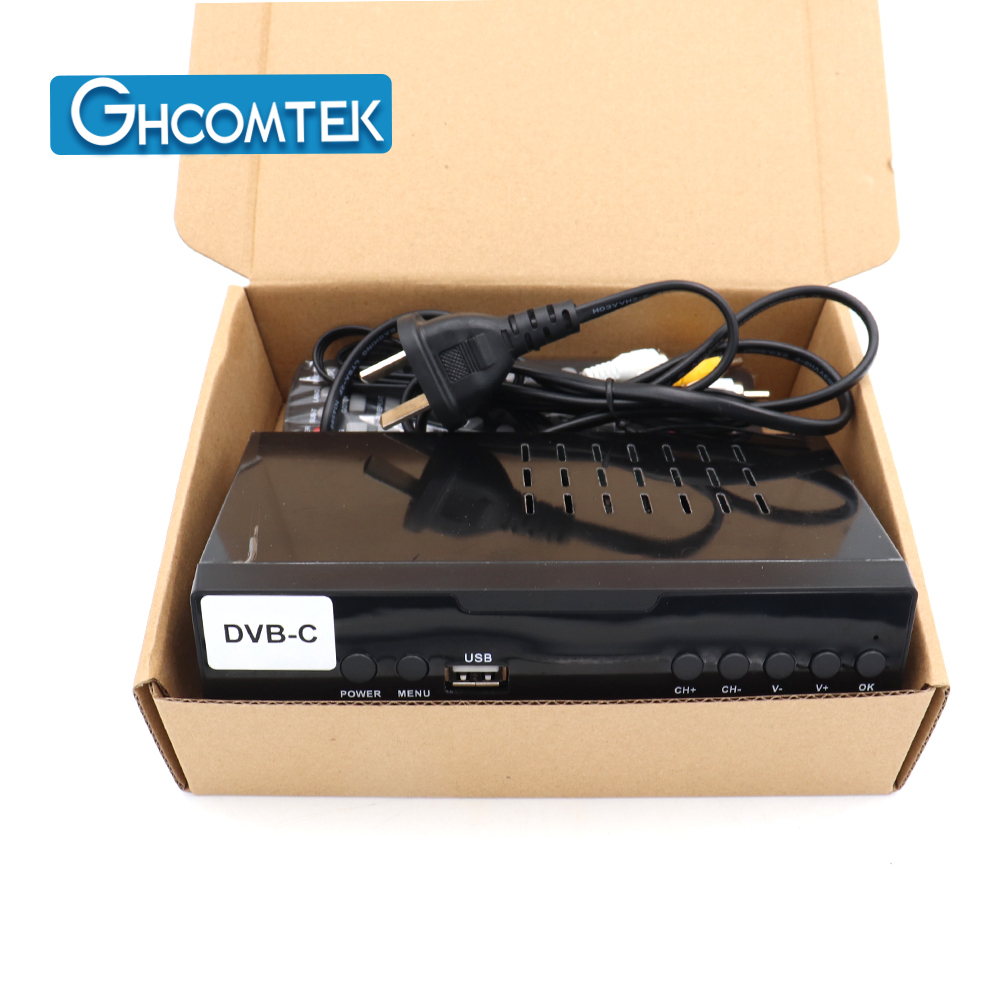

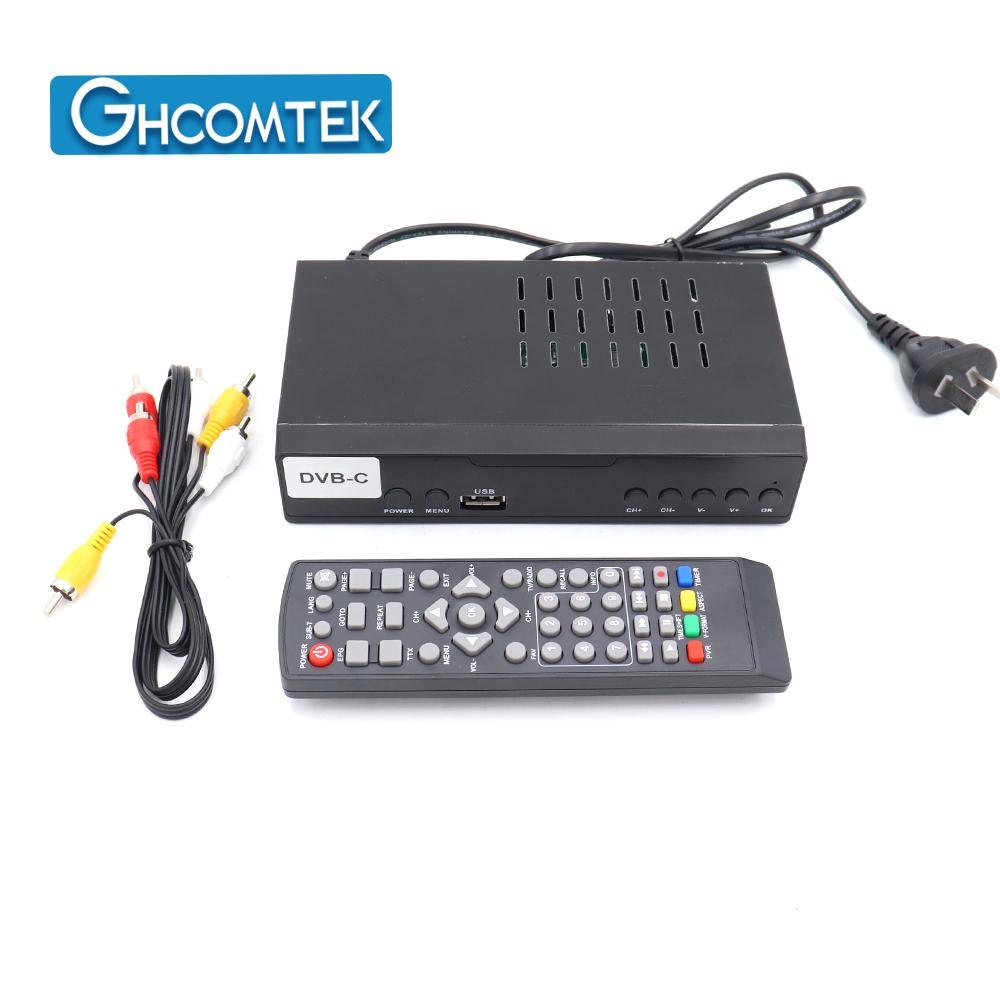

Accessories

gift   box

AV   cable optional

HDMI   cable

IR   remote control

User   Manual

Machine Size

185MM*155MM*58MM

Carton Size(mm)

390*300*310MM

QTY/CTN (pcs)

20   pcs

Carton weight(KGS)

12kgs
