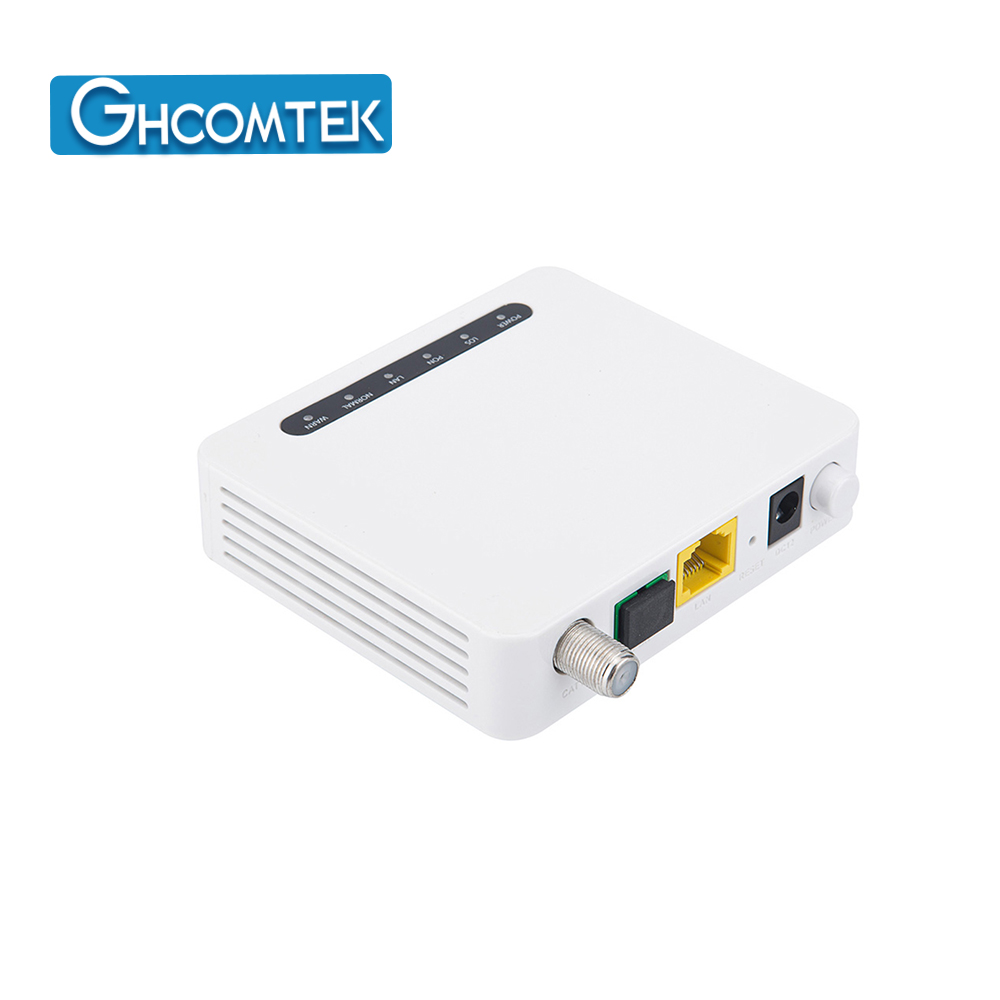

Specification
l Supports Dual Mode (can access GPON/EPON OLT).
l Supports SFU and HGU of EPON CTC 3.0 standard
l Supports GPON G.984/G.988 standards and IEEE802.3ah.
l Support CATV interface for Video Service and remote control by Major OLT
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
l Support port mode of vlan configuration
l Support LAN IP and DHCP Server configuration
l Support TR069 Remote Configuration and maintenance
l Support Route PPPOE/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6 dual stack
l Support IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy
l Compatible with popular OLT(HW, ZTE, FiberHome,)
Specification:
PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
LAN interface | 1x10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
CATV Interface | RF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm)
|
LED | 6LED, For Status of POWER, LOS, PON, LAN, NORMAL, WARN |
Push-Button | 2, for Function of Power on/off, Reset, |
Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1A |
Power Consumption | <3W |
Net Weight | <0.2kg |
Panel lights and Introduction
Pilot Lamp | Status | Description |
POWER | On | The device is powered up. |
Off | The device is powered down. |
LOS | Blink | The device doses not receive optical signals. |
Off | The device has received optical signal. |
PON | On | The device has registered to the PON system. |
Blink | The device is registering the PON system. |
Off | The device registration is incorrect. |
LAN | On | Port is connected properly (LINK). |
Blink | Port is sending or/and receiving data (ACT). |
| Blink | Port is sending or/and receiving data (ACT). |
Off | Port connection exception or not connected. |
NORMAL | On | Input optical power is between -15dbm and 2dBm |
Off | Input optical power is higher than 3dbm or lower than -15dBm |
WARN | On | Input optical power is higher than 2dBm or lower than -15dBm |
Off | Input optical power is between -15dBm and 2dBm |
