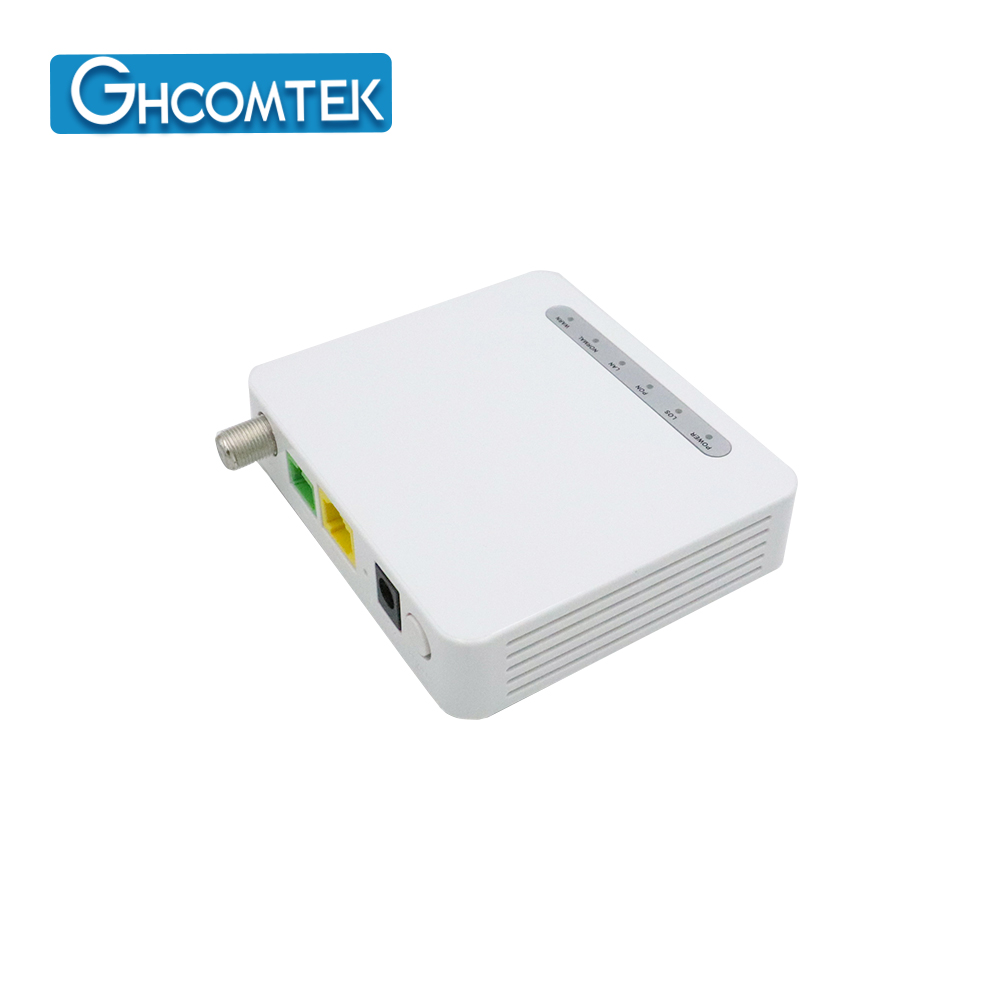

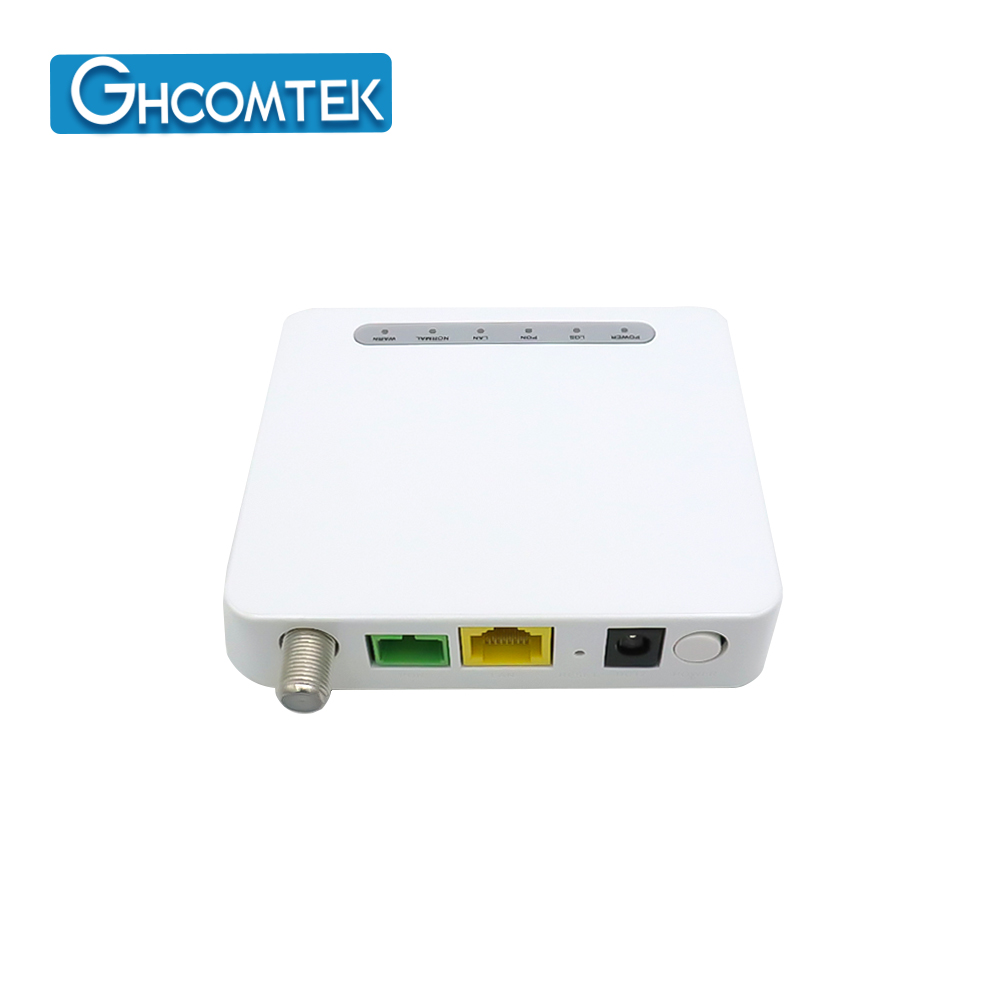

PON   interface

1 G/EPON   port(EPON PX20+ and GPON Class B+)

Upstream:   1310nm; Downstream: 1490nm

SC/UPC   connector

Receiving   sensitivity: ≤-28dBm

Transmitting   optical power: 0~+4dBm

Transmission   distance: 20KM

LAN   interface

1x10/100/1000Mbps   auto adaptive Ethernet interfaces. Full/Half, RJ45 connector

CATV Interface

RF,   optical power : +2~-15dBm

Optical   reflection loss: ≥45dB

Optical   receiving wavelength: 1550±10nm

RF   frequency range: 47~1000MHz,  RF output impedance: 75Ω

RF   output level: ≥ 80dBuV（-7dBm optical input）

AGC   range: +2~-7dBm/-4~-13dBm/-5~-14dBm

MER: ≥32dB(-14dBm   optical input), ＞35(-10dBm)

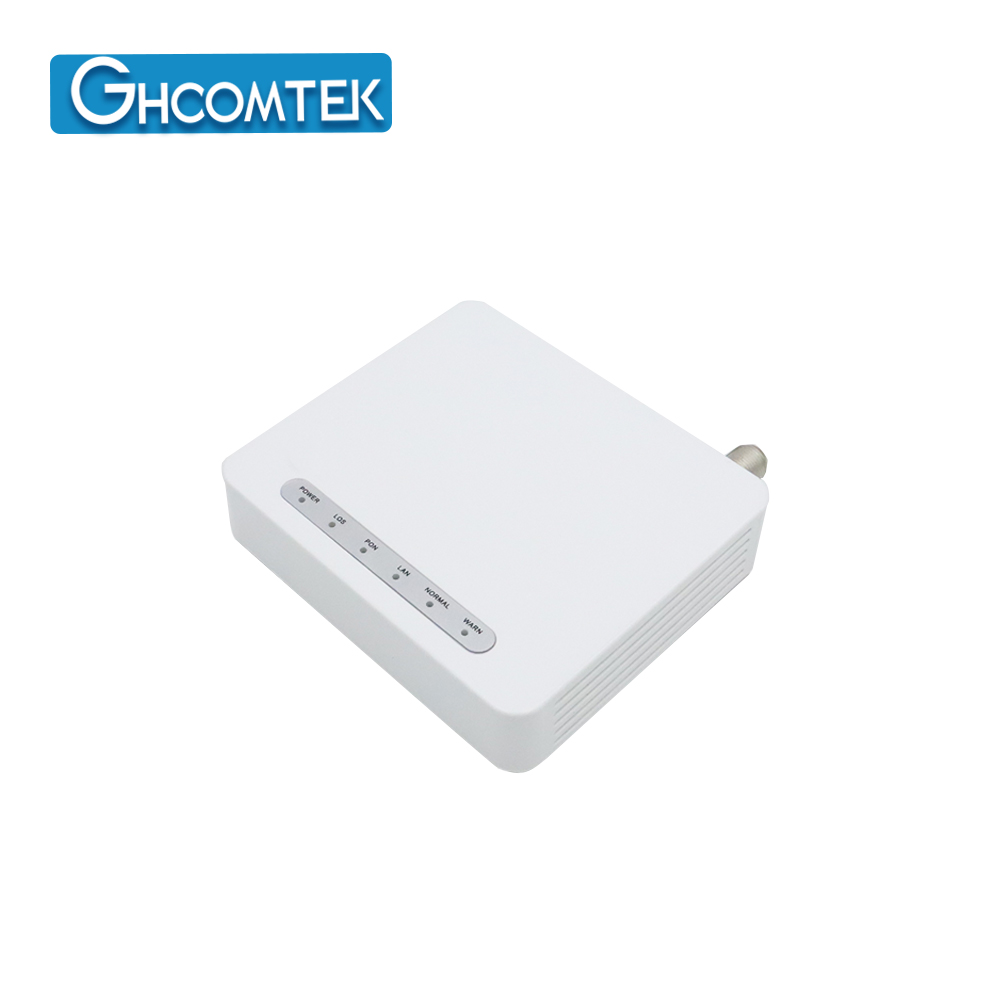

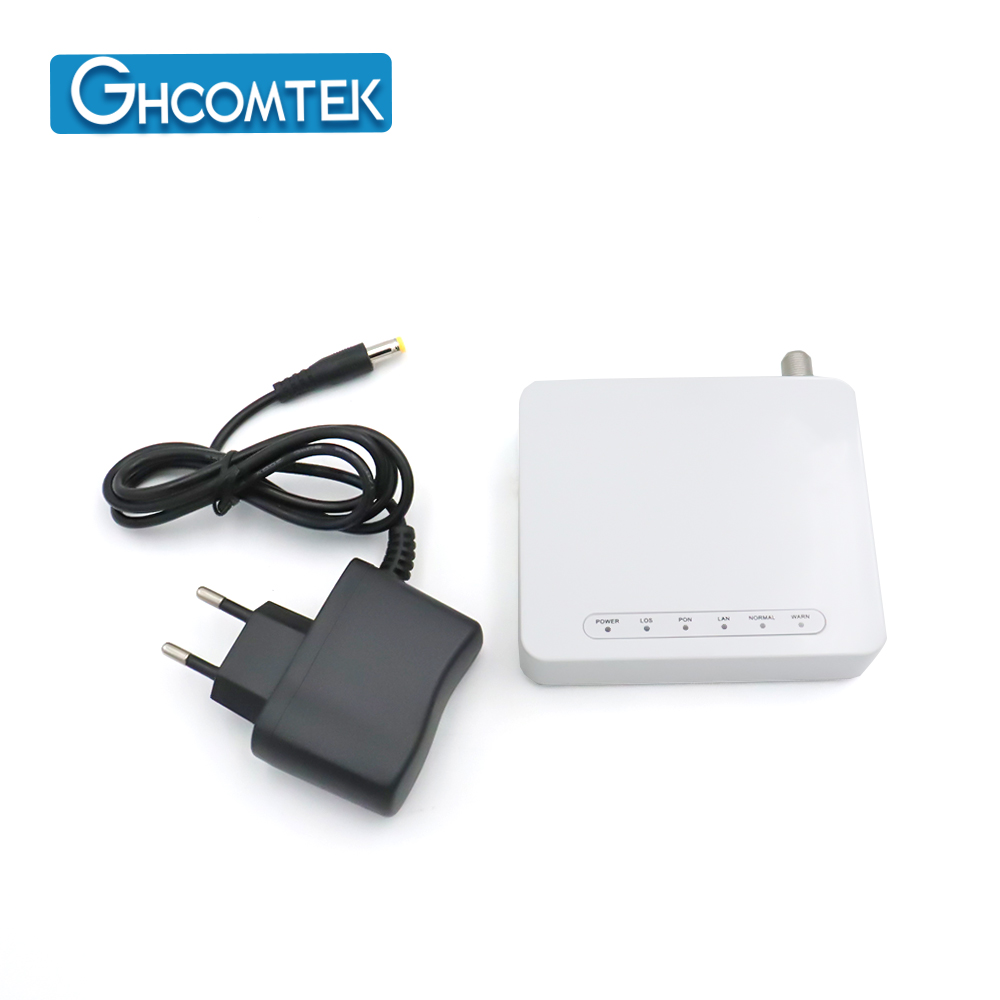

LED

6LED,   For Status of POWER, LOS, PON, LAN,  NORMAL, WARN

Push-Button

2, for   Function of Power on/off, Reset,

Operating   condition

Temperature   : 0℃～+50℃

Humidity   :10%～90%（non-condensing）

Storing   Condition

Temperature   : -40℃～+60℃

Humidity   :10%～90%（non-condensing）

Power   supply

DC   12V/1A

Power   Consumption

<3W

Net   Weight

<0.2kg

POWER

On

The device is powered up.

Off

The device is powered down.

LOS

Blink

The device doses not receive   optical signals.

Off

The device has received   optical signal.

PON

On

The device has registered to   the PON system.

Blink

The device is registering the   PON system.

Off

The device registration is   incorrect.

LAN

On

Port is connected properly   (LINK).

Blink

Port is sending or/and   receiving data (ACT).

Off

Port connection exception or   not connected.

NORMAL

On

Input optical power is   between -15dbm and 2dBm

Off

Input optical power is higher   than 3dbm or lower than -15dBm

WARN

On

Input optical power is higher   than 2dBm or lower than -15dBm

Off

Input optical power is   between -15dBm and 2dBm
