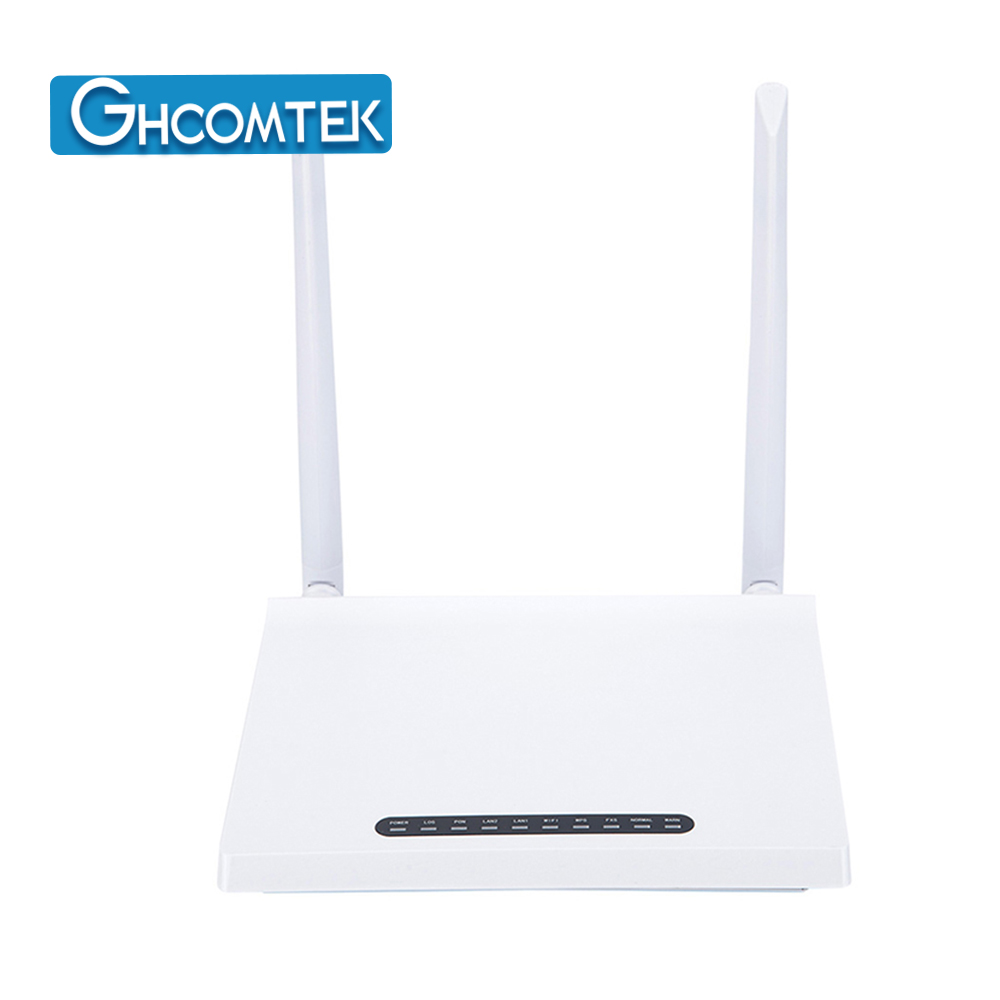

Specification
u Supports Dual Mode (can access GPON/EPON OLT).
u Supports GPON G.984/G.988 standards
u Support CATV interface for Video Service and remote control by Major OLT
u Support 802.11n WIFI (2x2 MIMO) function
u Support NAT, Firewall function.
u Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
u Support port mode of VLAN configuration
u Support LAN IP and DHCP Server configuration
u Support TR069 Remote Configuration and maintenance
u Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode
u Support IPv4/IPv6 dual stack
u Support IGMP transparent/snooping/proxy
u In compliant with IEEE802.3ah standard
u Compatible with popular OLT (HW, ZTE, FiberHome,VSOL...)
Specification:
Technical Item | Details |
PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+5dBm Transmission distance: 20KM |
LAN interface | 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
WIFI Interface | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
CATV Interface | RF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
LED | 9 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2、 WORN、 NORMAL(CATV) |
Push-Button | 4, for Function of Power on/off, Reset, WPS, WIFI |
Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1A |
Power Consumption | <6W |
Panel lights and Introduction
Technical Item | Details |
PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+5dBm Transmission distance: 20KM |
LAN interface | 1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
WIFI Interface | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
CATV Interface | RF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
LED | 9 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2、 WORN、 NORMAL(CATV) |
Push-Button | 4, for Function of Power on/off, Reset, WPS, WIFI |
Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1A |
Power Consumption | <6W |
Net Weight | <0.4kg |
