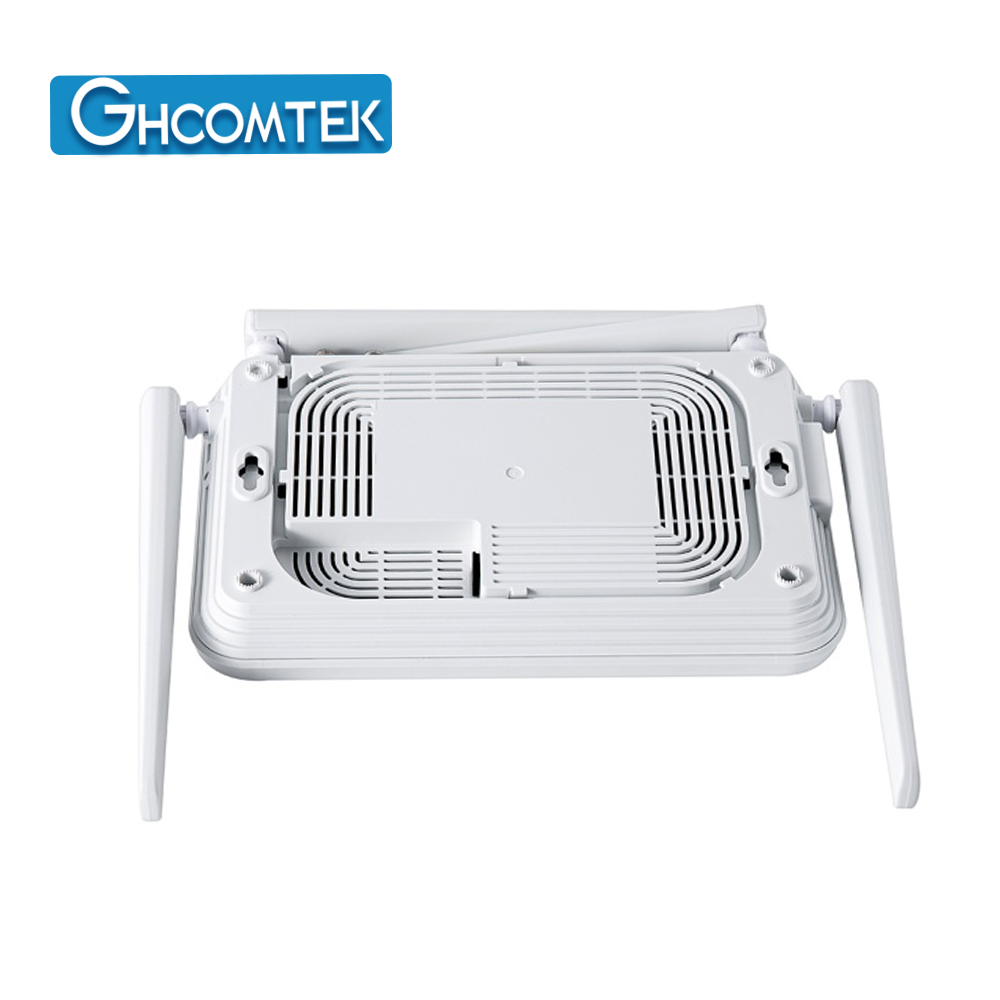

Specification
u Supports Dual Mode (can access GPON/EPON OLT).
u Comply with GPON G.987/G.9807.1 and IEEE 802.3av standards.
u Support CATV interface for Video Service and remote control by Major OLT.
u Support 802.11 b/g/a/n/ac/ax, 802.11ax WIFI6(4x4MIMO) function and Multiple SSID.
u Support NAT, Firewall function.
u Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.
u Support power-off alarm function ,easy for link problem detection.
u Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)，supports OAM/OMCI management.
u Support port mode of VLAN configuration.
u Support LAN IP and DHCP Server configuration.
u Support TR069 Remote Configuration and WEB Management.
u Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.
u Support IPv4/IPv6 dual stack.
u Support IGMP transparent/snooping/proxy.
u Support ACL and SNMP to configure data packet filter flexibly.
u Compatible with popular OLTs(HW, ZTE, FiberHome, VSOL,cdata,HS,samrl,U2000...)，supports OAM/OMCI management.
Specification:
Technical Item | Details |
PON interface | 1 0G GPON Class B+) Upstream: 1270nm; Downstream: 1577nm single mode，SC/APC connector Receiving sensitivity: ≤-29dBm Transmitting optical power: 2~+8dBm Overload optical power: - 8dBm(GPON) Transmission distance: 20KM |
LAN interface | 1x10/100/1000M/2500Mbps auto adaptive Ethernet interfaces Full/Half, 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
USB Interface | Stamdard USB2.0、Stamdard USB3.0 |
WIFI Interface | Compliant with IEEE802.11b/g/n/ac/ax 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 3000Mbps Support: multiple SSID |
CATV Interface | 2xRF, optical power : +2~-15dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥ 80dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
LED | 16 LED,：PWR、LOSPON、INTERNET、LAN1、LAN2、LAN3、LAN4、2.4G,、5G、WPS、USB2.0/USB3.0、 2.5G LAN、Normal 1(CATV1)/Normal 2(CATV2) |
Push-Button | 3, for Function of Power on/off, Reset, WPS |
Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1.5A |
Power Consumption | <18W |
Net Weight | <0.4kg |
Panel lights and Introduction
Pilot Lamp | Status | Description |
WIFI | On | The WIFI interface is up. |
Blink | The WIFI interface is sending or/and receiving data (ACT). |
Off | The WIFI interface is down. |
WPS | Blink | The WIFI interface is securely establishing a connection. |
Off | The WIFI interface does not establish a secure connection. |
INTERNET | On | The light is on when the device business configuration is normal. |
Off | The light does not light up when the device service configuration is blocked. |
PWR | On | The device is powered up. |
Off | The device is powered down. |
LOS | Blink | The device doses not receive optical signals or with low signals. |
Off | The device has received optical signal. |
PON | On | The device has registered to the PON system. |
Blink | The device is registering the PON system. |
Off | The device registration is incorrect. |
LAN1~LAN5 | On | Port (LANx) is connected properly (LINK). |
Blink | Port (LANx) is sending or/and receiving data (ACT). |
Off | Port (LANx) connection exception or not connected. |
USB | On | USB device communication detected |
Off | No USB device detected or communicating |
Normal (CATV) | On | Input optical power is between -15dBm and 2dBm |
Off | Input optical power is higher than 2dBm or lower than -15dBm |
