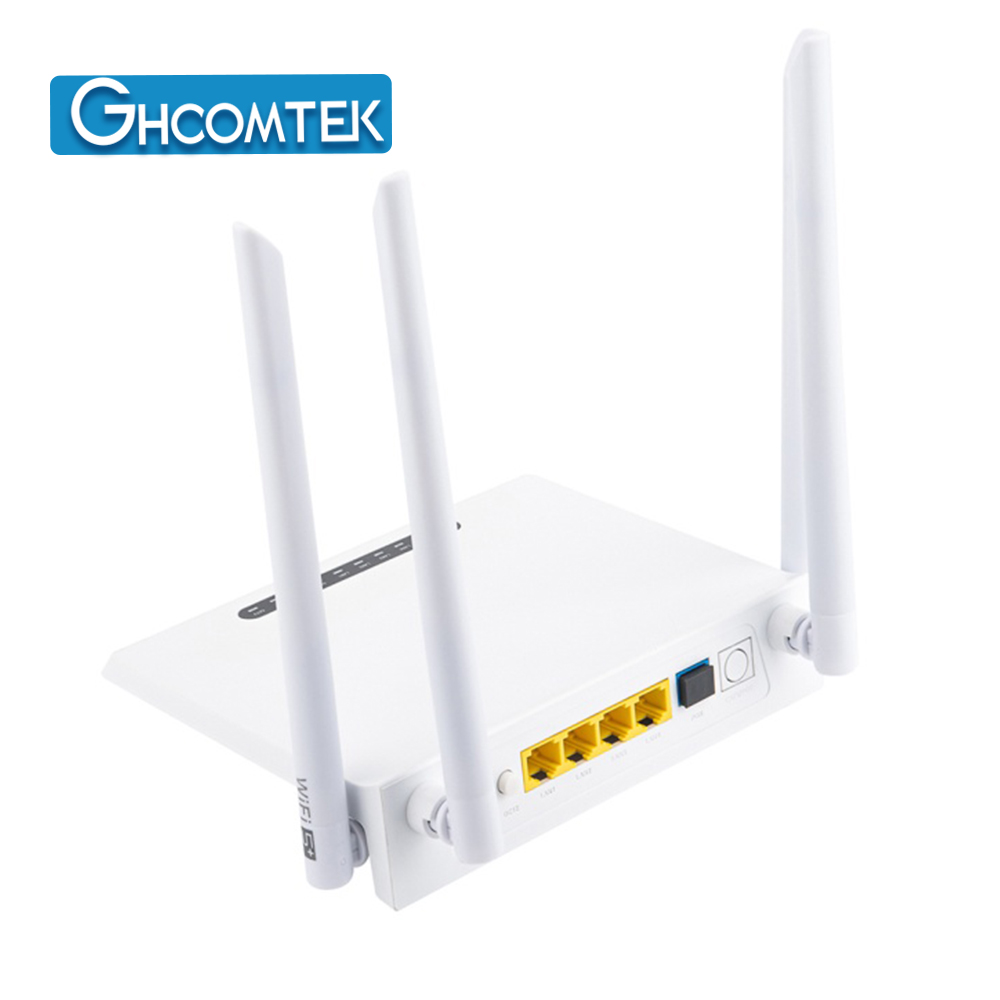

Specification
u Supports GPON and EPON auto detection
u Support Rogue ONT detection
u Support Route mode PPPOE/DHCP/Static IP and Bridge mixed mode
u Support NAT, Firewall function.
u Support Internet, IPTV services automatically bound to ONT ports
u Support Virtual server, DMZ, and DDNS, UPNP
u Support Filtering based on MAC/IP/URL
u Support 802.11 b/g/n, 802.11ac WIFI(4x4 MIMO) function and Multiple SSID
u Support Flow & Storm Control , Loop Detection and Port Forwarding
u Support IPv4/IPv6 dual stack and DS-Lite
u Support IGMP transparent/snooping/proxy
u Support TR069 Remote Configuration and maintenance
u Integrated OAM remote configuration and maintenance function
u Compatible with popular OLT (HW, ZTE, FiberHome,VSOL...)
Specification:
Technical Item | Details |
PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
LAN interface | 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector |
WIFI Interface | Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 4*4MIMO, 5dBi external antenna, rate up to 867Mbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
LED | 9 LED, For Status of PWR、LOS、PON、LAN1、LAN2、LAN3、LAN4、2.4G、5.8G |
Push-Button | 3 button for Function of Power on/off, Reset, WPS |
Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1A |
Power Consumption | <6W |
Net Weight | <0.3kg |
Panel lights and Introduction
PilotLamp | Status | Description |
2.4G | On | 2.4G WIFI up |
Blink | 2.4G WIFI is sending or/and receiving data (ACT). |
Off | 2.4G WIFI down |
5.8G | On | 5G WIFI up |
Blink | 5G WIFI is sending or/and receiving data (ACT). |
Off | 5G WIFI down |
PWR | On | The device is powered up. |
Off | The device is powered down. |
LOS | Blink | The device doses not receive optical signals or with low signals. |
|
|
| Off | The device has received optical signal. |
PON | On | The device has registered to the PON system. |
Blink | The device is registering the PON system. |
Off | The device registration is incorrect. |
LAN1~LAN4 | On | Port (LANx) is connected properly (LINK). |
Blink | Port (LANx) is sending or/and receiving data (ACT). |
Off | Port (LANx) connection exception or not connected. |
