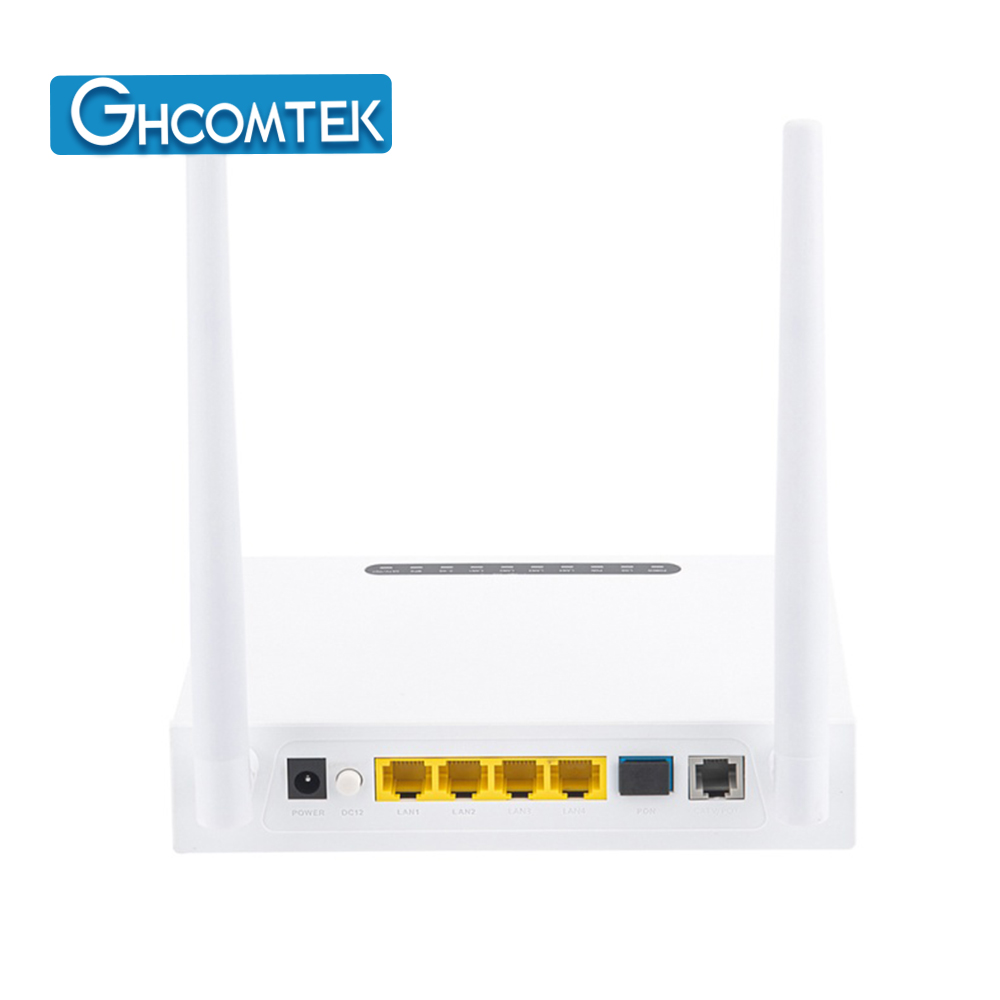

Specification
u Supports Dual Mode (can access GPON/EPON OLT).
u Supports GPON G.984/G.988 standards
u Support SIP Protocol for VoIP Service
u Integrated line testing compliant with GR-909 on POTs
u Support 802.11n WIFI (2x2 MIMO) function
u Support NAT, Firewall function.
u Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
u Support port mode of VLAN configuration
u Support LAN IP and DHCP Server configuration
u Support TR069 Remote Configuration and WEB Management
u Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode
u Support IPv4/IPv6 dual stack
u Support IGMP transparent/snooping/proxy
u In compliant with IEEE802.3ah standard
u Compatible with popular OLT(HW, ZTE, FiberHome...)
Specification:
Technical Item | Details |
PON interface | 1 E/GPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0.5~+4dBm Transmission distance: 20KM |
LAN interface | 1x10/100/1000Mbps and 3x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
WIFI Interface | Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
POTS Port | RJ11 Max 1km distance Balanced Ring, 50V RMS |
LED | 10 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN4、 FXS |
Push-Button | 3, for Function of Power on/off, Reset, WPS |
Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1A |
Power Consumption | <6W |
Panel lights and Introduction
Pilot Lamp | Status | Description |
WIFI | On | The WIFI interface is up. |
Blink | The WIFI interface is sending or/and receiving data (ACT). |
Off | The WIFI interface is down. |
WPS | Blink | The WIFI interface is securely establishing a connection. |
Off | The WIFI interface does not establish a secure connection. |
PWR | On | The device is powered up. |
Off | The device is powered down. |
LOS | Blink | The device doses not receive optical signals or with low signals. |
Off | The device has received optical signal. |
PON | On | The device has registered to the PON system. |
Blink | The device is registering the PON system. |
Off | The device registration is incorrect. |
LAN1~LAN4 | On | Port (LANx) is connected properly (LINK). |
Blink | Port (LANx) is sending or/and receiving data (ACT). |
Off | Port (LANx) connection exception or not connected. |
FXS | On | Telephone has registered to the SIP Server. |
Blink | Telephone has registered and data transmission (ACT). |
Off | Telephone registration is incorrect. |
