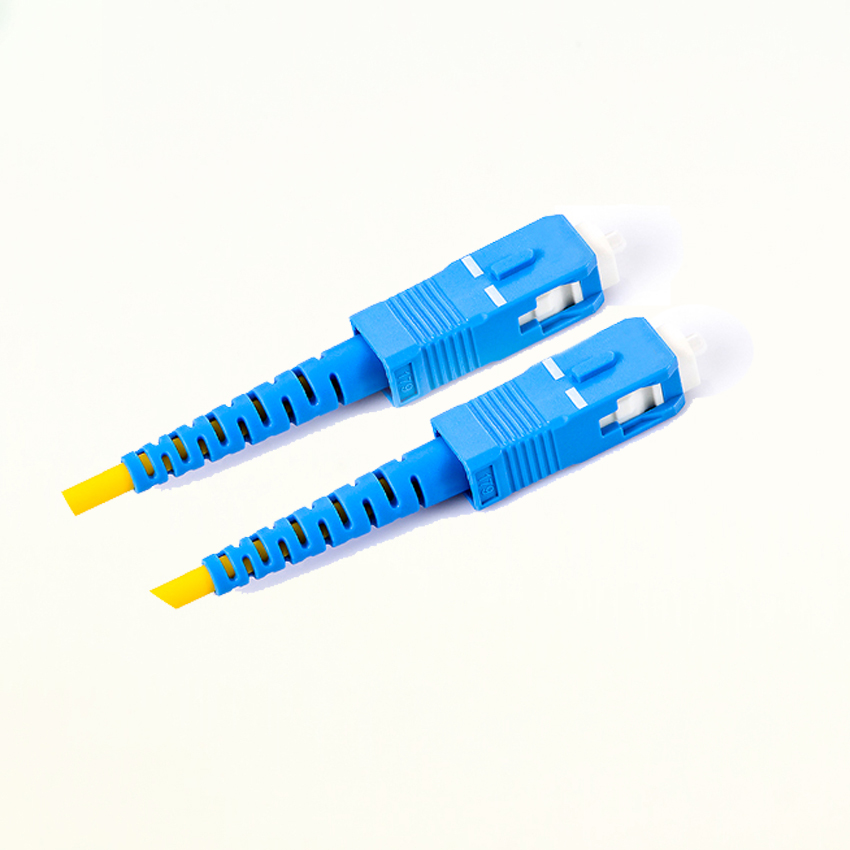

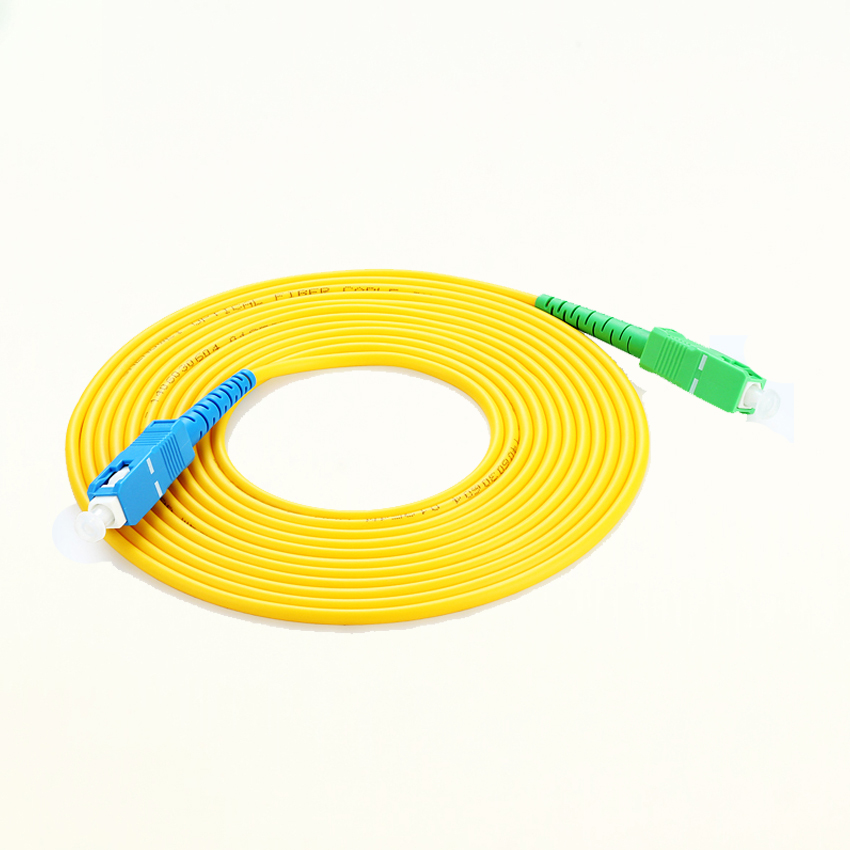

SC Patch Cord/Pigtail

Description

GH's High Performance Patchcords are a range of “best in class” patchcords employing highest grade components, manufacturing processes and testmethods that offer excellent performance for demanding Telecommunications and data centre applications. High Performance Patchcords are used were low loss budgets are essential and may be considered for splice replacement.

Specification

Features / Benefits

Conform to IEC, EIA-TIA, and Telecordia performance requirements
Grade A singlemode connector class applied
Special high accuracy G.652D photonics fibre
End face geometry result data included
RoHS compliant

Applications

Telecommunication networks
High bandwidth 40G & 100G networks
CATV
LAN and WAN
FTTX
Broadband network

Termination Specification

Optical Performance	Single mode	Conformance
IL Max/Master	0.18dB	IEC61300-3-4
Max IL/Random	0.30dB	IEC61300-3-34
Ave/Master	0.18dB	IEC61300-3-4
Ave/Random	0.18dB	IEC61300-3-34
Return Loss	50/60dB	IEC61300-3-6
Mechanical Endurance	500 mating	IEC61300-2-2
Vibration	10-55Hz,0.75 amplitude	IEC61300-2-1
Drop	Drop height 1m,5 drop	IEC61300-2-12
Cable Retention	Magnitude 90N	IEC61300-2-4
Cable Torsion	1.5kg~2.5kg for 2mm	IEC61300-2-5

Cable Specification

Characteristic	Units	Simplex
Strength member		LSZH
Cable Material		Aramid
Crush	N	1000
Operating Temperature	?	-20 to 60
Secondary Buffer Diameter(2.0mm,2.4mm,3.0mm)	Um	900±50
Secondary Buffer Diameter(1.6mm and 1.8mm)	um	600±50
Color		SM-Yellow MM-Orange(OM1,OM2) MM-Aqua(OM3,OM4)

Fiber Specification

Characteristic	Unit	Single mode
Cladding Diameter	um	125±0.3
Core/Cladding Concentricity Error	um	≤0.3
Cladding Non Circularity	%	≤0.7
Polarization Mode Dispersion(PMD)	Ps(km) ½	9.2±0.4
Mode Field Diameter(mfd)@1310nm	um	9.2±0.4
Mode Field Diameter(mfd)@1550nm	um	10.42±0.5
