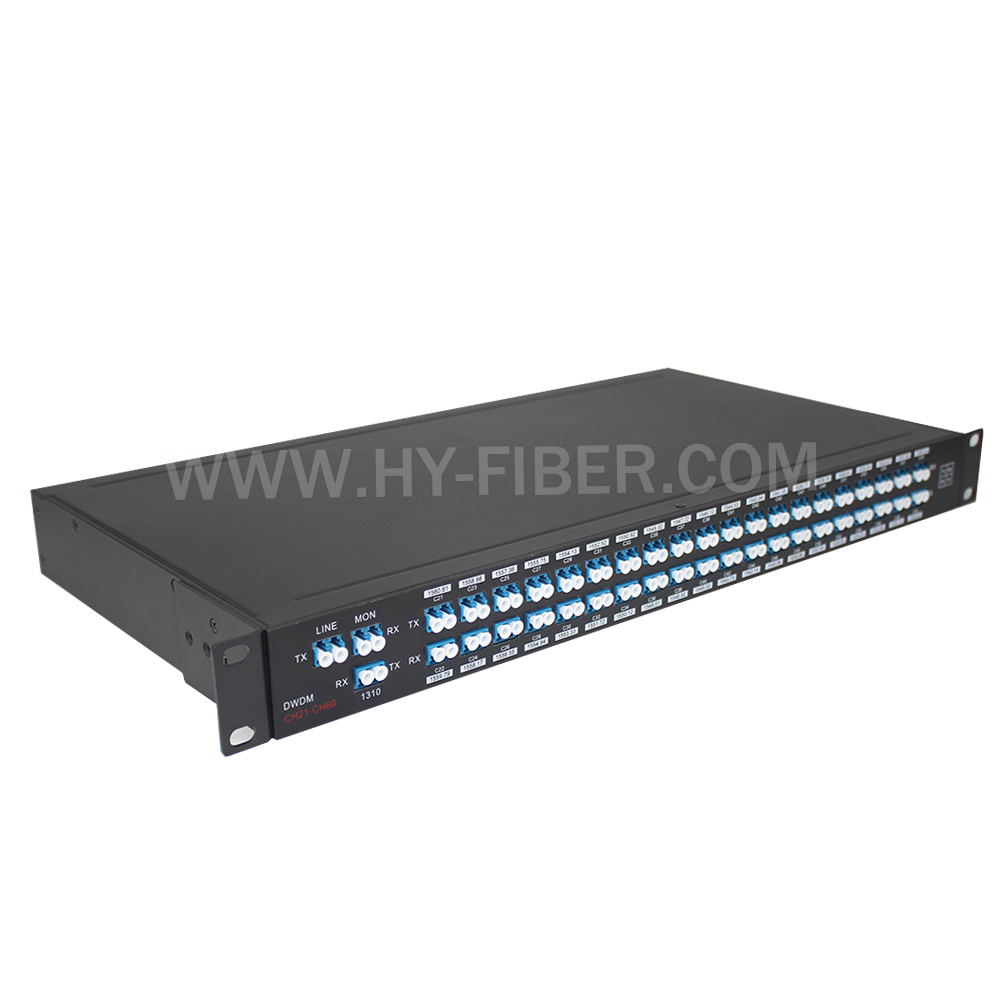

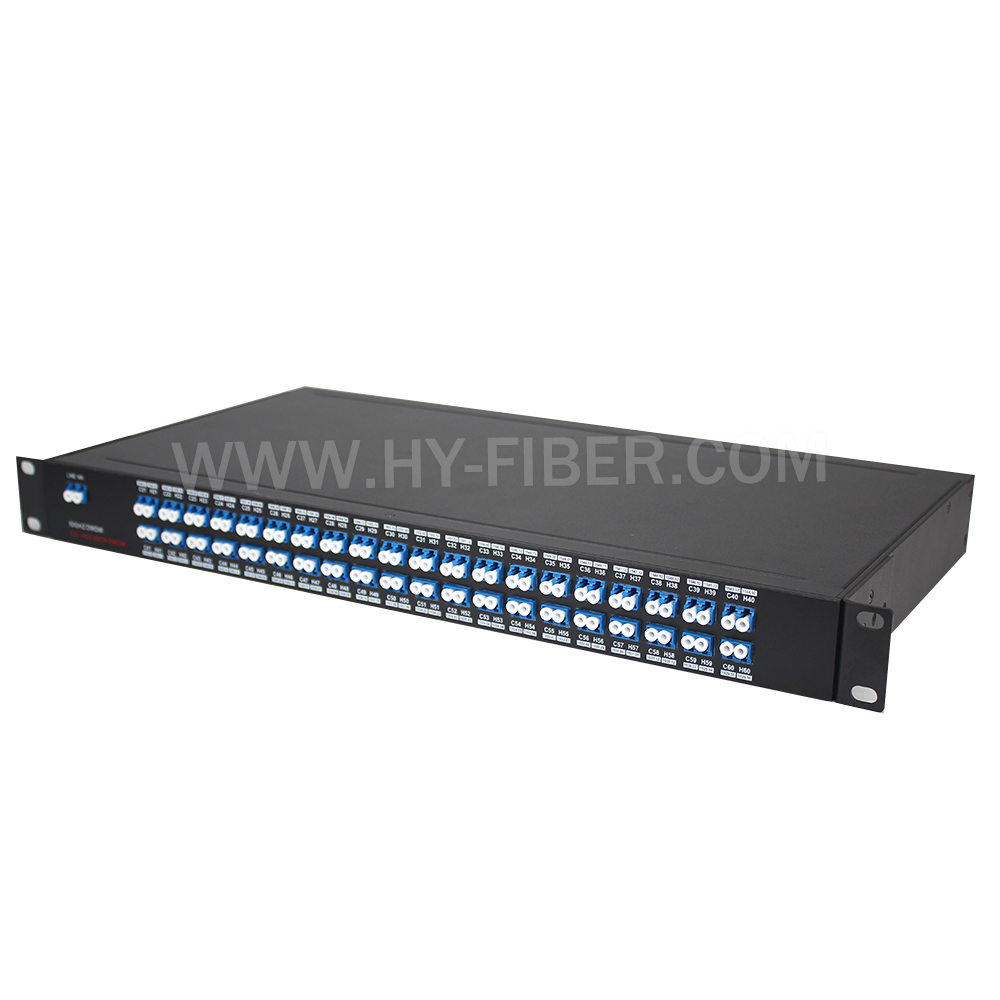

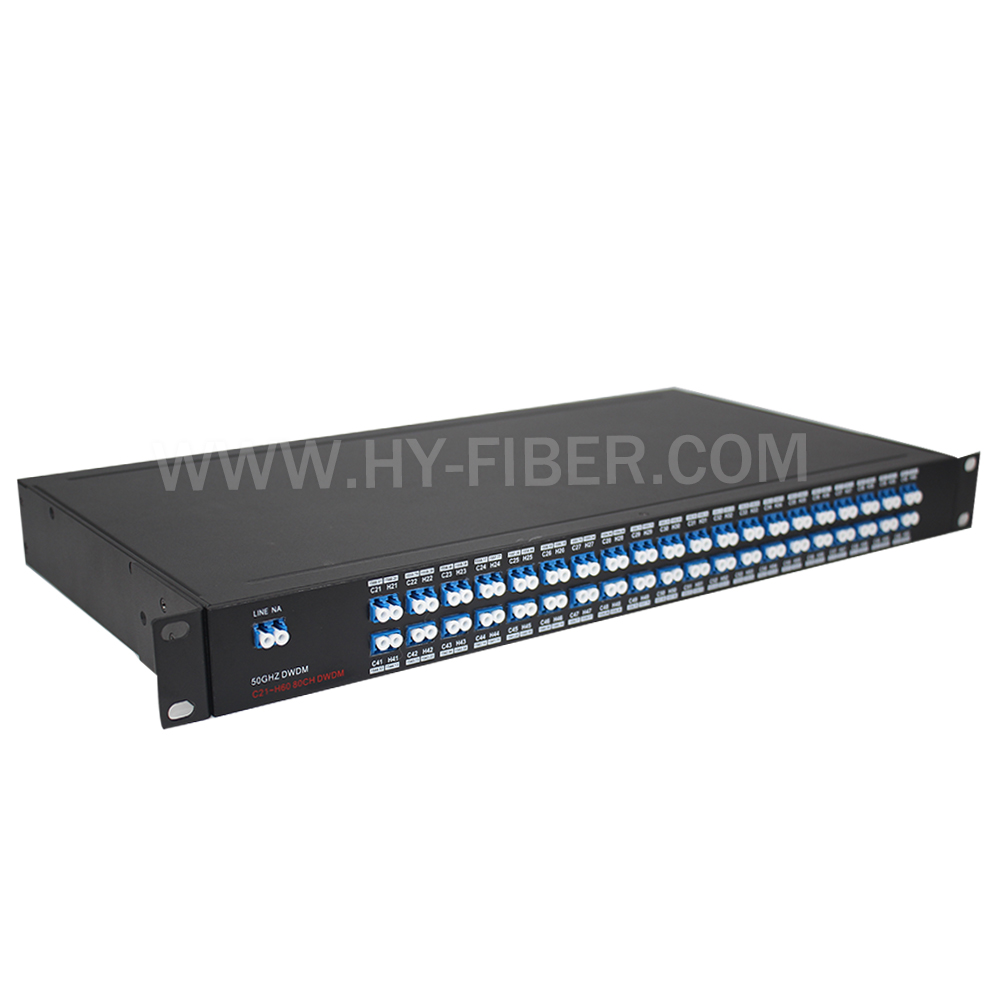

Mux/Demux Single or Dual Fiber AAWG DWDM With 1310nm and MON


Description

With the rapid development of industry informatization, the demand in long distance and large capacity bandwidth increased rapidly, resulting in the rapid growth in the traffic of the access layer, metro area layer and backbone network. The dependence on the bandwidth rent or optical fiber direct-connection already can not meet the needs of clients in the industry.

Therefore, based on the existing service requirements, in face of the future network development,GHCOMTEK launched DWDM series optical transmission system, which is usually used for long-haul transmission where wavelengths are packed tightly together over the C-band, up to 48 wavelengths in 100GHz grid(0.8nm) and 96 wavelengths in 50GHz grid(0.4nm). It's protocol and rate transparent supporting such applications as 1G/10G Ethernet, SDH/SONET and 8/4/2/1G Fiber Channel across the same fiber link.



That provides a reliable, flexible and efficient high bandwidth carryingsolution for the operators, Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.






Specification

Parameter

Unit

Specifications

ITU   Band

GHz

ITU, C-band

Channel   Spacing

GHz

100

Number   of channels


40CH

40CH+1310

40CH+1310+MON

Wavelength   accuracy

Max

nm

0.05

Insertion   Loss

Flat-Top   AAWG

Max

dB

5.0

5.5

5.5

-1dB   passband

Min

nm

0.3

-3dB   passband

Min

nm

0.5

Isolation

Adjacent   Channel

Min

dB

25

Non-adjacent   Channel

Min

dB

30

Total   Crosstalk

Min

dB

23

Ripple   in Passband

Max

dB

0.75

Polarization   Dependent Loss

Max

dB

0.5

Uniformity

Max

dB

1.5

Directivity

Min

dB

50

Return   Loss

Min

dB

45

Polarization   Mode Dispersion

Max

ps

0.5

Power   Handling

Max

mW

300

Fiber   Type


Corning SMF-28 / SMF-28e or customize

Operating   Temperature

°C

5~70

Storage   Temperature

°C

-40~85

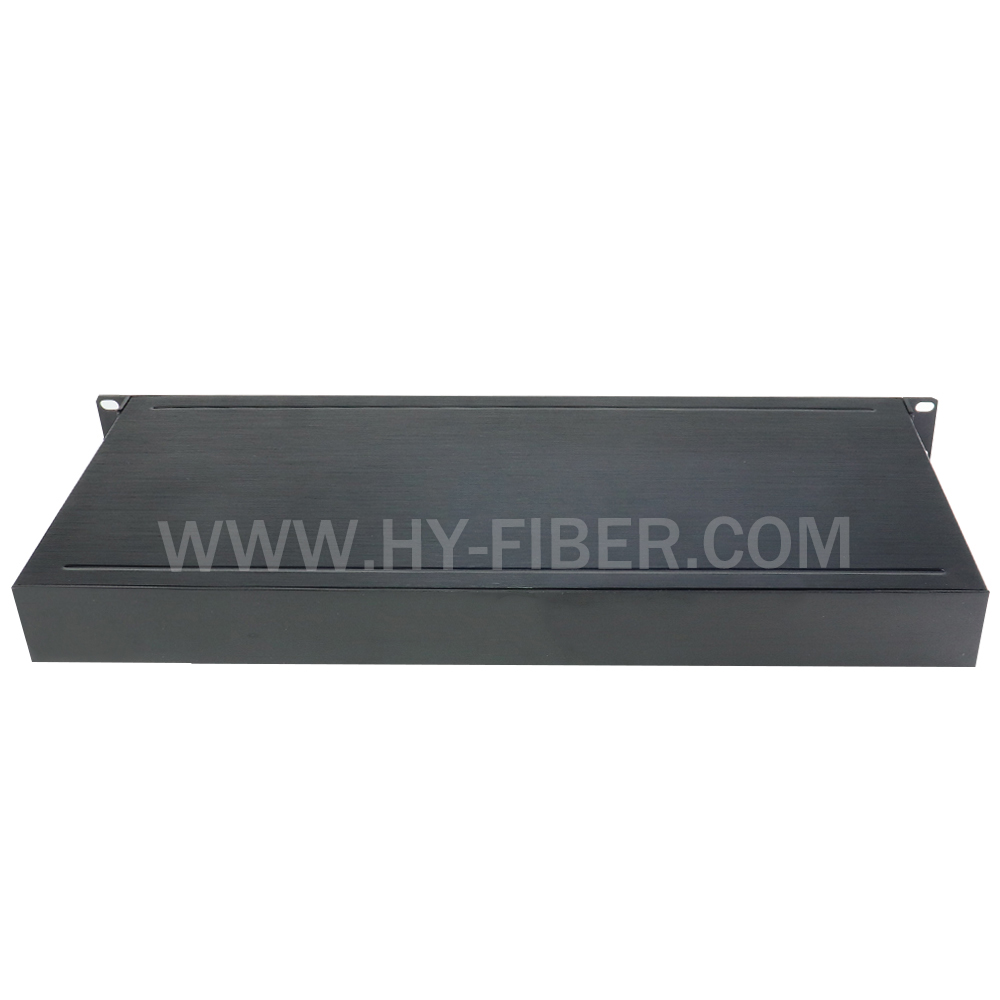

19’’   Rack

Weight


1.7kg

Dimensions

mm

440*230*44MM
