Specification
Characteristics:

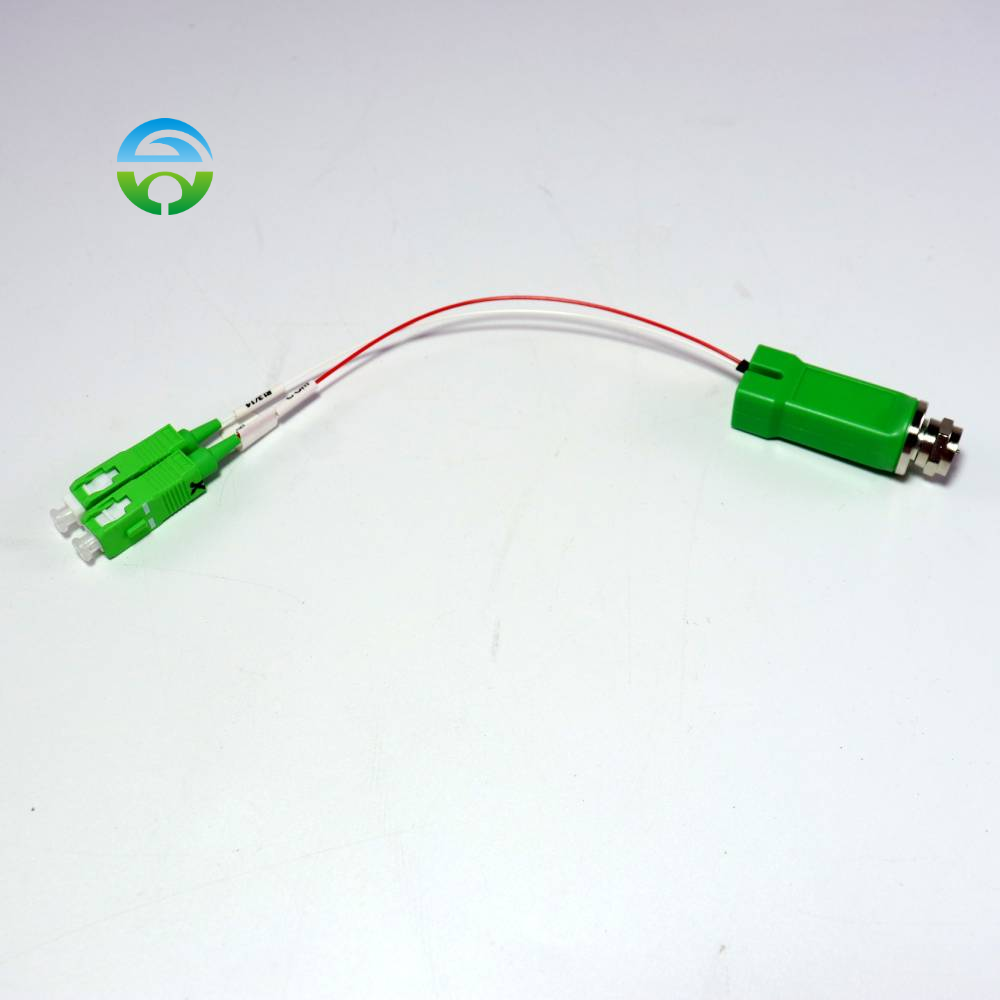

Using high quality E -O photoelectric conversion and GaAs amplifier integrated optical receiving module.
Built-in WDM can realize single-fiber home (1490/1310/1550nm) tri-network convergence applications.
Built-in optical isolator, input to achieve 1490/1310nm isolation.
SC/APC or FC/APC or custom optical connectors, metric or imperial RF interfaces.
RF channel all GaAs low noise amplifier device.
High quality aluminum alloy shell, good anti-interference and shielding.
Output voltage: no power supply
Technical Spec.
| Input optical power | 2dBm~-10dBm | Receive Wavelength | 1550nm |
| Optical Return Loss | ＞45 dB | Bypass Wavelength | 1310/1490nm |
| Optical connector form | FC/APC or SC/APC or FC/PC or SC/PC | Responsively | ≥0.9A/W |
| Frequency Range | 47~1000MHz | Optical Fiber Type | Single Mode |
| In-band flatness | ±1dB@45~1006MHz | CSO | ≥62dB |
| RF output reflection | ≥16dB@ 47~550MH ; ≥14dB@1006MHz | CNR | ≥51dB |
| Output level | 62dBuV@0dBm input power | CTB | ≥65dB |
| RF output impedance | 75Ω | Operating temperature | -20℃ ~+55℃ |
Note: Test conditions: 59 PAL-D analog television channel signals at 550 MHz frequency range, in the range of 550 MHz to 862 MHz,@RF source is 80dBuV, under specified link loss conditions.
The digital modulation signal is transmitted within the rate range, the level of the digital modulation signal (within the 8 MHz bandwidth) is 10 dB lower than the carrier level of the analog signal, and the optical receiver input optical power is 0 dBm, measuring C/N, CTB, CSO.
