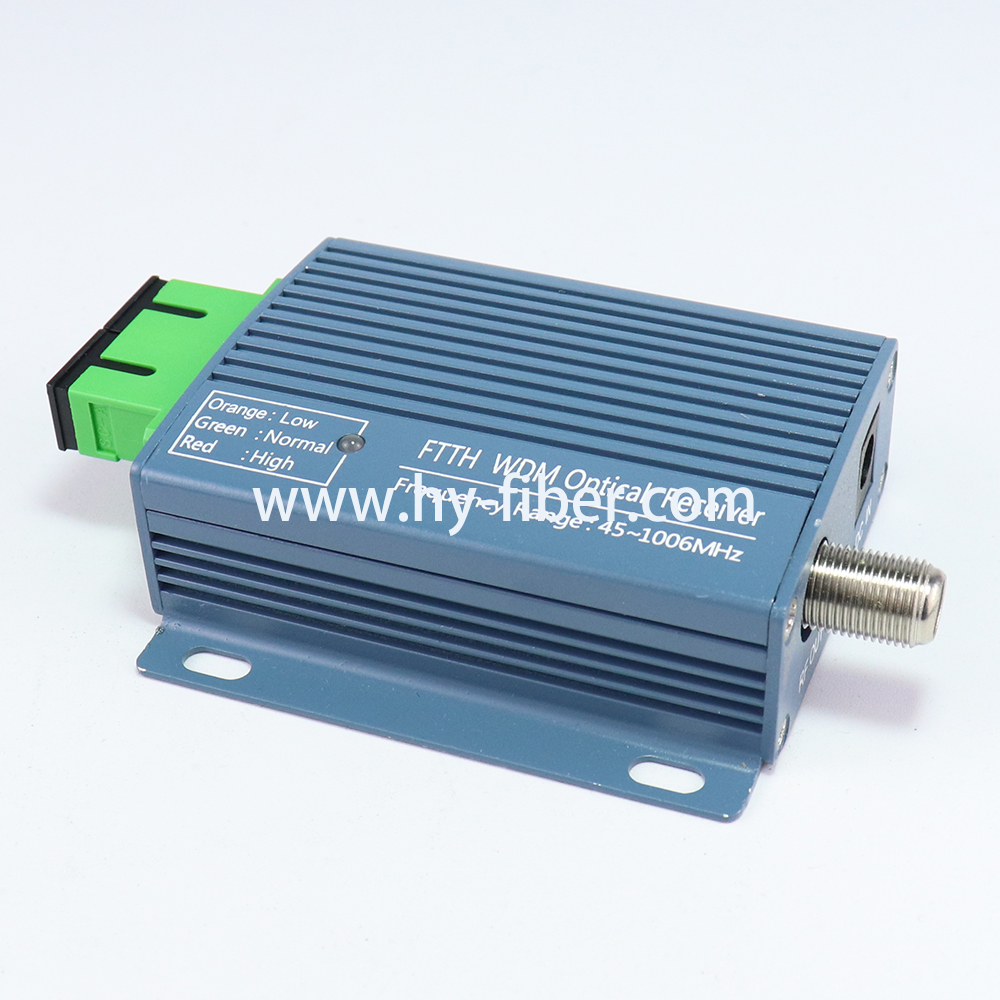

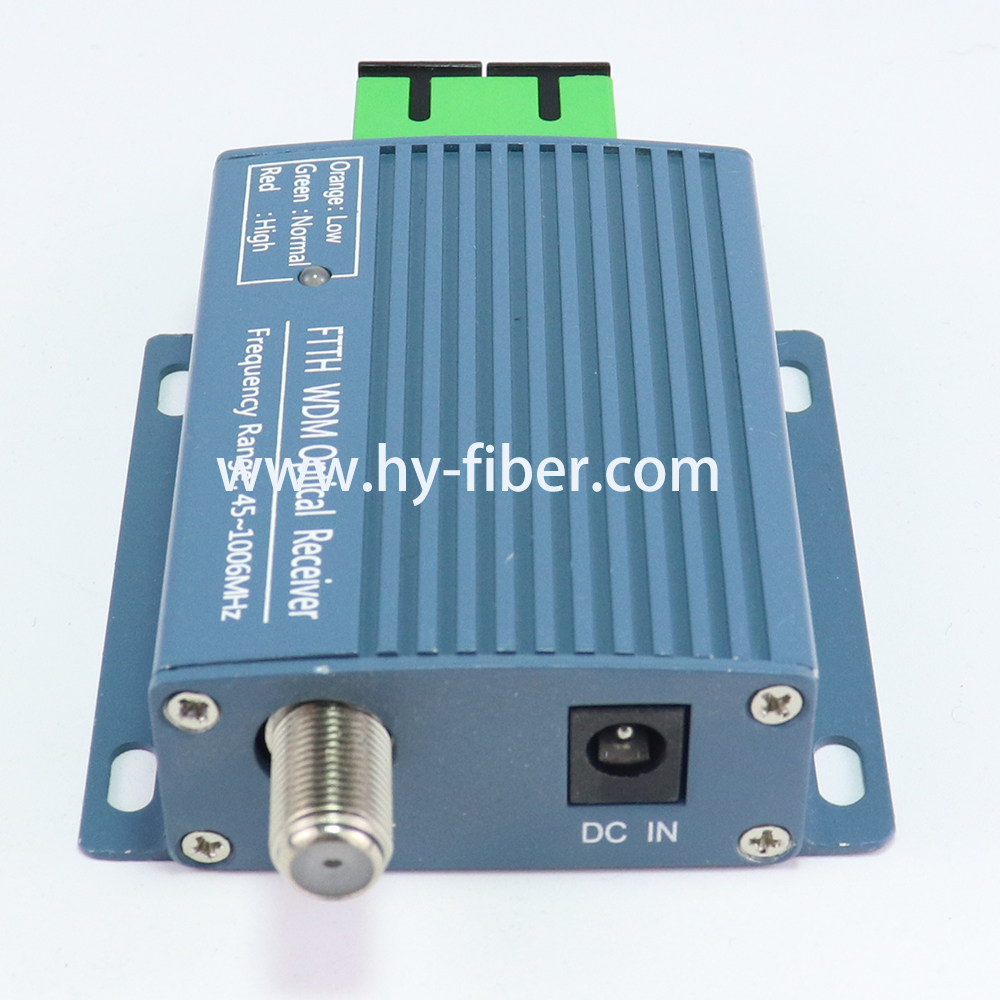

    HY-21-R36 FTTH CATV WDM Optical Receiver

    HY-21-R36 FTTH CATV WDM Optical Receiver


    Description

    HY-21-R36 optical node is a compact in-door optical node especially designs for FTTH application. It designs with a single MMIC chip, compared with the two-stage amplifier structure, it has the characteristics of high integration, high performance, excellent anti-jamming performance. In addition, it can achieve best linearity and low noise figure with lowest power consumption by power saving sill. It also achieves digital AGC control skill by I2C interface. It provides a high-quality and high-performance FTTH network solution for cable TV operators.






    Specification


    Feature:

     Single MMIC chip solution;

     RF bandwidth : 45 ~ 1006 MHz;

     Output level: > 80dBuV (@AGC(-9 ~ 0 dBm) power input);

     wide optical power input range: -18 ~ +2 dBm;

     Digital AGC control and range: -9 ~ 0 dBm;

     MER: >39.2dB @>-9dBm,RFsource ≥ 80dBuV

     CNR: >57dB @>-11dBm,RFsource ≥90dBuV



    DescriptionValueConditions / Notes
    Optical Specifications (Forward Path)
    Operating Wavelength1550nm1540 ~ 1560
    PON Pass Wavelength1310,1490nm(1260 ~ 1360), (1480 ~ 1500)


    Isolation

    		Pass band≥35dBλ = 1550nm
    Reflect band≥20dBλ = 1310nm, λ = 1490nm


    Insert loss

    		Pass band≤0.8dBλ = 1550nm
    Reflect band≤0.6dBλ = 1310nm, λ = 1490nm
    Optical Return Loss≥45dB
    Optical Power Input Range-18 ~ +2dBmRecommended Range: -9 ~ 0
    AGC Range-9 ~ 0dBm
    RF Specifications (Forward Path)
    Bandwidth45 ~ 1006MHz
    Flatness±0.75dB
    RF impedance75Ohm



    Output level

    		>80dBuV@AGC(-9 ~ 0), RFsource = 80 dBuV
    >76dBuV@ -11dBm, RFsource = 80 dBuV
    >70dBuV@ -15dBm, RFsource = 80 dBuV
    Output return Loss16dB   Typical
    Analog TV Parameters
    Test channel59CH(PAL-D)535.25MHz
    OMI3.8%



    CNR①

    		=59dB@-9dBm,RFsource >90dBuV
    >57dB@-11dBm,RFsource >90dBuV
    >51.7dB@-17dBm,RFsource >90dBuV
    CTB≤-65dB
    CSO≤-65dB
    Digital TV Parameters
    OMI4.3%


    MER

    		>39.2dB@-9dBm,RFsource = 80dBuV
    >36.2dB@-11dBm,RFsource = 80dBuV
    >31dB@-17dBm,RFsource = 80dBuV
    BER<1.0E-9dB@-17dBm,RFsource = 80dBuV
    Environmental Parameters
    Operating Temperature-25 ~ 85℃
    Storage Temperature40 ~ 85℃
    Storage Humidity≤95%Non- condensation
    Power consume<1W
    User Interface
    Optical Connector TypeSC/APC or SC/UPCOptional
    Power interfaceDC5V/1AExternal adapter
    RF Output Connector1 or 2Optional


    Optical Power Indicator


    Three color lights

    		Red: > 0 dBm
    Green: 0 ~ -11 dBm
    Orange: <-11 dBm
    Size100×67×23mm
    Weight190g

    Note: ①The max CNR is 59dB
