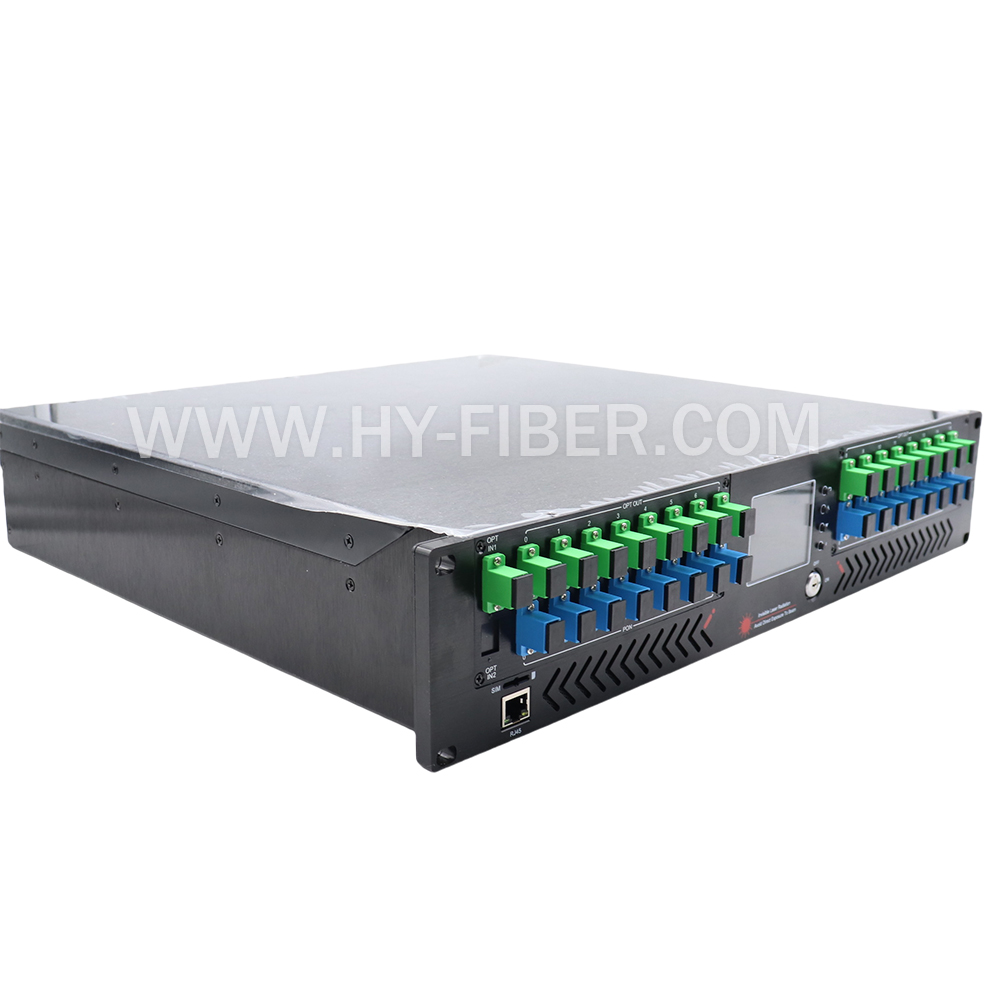

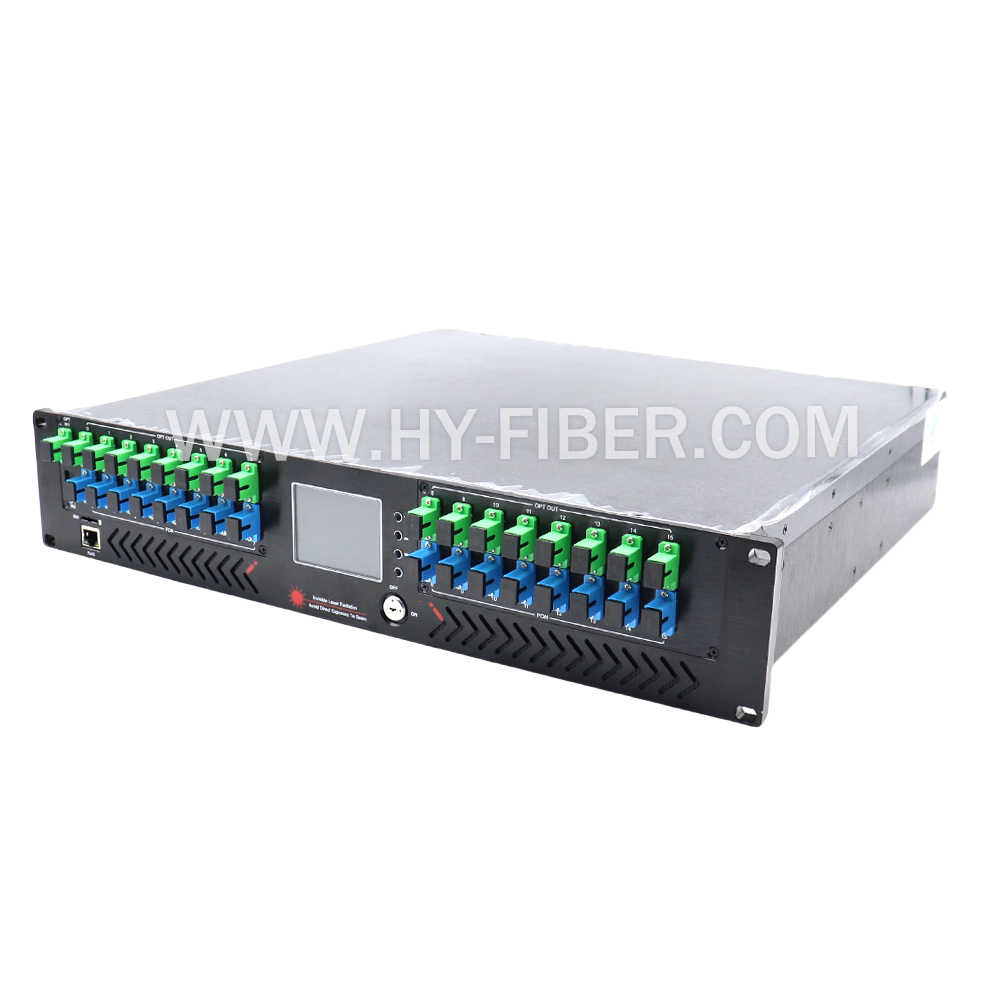

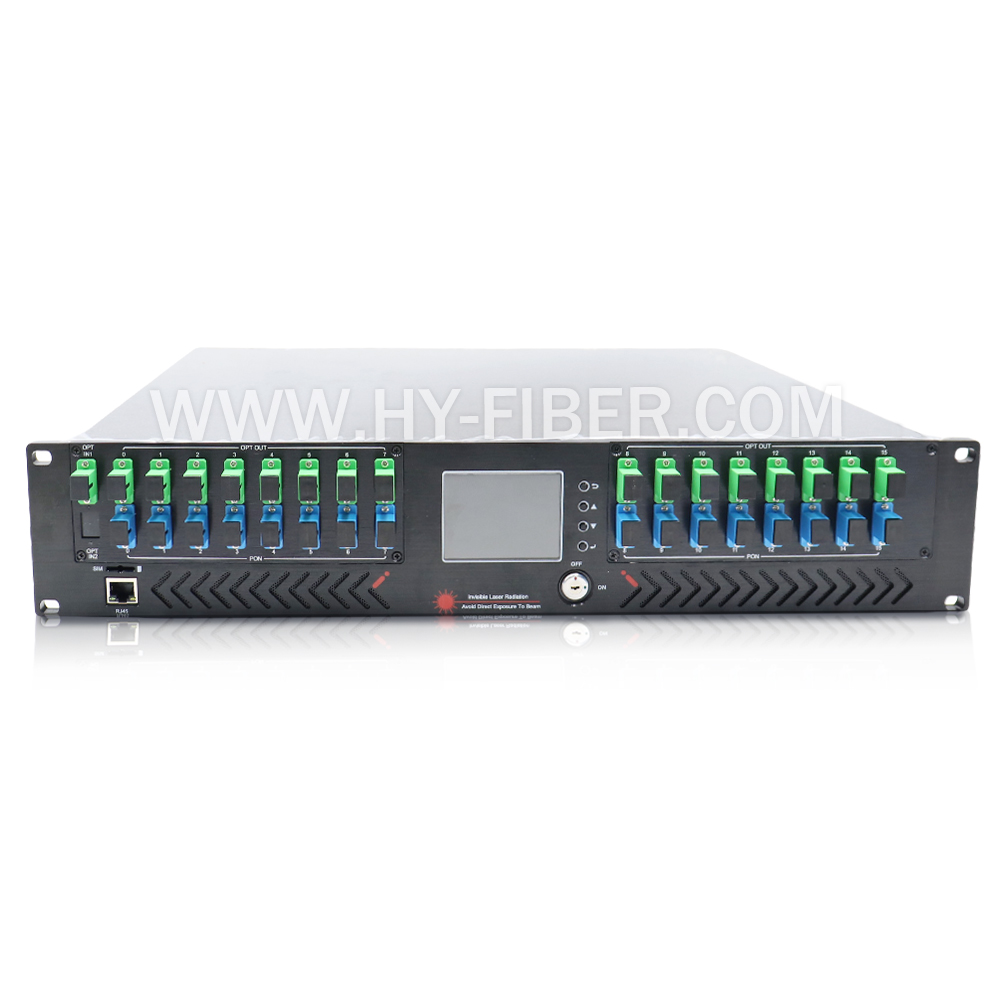

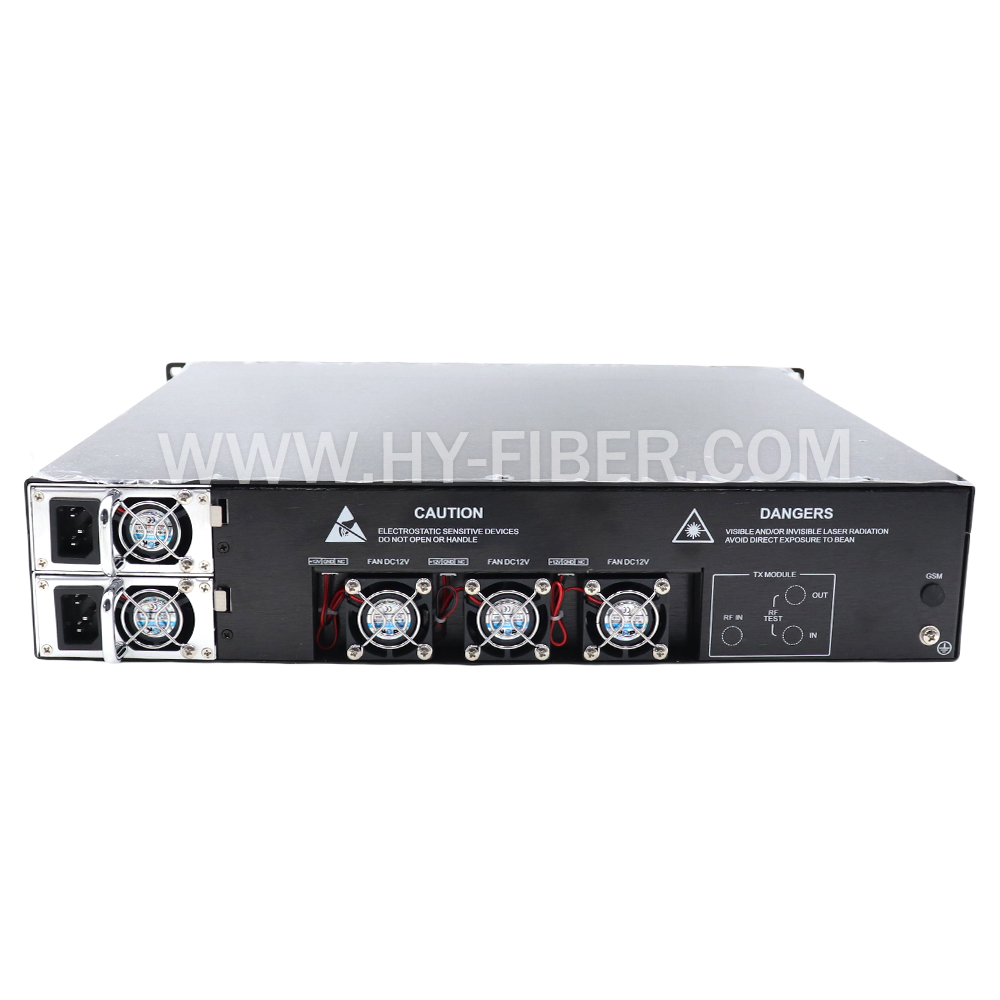

HY-21-AM16PxxW 2U High Power CATV 1550nm

Description

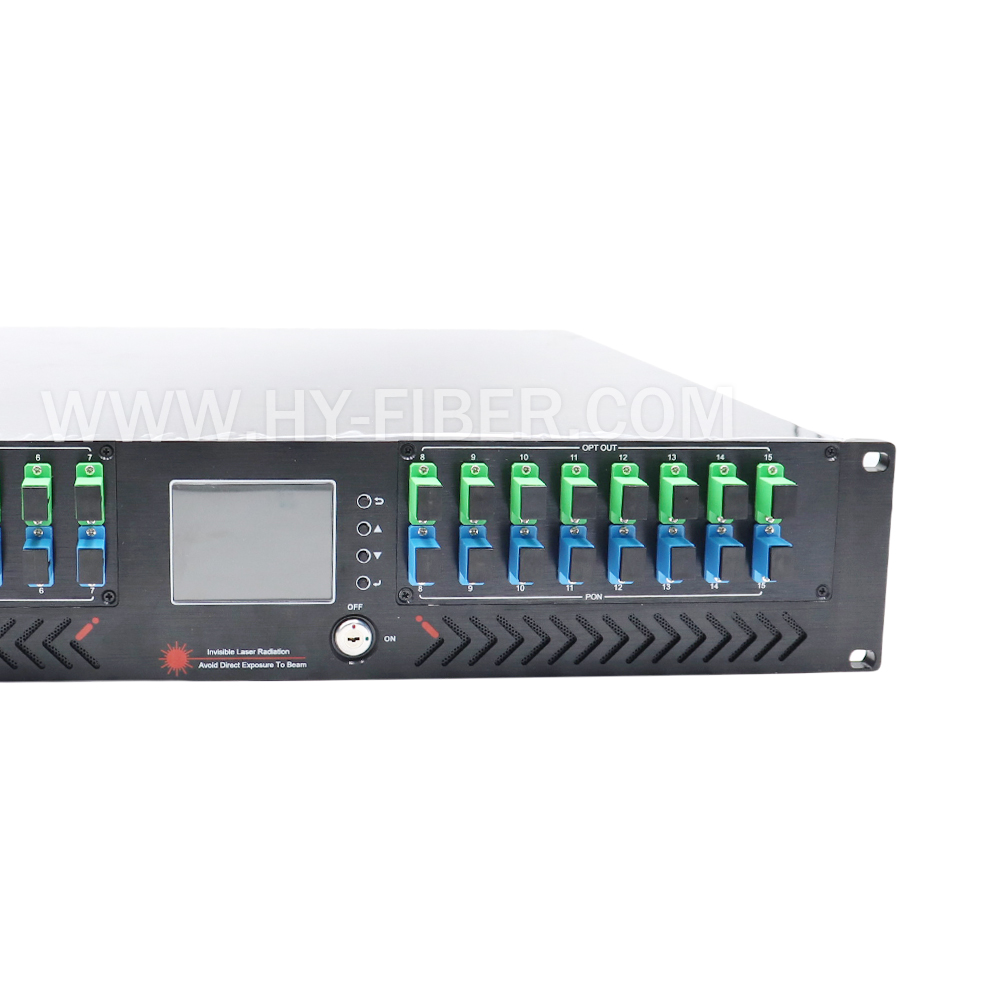

HY-21-AMxx series 1550nm ytterbium-doped fiber amplifier is equipped with stable optical output power circuit and pump laser thermoelectric cooling device Temperature stability control circuit to ensure the best performance of the equipment and long-life laser stability. The microprocessor software monitors the lasers’ working state, the Digital Panel displays the operating parameters. With professional heat dissipation structure design, intelligent temperature control fan and low power consumption make it to be the ideal choice for building the 1550nm large and medium-sized optical transmission network.

Ytterbium-doped optical amplifier can realize 1550nm single wavelength transmission, CWDM multi-wavelength transmission. According to the requirements, can be 8, 16, 32, 64 output ports.

Specification

Item		1U Technical parameter	2U Technical parameter	Remark
CATV operating wavelength		1545nm-1560nm	1545nm-1560nm	Center wavelength1550nm
PON OLT Operating Wavelength		1310nm/1490nm	1310nm/1490nm	Customizable 1270nm/1577nm
Input Optical Power		-10dBm-+10dBm	-10dBm-+10dBm	Recommend 0dBm -+3dBm
Maximum total output optical power		38dBm	41dBm
Noise Figure		≤ 6dB	≤ 6dB
OSW	Number of Input Ports	2	2
	Insertion loss	≤1.3dB	≤1.3dB
	Cutoff time	＜0.5s	＜0.5s
Reflection loss	Input side	≥ 45dB	≥ 45dB
Reflection loss	Output side	≥ 45dB	≥ 45dB
Direct transfer optical transmitter	Operating wavelength	1550nm	1550nm	Optional Features
	Input level	75dBuV-90dBuV	75dBuV-90dBuV
	Output power	3/5/7/10dBmW	3/5/7/10dBmW
Output level of Rx TEST		≥ 56dBuV	≥ 56dBuV	+2 dBm to -7 dBm (analog) +2 dBm to -10 dBm (digital)
Optical Connector Type		SC/APC；SC/PC；LC/APC；LC/PC	SC/APC；SC/PC；LC/APC；LC/PC	customizable
C/N		≥ 50dB	≥ 50dB	Test conditions are according to GD/J115-2020
C/CTB		≥ 65dB	≥ 65dB
C/CSO		≥ 65dB	≥ 65dB
Power Supply		AC：90-264V 50/60Hz Bat：10.8-14.4V	AC：90-264V 50/60Hz Bat：10.8-14.4V	Optional DC -36 - -72V
Power Consumption		≤ 75W	≤ 150W
Operating Temperature		-5℃ - +50℃	-5℃ - +50℃
Operating Relative humidity		95% without condensing	95% without condensing
Storage temperature range		-40℃ - +80℃	-40℃ - +80℃
Chassis Size		482(W)356(D)44(H)	480(W)428(D)89(H)	Size does not include handle
Packing size(1PC Packing)		590(W)505(D)115(H)	638(W)638(D)262(H)
Packing size(2PCS Packing)		590(L)505(W)220(H)	None
Packing size(5PCS Packing)		590(L)505(W)525(H)	None

Ordering Information

Model	Product Description
HY-21-AM08P16	Output power lever: 16dBm,8 port	Price: low
…	…	…
HY-21-AM64P19	Output power lever: 19dBm,64 port	Price: high
Model	Product Description
HY-21-AM08P16W	Output power lever: 16dBm,8 port	Price: low
…	…	…
HY-21-AM64P18W	Output power lever: 18dBm,64 port	Price: high
