Specification

With the ability to us both SC simplex and LC duplex adaptor types offering a flexible solution to the end user, enabling them to incorporate a multi functional enclosure which allows easy access during installation or re-work with no disturbance of the existing cable or fibres.

In addition to the interchangeable adaptors the enclosure also offers up to 24 exit points for patching cables and 4 standard cable entry point for loose tube, tight buffer, pre-terminated and steel tape armoured cable.

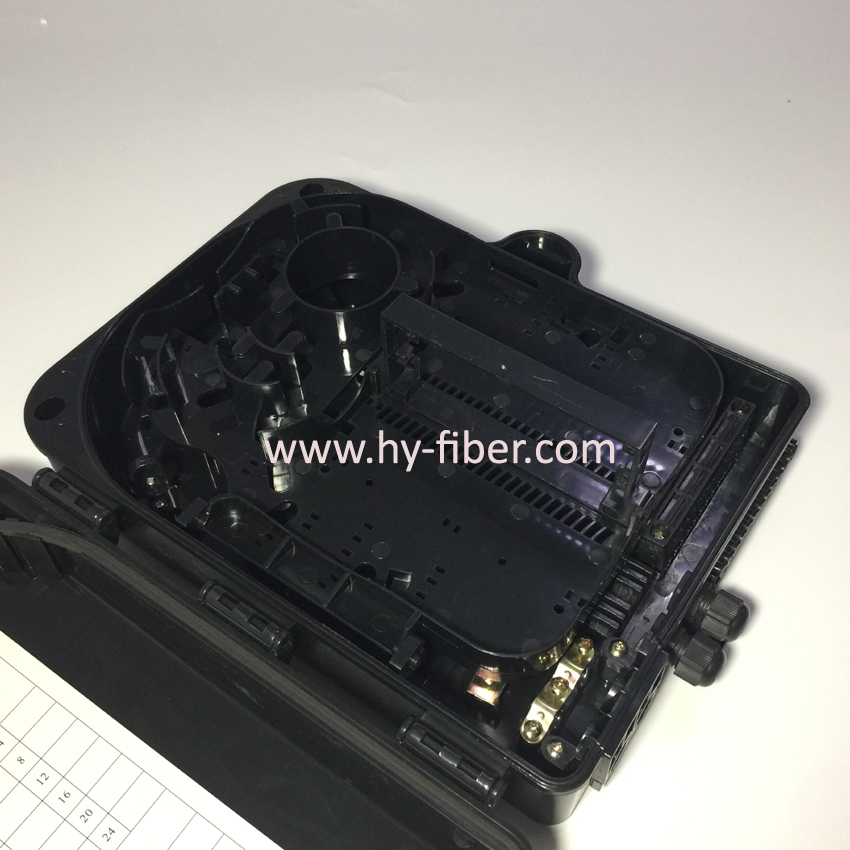

Each enclosure has integrated strength member tie positions and bend radius protection with the addition of a removable front door allowing for quick and easy installation.

Feature

1. Up to 24 fibres

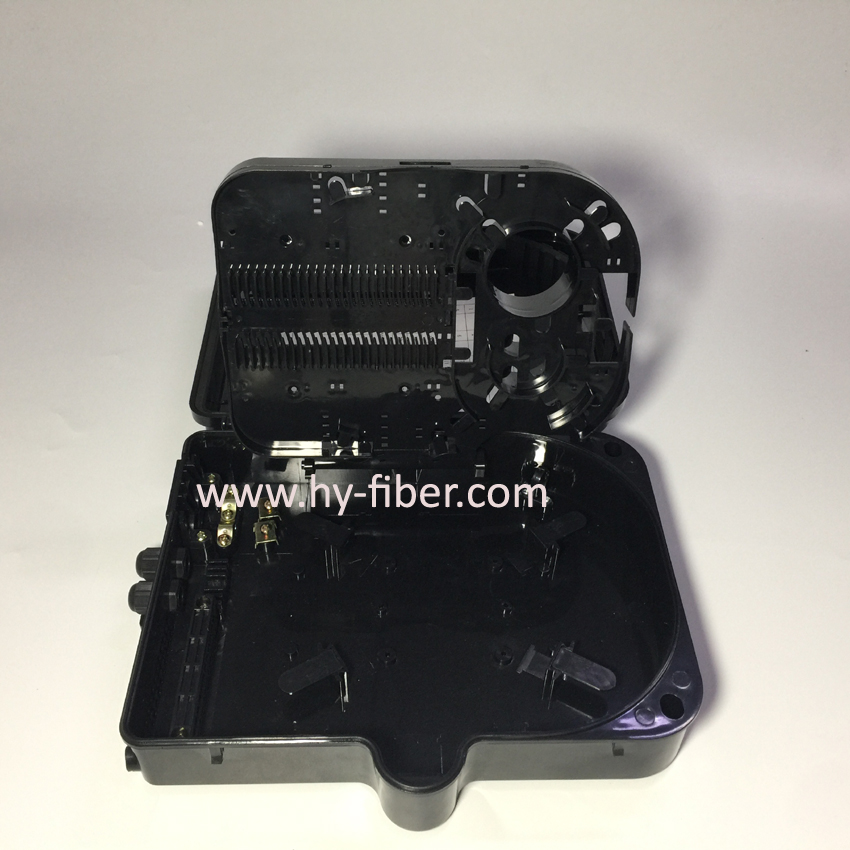

2. Removable splice tray for easy installation
3. Multiple adaptor options available
4. IP 54
5. Accepts loose tube, distribution and pre-terminated cables
6. Integrated bend radius protection
7. Sealing glands for up to 24 exiting cables + 4 incoming cable
8. Removable door for ease of installation
9. ROHS compliant
10. Supplied with 24 heatshrink splice protectors
11. Supplied with transit tubing
12. Supplied with wall fixings and tie wraps

Application

1. Data centres, premise installations, telecommunication networks
2. Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
3. Data communication and telecommunication networks
4. Wall mounted/Pole mounted,Indoor/outdoor applications

Specification

Description
Dimension	330x250x100 mm
Capacity	24fibers
Adapter	24xSC simplex, 24xLC Duplex
Operation Temperature	-40c~+60c
Gross Weight	1200g



Order Information: HY-20-T24C
