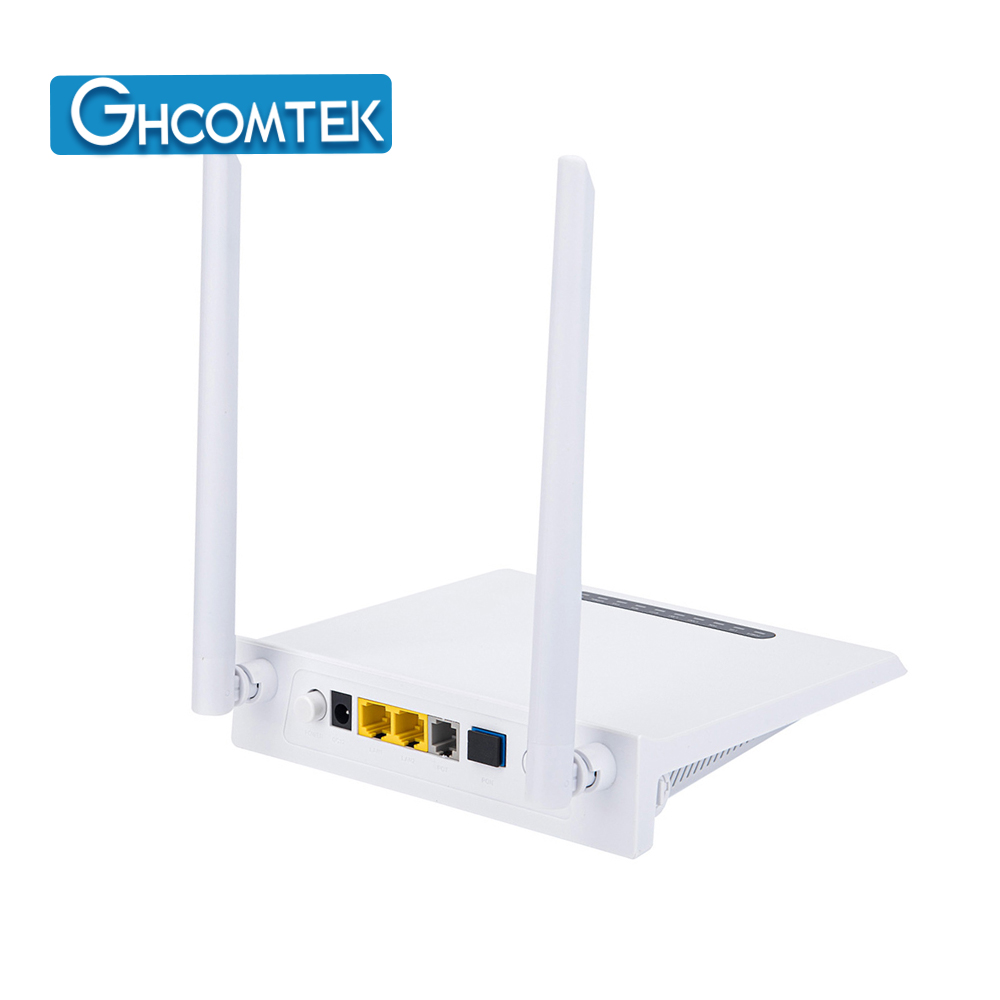

G/EPON ONU 1GE+WIFI HY-15-XO1G1FW

Description

XPON ONU, using Realtek solution RTL9602C+RTL8192 series. With 1Gigabit 1FE WIFI and POTs port, POTs can freely set the operator platform, in line with the dial-up standards of various countries, and perfectly combined with local usage standards. Carrier-grade FTTH application data service access. Comply with the technical requirements of IEEE802.11n, ITU-T G.984.x and IEEE802.3ah, and meet the technical requirements of China Telecom EPON CTC3.0. When connected with EPON OLT or GPON OLT, it can automatically switch to EPON or GPON mode. Using 2×2 MIMO, the maximum rate can reach 300Mbps.

Specification

u Supports Dual Mode (can access GPON/EPON OLT).

u Supports GPON G.984/G.988 standards

u Support SIP Protocol for VoIP Service

u Integrated line testing compliant with GR-909 on POTs

u Support 802.11n WIFI (2x2 MIMO) function

u Support NAT, Firewall function.

u Support Flow & Storm Control , Loop Detection, Port Forwarding and

u Loop-Detect

u Support port mode of VLAN configuration

u Support LAN IP and DHCP Server configuration

u Support TR069 Remote Configuration and WEB Management

u Support Route PPPOE/IPOE/DHCP/Static IP and Bridge mixed mode

u Support IPv4/IPv6 dual stack

u Support IGMP transparent/snooping/proxy

u In compliant with IEEE802.3ah standard

u Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...)

Technical Item	Details
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
LAN interface	1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WIFI Interface	Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM
LED	8 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2、 FXS
Push-Button	4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition	Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing）
Storing Condition	Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing）
Power supply	DC 12V/1A
Power Consumption	<6W
Net Weight	<0.4kg

Panel lights and Introduction

Pilot Lamp	Status	Description
WIFI	On	The WIFI interface is up.
	Blink	The WIFI interface is sending or/and receiving data (ACT).
	Off	The WIFI interface is down.
WPS	Blink	The WIFI interface is securely establishing a connection.
WPS	Off	The WIFI interface does not establish a secure connection.
PWR	on	The device is powered up.
PWR

	Off	The device is powered down.
LOS	Blink	The device doses not receive optical signals or with low signals.
LOS	Off	The device has received optical signal.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LAN1~LAN2	On	Port (LANx) is connected properly (LINK).
	Blink	Port is sending or/and receiving data (ACT).
	Off	Port (LANx) connection exception or not connected.
FXS	On	Telephone has registered to the SIP Server.
	Blink	Telephone has registered and data transmission (ACT).
	Off	Telephone registration is incorrect.
