Specification

Features / Benefits

1. Ergonomic design.
2. Ability to allow cables to enter from rear or bottom of the unit.
3. All fibres are positively managed to maintain a 30mm minimum bend radius.
4. Optional Removable rear entry cable management.

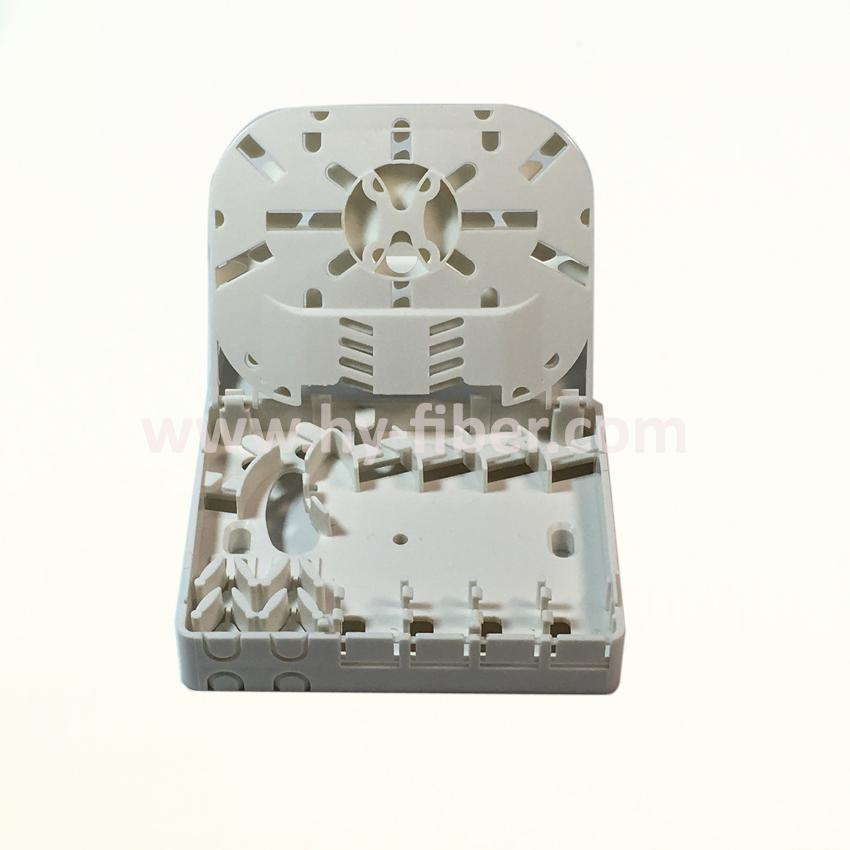

5. Flip tray to allow access to connectorised tails and cable entry.
6. Removable cover for easy access.
7. Tamperproof cover security screws available as an option.
8. Unit manufactured from fire resistant UL94-V0 rated material.
9. Patchcords exit unit on bottom face and are protected by two protection covers.
10. Standard colour white. Other colours available on request.

Termination Specification

Descriptions	Details
Number of splice trays	1
Maximum Fibre Capacity	4
Maximum no. of customer feeds:	4 pigtails
Required space envelope (mm)	(l) 90 x (w) 100 x (d) 32
Operating temperature	20oC to + 50oC (5 to 95% RH)
Material	FR High Impact Polystyrene
Packing Dimensions (mm):	(w) 110 x (h)100 x (d)36
Packed Weight (kg):	0.55
Net weight (kg):	0.50
