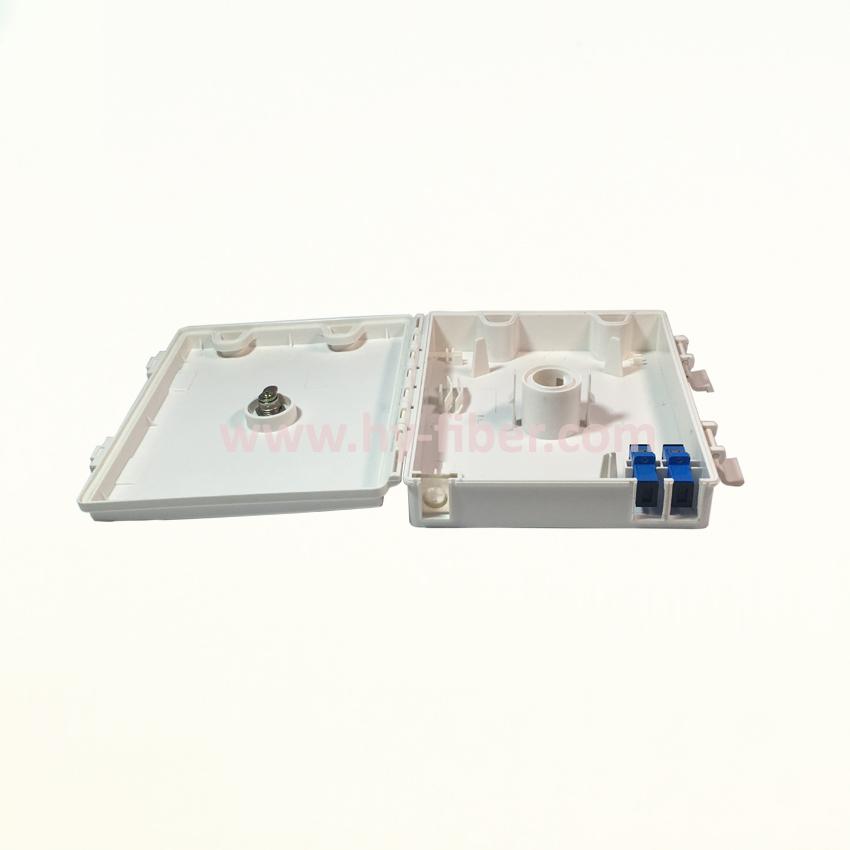

    FTTH Terminal Box Store Box 2 Port HY-20-T2E

    FTTH Terminal Box Store Box 2 Port HY-20-T2E


    Description

    The FTTH termination box is designed for use in residential and business applications for the termination of up to two fiber or store up to 10 meter cable. The wall box enables the installation of either a single Blown Tube cable using up to two 2 fibre ruggedized cables to be spliced to four SC pigtails (PC or APC),which connect to adapters at the base of the unit. The unit can be quickly installed within an office, house or communication room environment.








    Specification


    Features / Benefits

    1. Ergonomic design.
    2. All fibres are positively managed to maintain a 30mm minimum bend radius.
    3. Optional Removable rear entry cable management.
    4. Standard colour white. Other colours available on request.
    5. Up to 10 meter fiber cable storage
    6. ROHS compliant





    Termination Specification

    Descriptions

    Details

    Maximum Fibre Capacity

    2

    Maximum no. of customer feeds:

    2 pigtails

    Required space envelope (mm)

    (l) 172 x (w)146 x (d)40

    Operating temperature

    20oC to + 50oC (5 to 95% RH)

    Material

    FR High Impact Polystyrene

    Packed Weight (kg):

    0.25

    Net weight (kg):

    0.20
