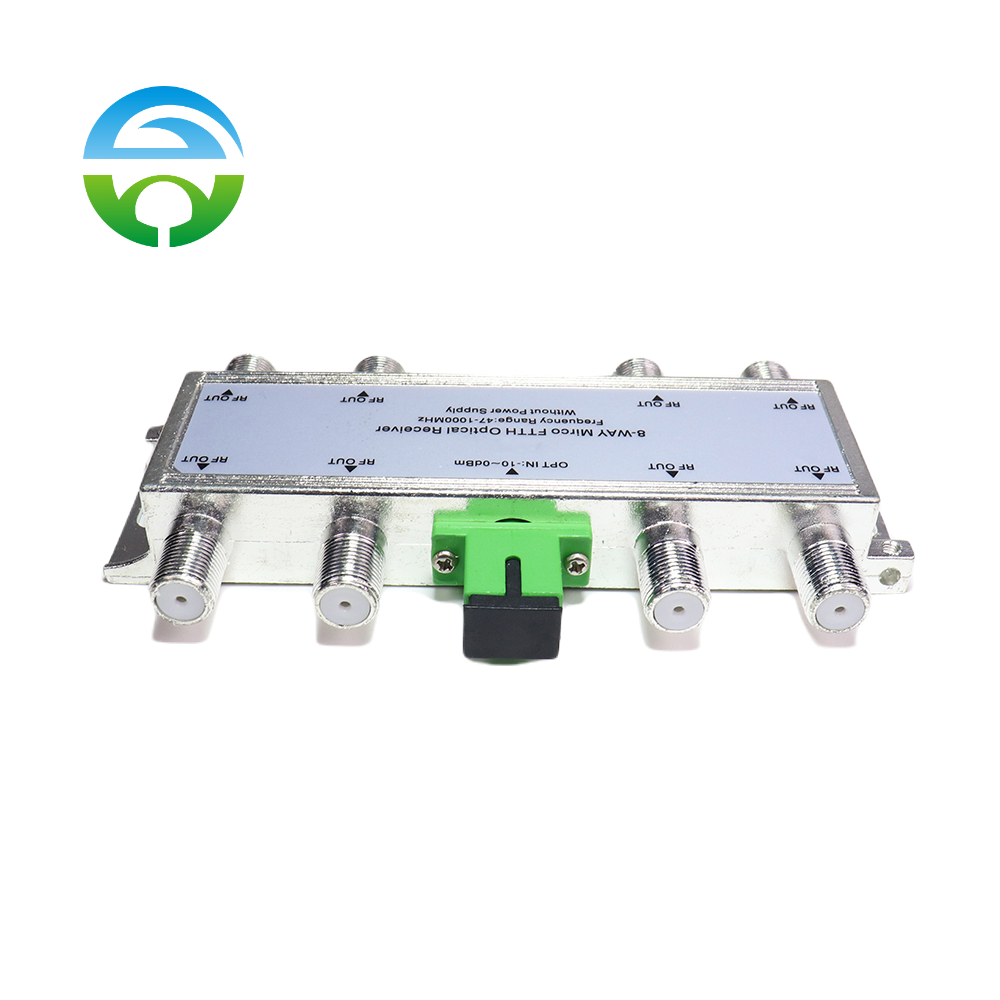

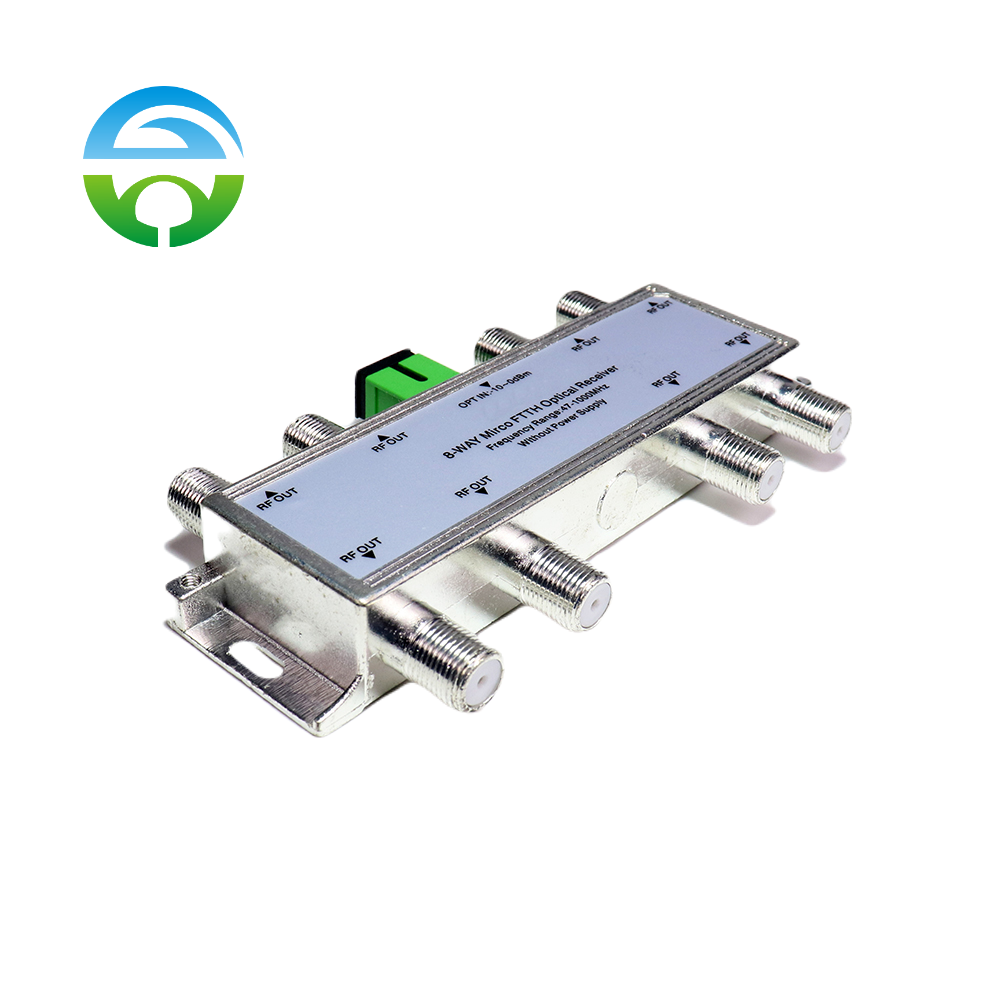

FTTH Fiber Optical Passive Receiver Node HY-21-R14

Description

HY-21-R13/14 series CATV converter for digital television,fiber to the home. This machine adopts the high sensitivity optical receiving tube,without power supply,no power consumption.When the input optical power output level Pin=-1dBm, Vo=68dBuV, can be economically and flexibly apply the integration of three networks,fiber to the home network application.

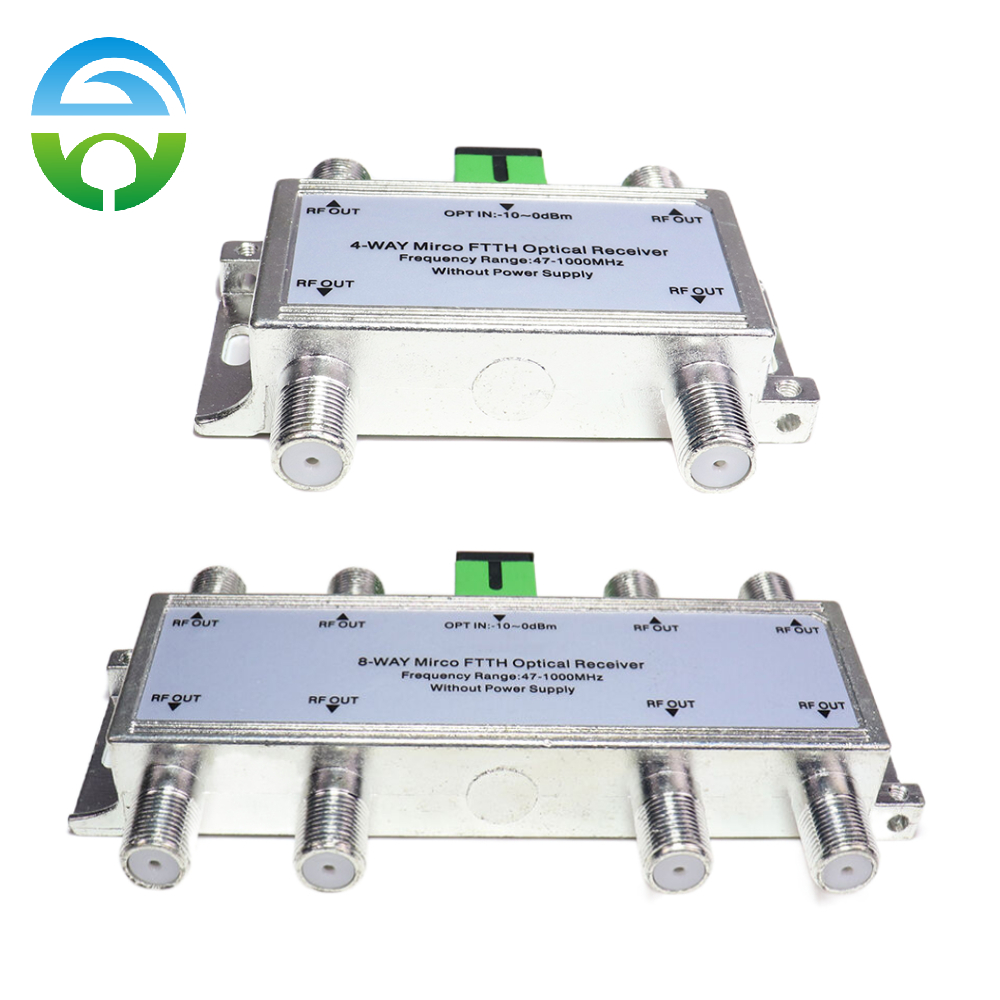

HY-21-R13/14Fx appearance of enamel, there are two kinds of optical made selection:

Specification

Products Type	HY-21-R13/HY-21-R14
Wavelength of Input Beam(nm)	1310~1550/1550nm
Input optical power(dBm)	-12~ 0dBm
Output Impedance of Radio Frequency(Ω)	75Ω
Type of Optical connector:	SC/APC or SC/UPC
Reflectional loss of light(dB)	>45
C/N:	≥51dB
C/CSO	≥62dB
C/CTB	≥65dB
Range of frequencies	47~1000MHZ
Inner flatness of band	±1.5dB
Output Return of Radio Frequency:	≥16dB
Weight of Product(g)	69g/119g
Overall Dimension(mm)	78×70×20mm/122x70x20mm
Packing list	Main products
	Instructions
	Warranty cards(1 Year)
