Description

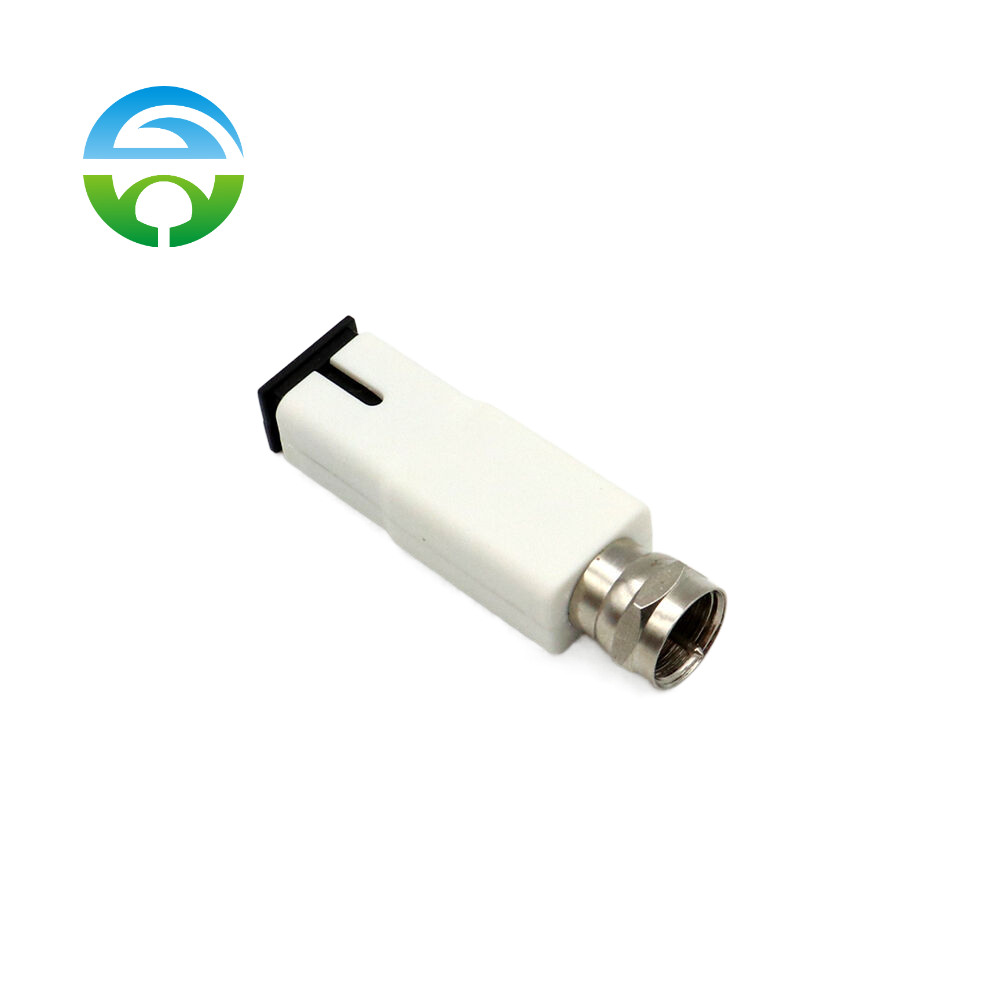

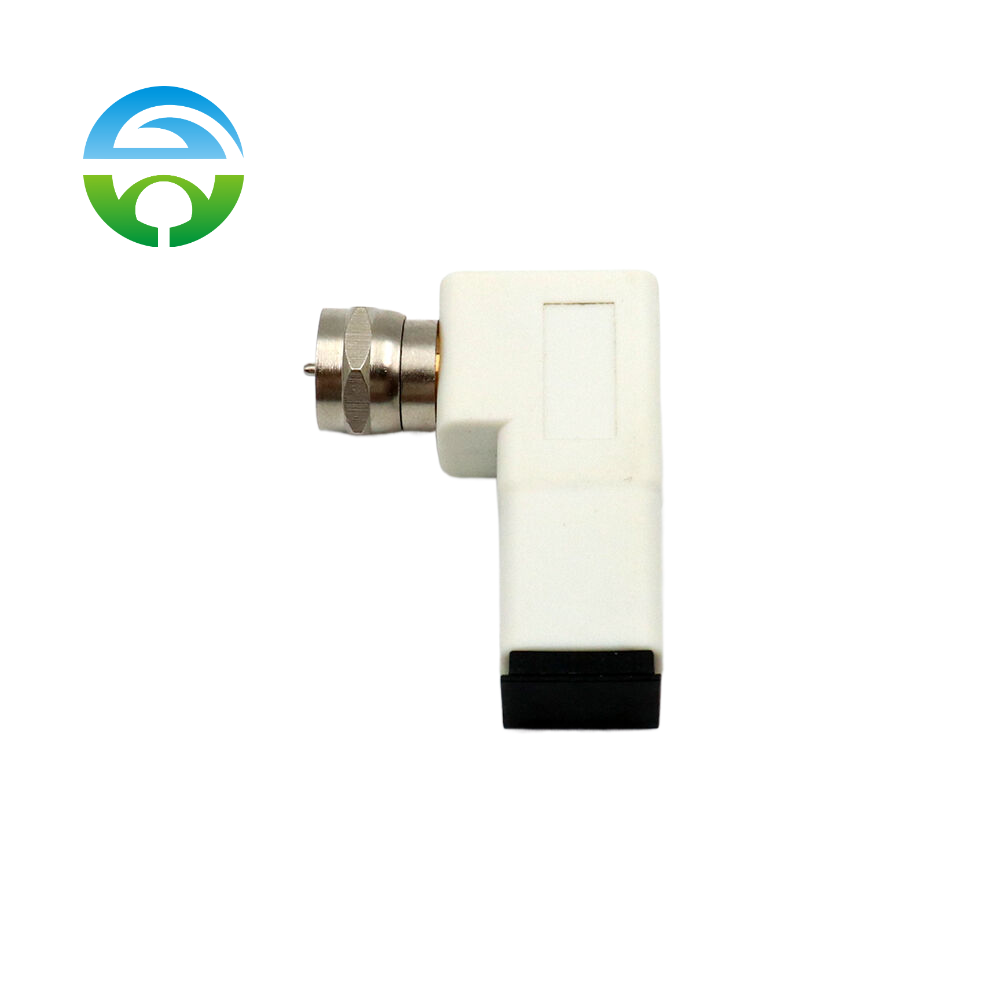

HY-21-R12F series CATV converter for digital television, fiber to the home.This machine adopts the high sensitivity optical receiving tube,without power supply, no power consumption.When the input optical power output level Pin=-1dBm, Vo=68dBuV,can be economically and flexibly apply the integration of three networks, fiber to the home network application.
Products Type | HY-21-R12FA/HY-21-R12FB |
Wavelength of Input Beam(nm) | 1310~1550/1550nm |
Input optical power(dBm) | -12~ 0dBm |
Output Impedance of Radio Frequency(Ω) | 75Ω |
Type of Optical connector: | SC/APC or SC/UPC |
Reflectional loss of light(dB) | >45 |
C/N: | ≥51dB |
C/CSO | ≥62dB |
C/CTB | ≥65dB |
Range of frequencies | 47~1000MHZ |
Inner flatness of band | ±1.5dB |
Output Return of Radio Frequency: | ≥16dB |
Weight of Product(g) | 50g |
Overall Dimension(mm) | 40×30×15mm |
Packing list | Main products |
Instructions | |
Warranty cards(1 Year) |
