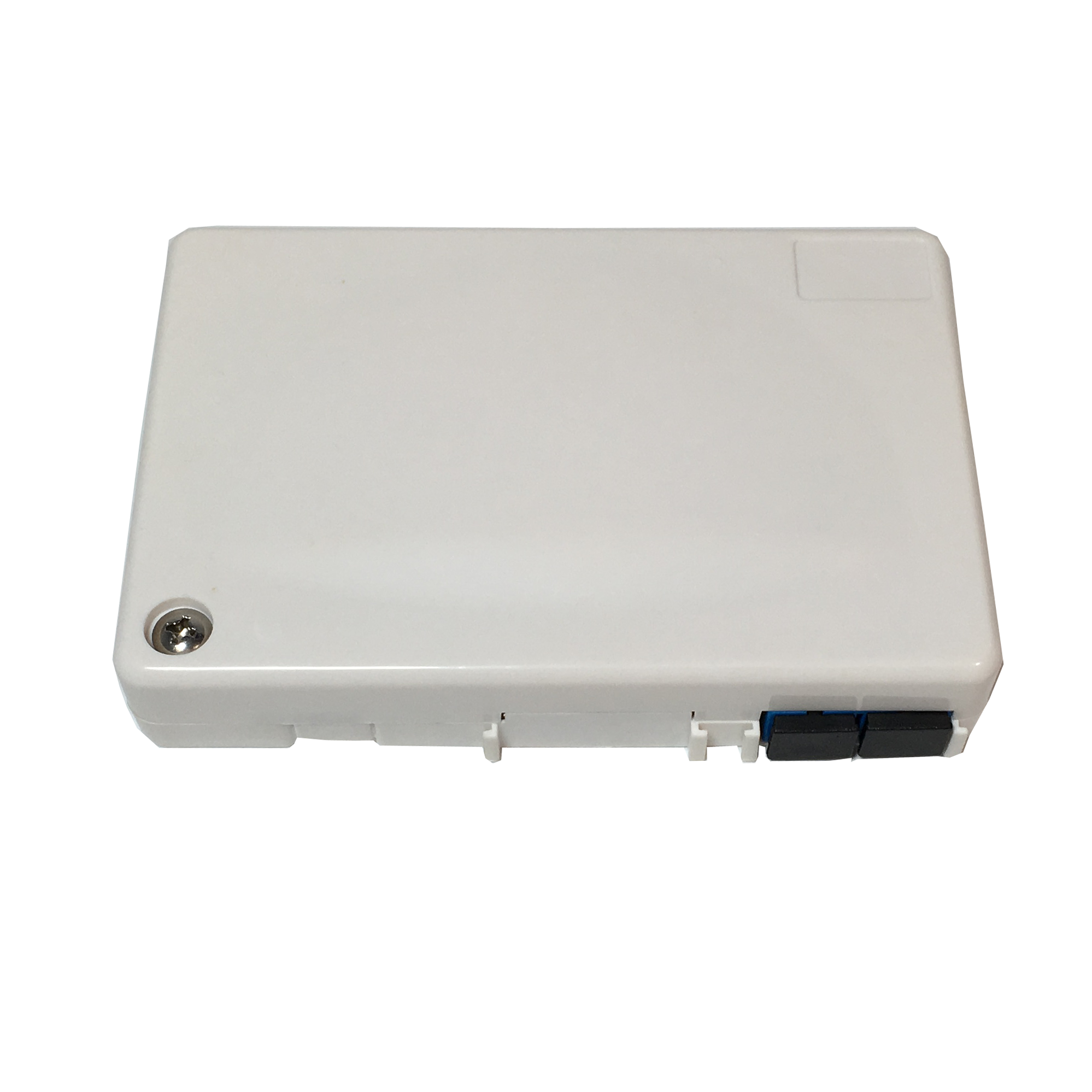

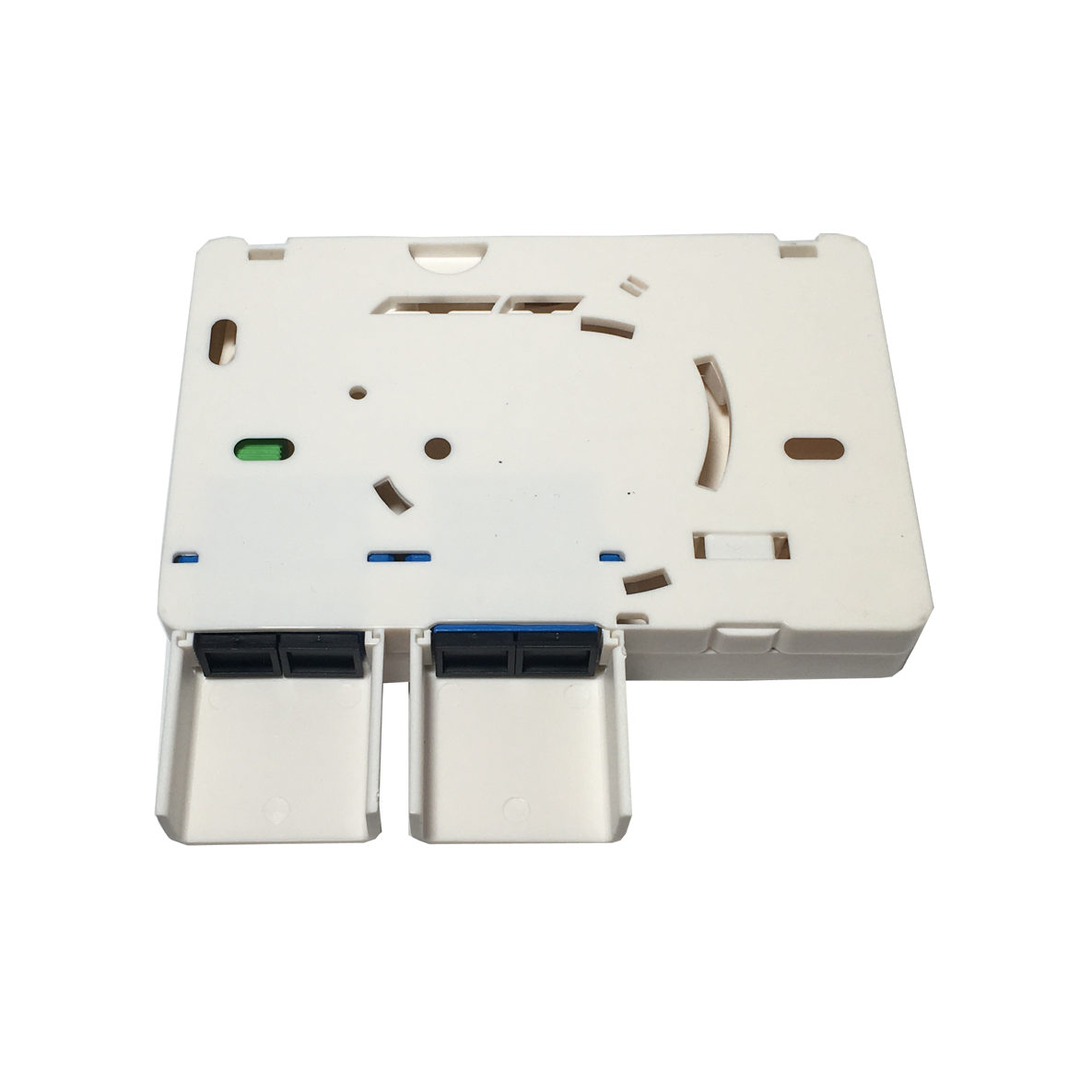

Compact FTTH Terminal Box HY-20-T4B


Description

The GH compact termination box is designed for use in residential and business applications for the termination of up to four fibres. The wall box enables the installation of either a single Blown Tube cable using up to a 4 fibre blown unit or two 2 fibre ruggedized cables to be spliced to four SC pigtails (PC or APC),which connect to adapters at the base of the unit. The unit can be quickly installed within an office, house or communication room environment.








Specification


Features / Benefits

  1. Ergonomic design.

  2. Ability to allow cables to enter from rear or bottom of the unit.

  3. All fibres are positively managed to maintain a 30mm minimum bend radius.

  4. Optional Removable rear entry cable management.

  5. Flip tray to allow access to connectorised tails and cable entry.

  6. Removable cover for easy access.

  7. Tamperproof cover security screws available as an option.

  8. Unit manufactured from fire resistant UL94-V0 rated material.

  9. Patchcords exit unit on bottom face and are protected by two protection covers.

  10. Standard colour white. Other colours available on request.



Termination Specification

Descrtiption

Details

Number of splice trays

1

Maximum Fibre Capacity

4/8

Maximum no. of customer feeds:

4/8 pigtails

Required space envelope (mm)

(l) 80 x (w) 120 x (d) 25

Operating temperature

20oC to + 50oC (5 to 95% RH)

Material

FR High Impact Polystyrene

Packing Dimensions (mm):

(w) 230 x (h) 160 x (d) 60

Packed Weight (kg):

0.55

Net weight (kg):

0.50



Testing

Descrtiption

Standard

Dry heat:

BS EN 60068-2-2 Test Bb

Damp heat:

IEC 60068-2-3: 19

Change of temperature:

IEC 60068-2-14: 1984

Vibration:

IEC 60068-2-6: 1995

Shock:

IEC 60068-2-27: 1987
