CATV1550nm External Modulation Optical Transmitter HY-21-ET15Pxxx

Description

The external modulation laser transmitter product is a new type of high-performance 1550nm external modulation optical transmitter. Transmitter is the 1U height, and can be easily installed in 19 "rack. This transmitter is the 1550 dual-wavelength 9dBm optical output, the output signal spectral lines is narrow, more advantages in the long-distance transmission. The main devices adopt DFB low-noise, narrow line width, continuous-wave lasers with thermoelectric cooling device made in JDUS, Fujitsu, MITSUBISHI and JDUS, AVANEX CATV high linearity external modulator. Because of the international brand adoption of key components and our company system optimization control technology, SMNP network control technology, the machine's technical performance indicators fully measure up the standard of similar imported equipment , It can provide high-quality images, digital or compressed digital signal long-distance transmission for cable television and telephone communications.

Specification

High quality: original system optimization control technology and RF pre-distortion technology ensure that the system can acquire the maximum CTB, CSO, and SBS targets in the case of excellent performance CNR .
Flexibility: In ensuring the high performance system CSO, the phase modulation technology of external modulator maximize the optical power into the fiber in order to obtain long-distance transmission, and the field adjustable SBS threshold, 13,16,19, may apply a different network transmission.
Reliability: The 19 "1U standard rack, built-in high-performance dual switching power supply,it can work in the backup at 85 ∽ 265Vac City Network Voltage, MS-level automatic switching; chassis cooling automatic temperature control.

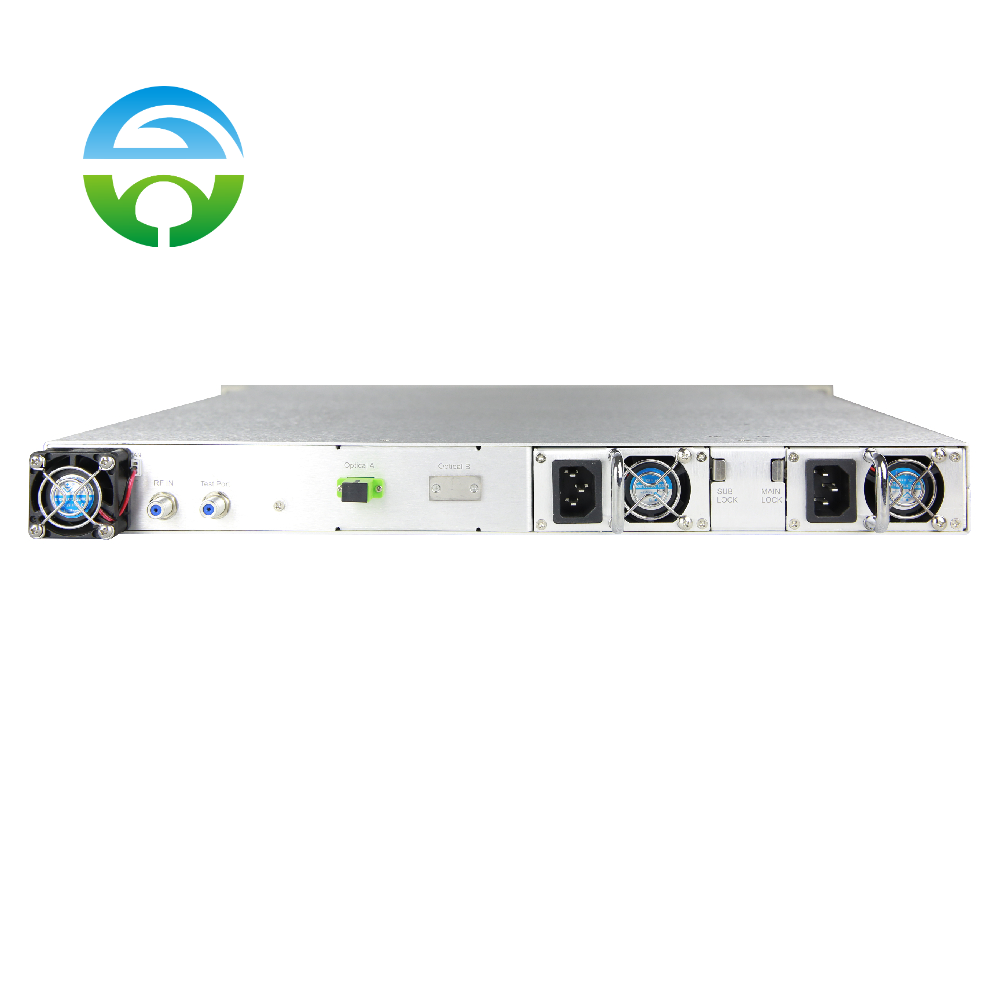

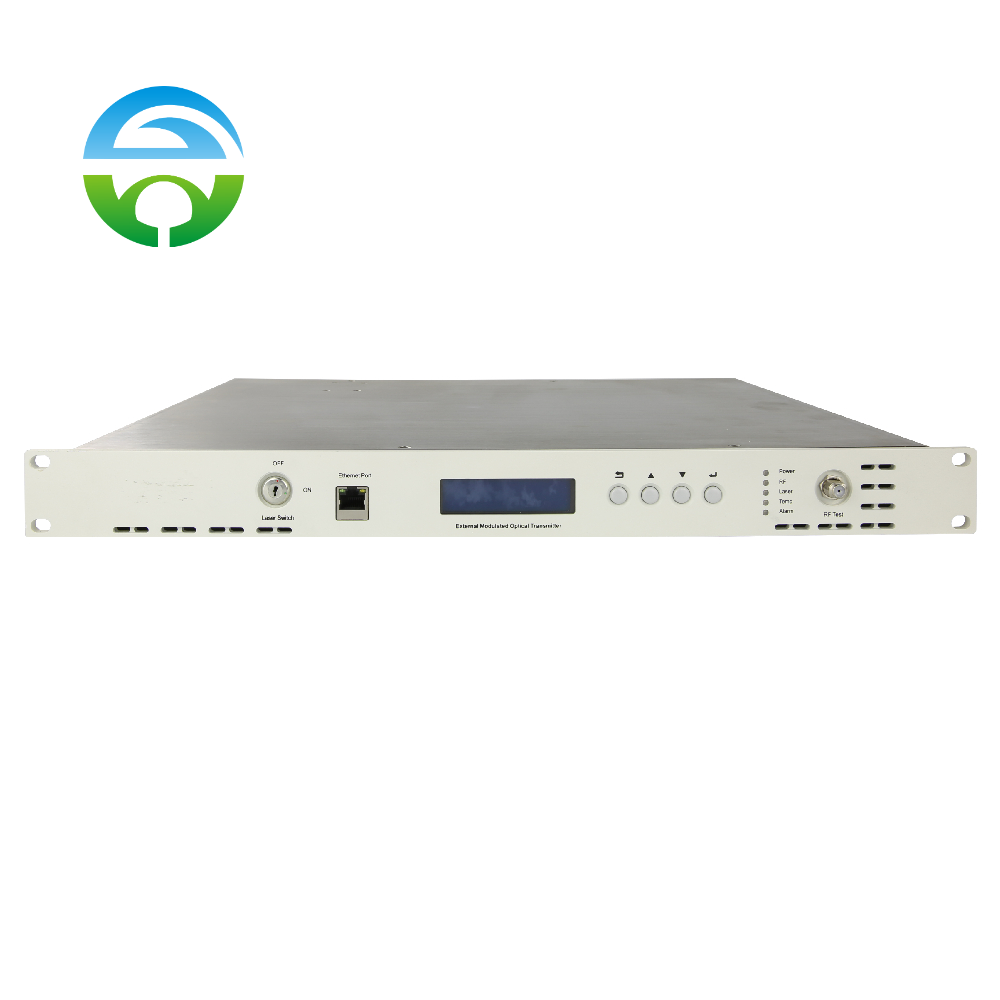

Intuitive: The laser is the most expensive machine components, machine equipped with microprocessor monitors the working state of the laser, the panel LCD window displays the operating parameters.
Network type: Select All-piece status monitoring transponder guarantee to meet the national standard and be compatible with the SCTE HMS standard, it enable network management monitoring capabilities.

Test project	Technical indicators
Model	HY-21-ET15Px-B	HY-21-ET15Px-B
Optical wavelength	1540-1563nm Fixed wavelength	ITU-T 1550nm Wavelength step adjustable
Recommended transmission distance	50km(analog)75km(digital)	100km(analog)150km(digital)
Laser linewidth	≤2nm
Edge mode rejection ratio	≥45 dB
Output power	1*9dBm	2*7dBm
Output number	1	2
Optical connection form	FC/APC，SC/APC
Radio frequency AGC control range	10dBuv
Radio frequency range	47-862/1000MHz
Flatness	≤0.75
RF input signal level	75-90dBuV
RF input impedance	75Ω
RF input reflection loss	≥16dB
CNR	≥53dB
CTB	≥65dB
CSO	≥65dB
SBS Value	13~16dBm Continuous Adjustable	13~19dBm Continuous Adjustable
Network management interface	RJ45
Supply voltage	AC220V(160V ~ 265V) /AC110V（90 ~130V）/DC48V（38- 58V）
Working temperature	-5℃~+65℃
Relative humidity	Max 95%，no condensation
Product net size	483×410×44mm
Product packaging size	625×625×160nm
Product weight	8kg
Weight of the whole box product	10kg(1PC)

Ordering Information

Model	Product Description
HY-21-ET15P006	Output power lever: 6dBm	Price :low
…	…	…
HY-21-ET15209	Output power lever:2x9dBm	Price: high
