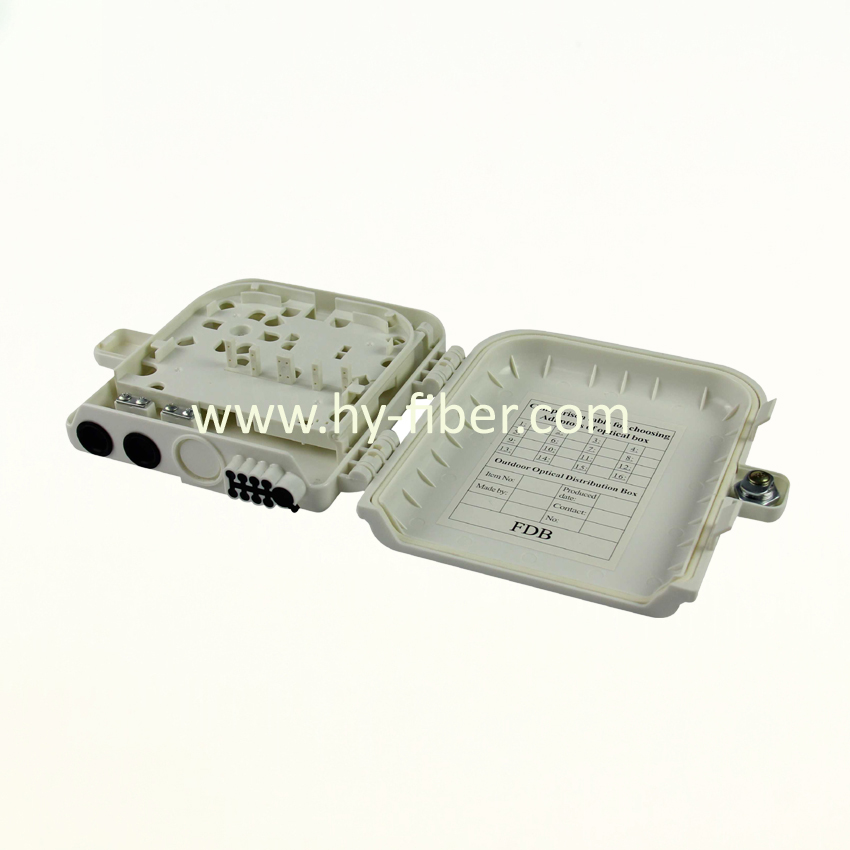

8 Port FTTx Terminal Box HY-20-T8A


Description

HY-20-T8A This Lockable distribution box offers the ability to terminate 8 fibers housed in a strong robust SMC enclosure for indoor and outdoor applications.

With the ability to us both SC simplex and LC duplex adaptor types offering a flexible solution to the end user, enabling them to incorporate a multi functional enclosure which allows easy access during installation or re-work with no disturbance of the existing cable or fibers.

In addition to the interchangeable adaptors the enclosure also offers up to 8 exit points for patching cables and 2 standard cable entry point for loose tube, tight buffer, pre-terminated and steel tape armored cable.

Each enclosure has integrated strength member tie positions and bend radius protection with the addition of a removable front door allowing for quick and easy installation.








Specification


Feature

  1. Up to 8 fibres
  2. Removable splice tray for easy installation
  3. Multiple adaptor options available
  4. Accepts loose tube, distribution and pre-terminated cables
  5. Integrated bend radius protection
  6. Removable door for ease of installation
  7. ROHS compliant
  8. Supplied with 8 heatshrink splice protectors
  9. Supplied with transit tubing
  10. Supplied with wall fixings and tie wraps

Application

  1. Data centres, premise installations, telecommunication networks
  2. Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
  3. Data communication and telecommunication networks
  4. Wall mounted/Pole mounted,Indoor/outdoor applications
  5. 1x8 PLC splitter, fast connector and adaptor inside



Specification

Description



Dimension

215x220x55mm

Capacity

8fibers

Adapter

8xsc simplex, 8xlc Duplex

Operation Temperature

-40c~+60c

N.W/G. W

1.6/1.9kgs



Order Information: HY-20-T8A
