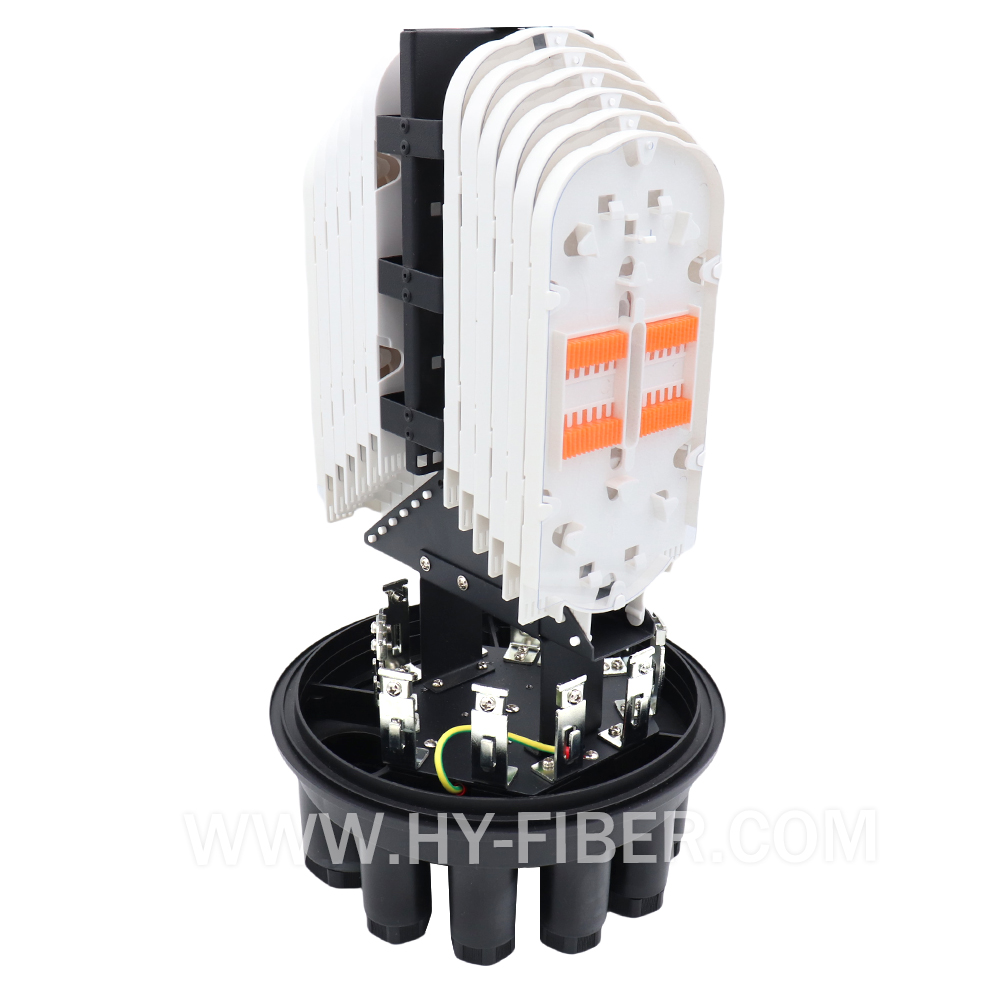

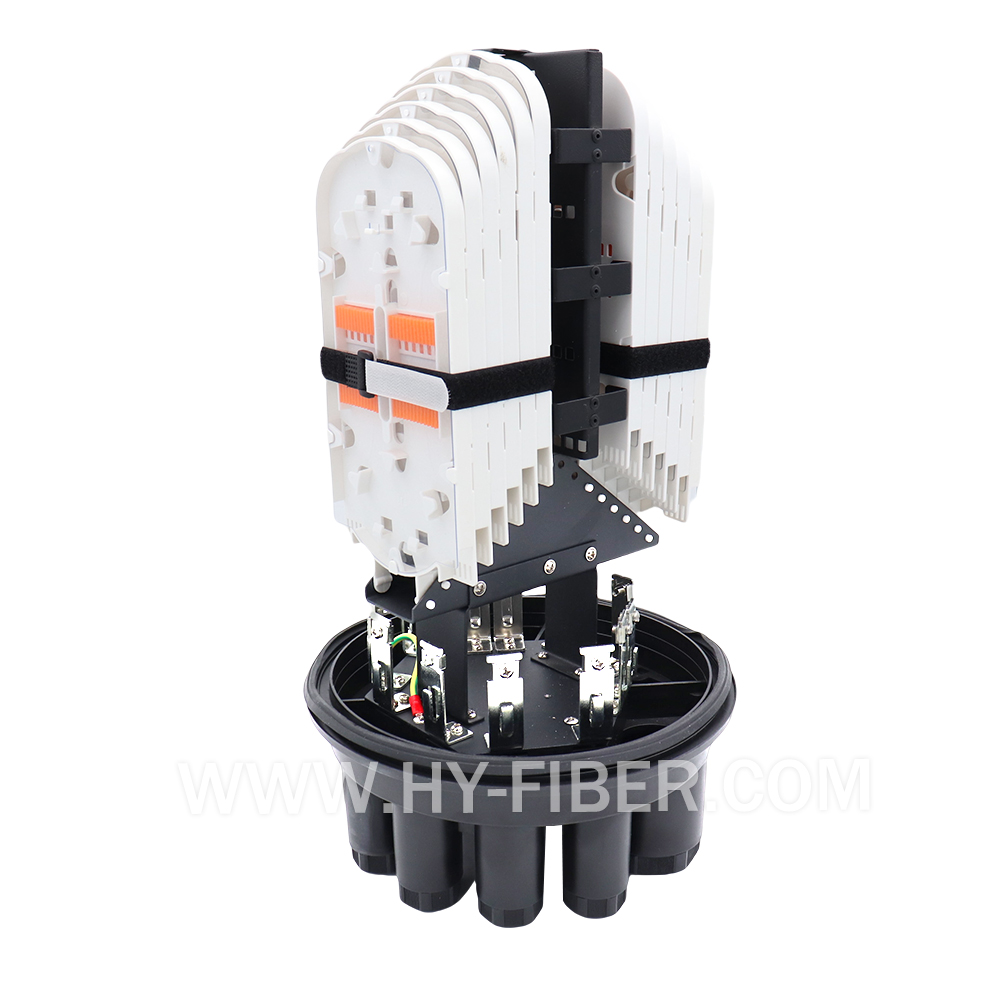

384 Fiber Dome Type Fiber Optic Splice Closure HY-10-D384A/D1152B


Description

HY-10-D384A/D1152B type of fiber closure is a fiber optic cable splice of multiple purposes, which can connect and protect cables. The fiber closures are capable of protecting fiber cable splices in straight-through and branching applications and shall be used in underground, aerial, wall-mounting, pedestal or direct buried, hand hole-mounting and duct-mounting applications. We always devote to the R&D of telecommunication equipment. Our fiber closures can greatly improve the performance of the operation of your network communication system. Closure is suitable for the applications up to 144 single fibers, which can cover most of the applications in the long-distance transmission and local fiber distribution networks, like Fiber To The Home / Fiber To The Curb (FTTH/FTTC). It is suitable for underground, aerial, pedestal or direct buried applications.






Specification


SizemmHxD

510×Φ325 (mm)

Capacity(cores)

384 single   fibers

Weightkg

10

Airproof type

Mechanical Seal

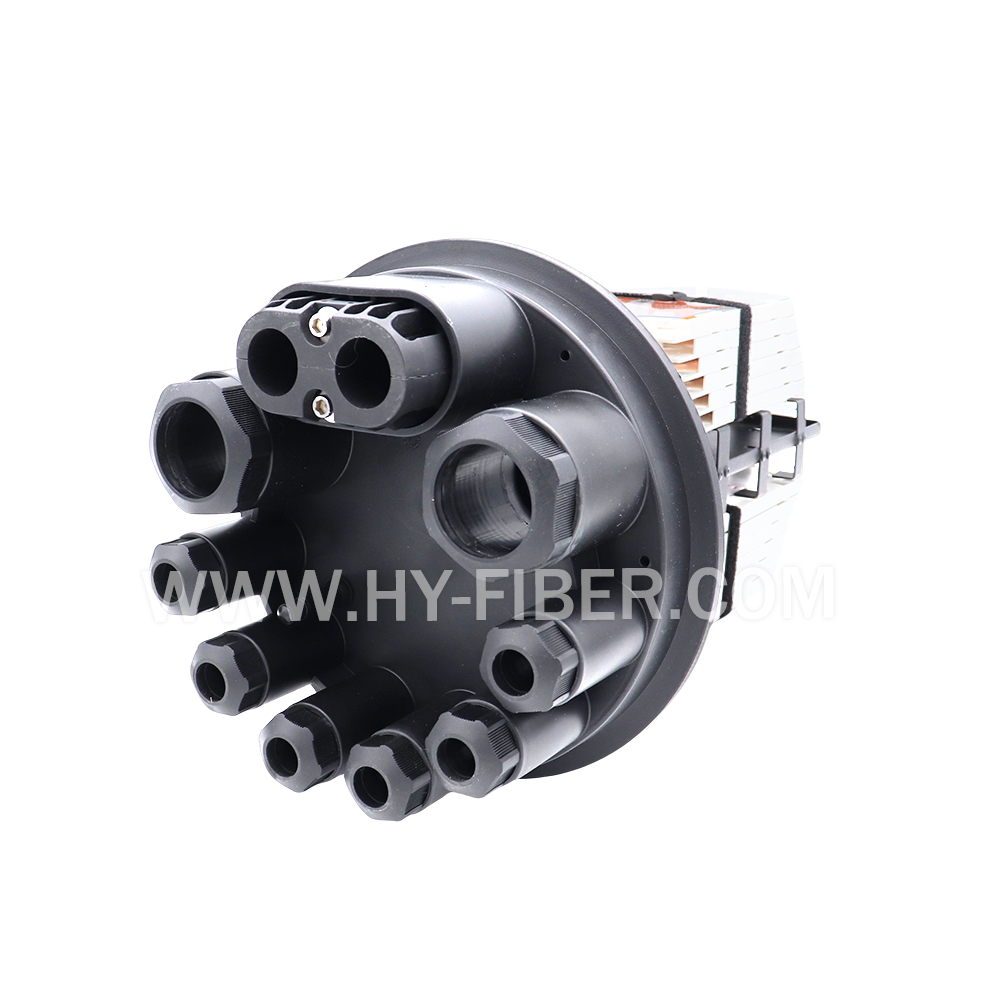

Entrances

5

Reinforced core

Steel wire

Suitable cable diameter

Φ7~26mm

Material

 PP

Maximum   number of trays

16

Capacity  of Tray

Max 24   single Fusion splices



SizemmHxD

510×Φ325 (mm)

Capacity(cores)

1152 single   fibers

Weightkg

10

Airproof type

Mechanical Seal

Entrances

5

Reinforced core

Steel wire

Suitable cable diameter

Φ7~26mm

Material

 PP

Maximum   number of trays

16

Capacity  of Tray

Max 72   single Fusion splices
