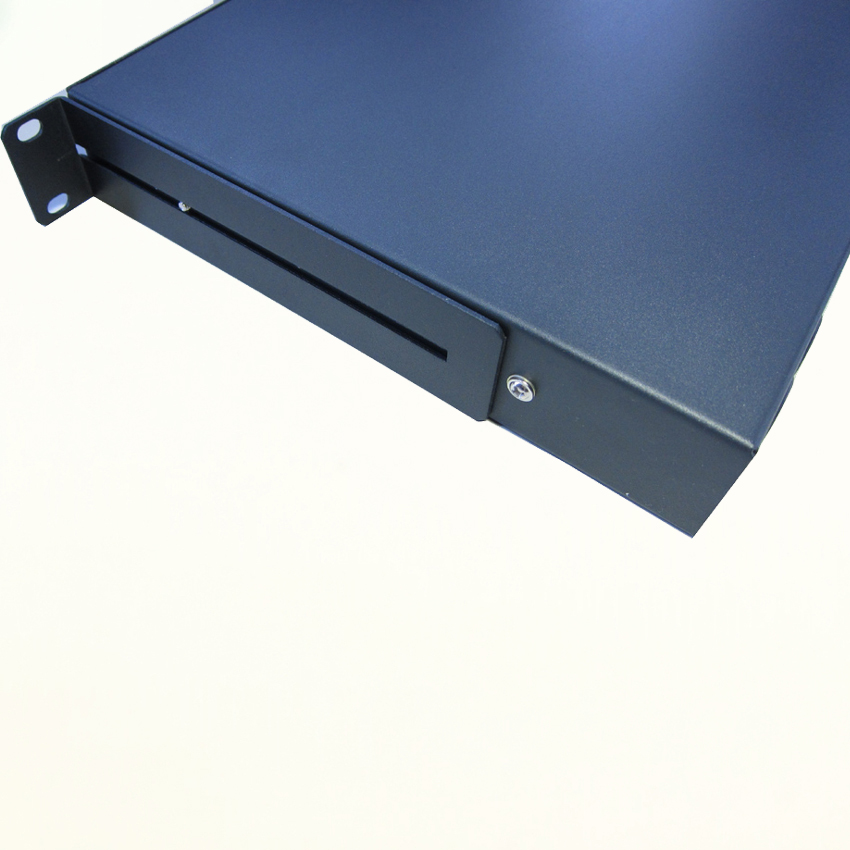

24 Fiber Drawer Type Patch Panel


Description

The HY-8-F2-A24 Fiber Optic Terminal Box is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.
The HY-8-F2-A24 we provide is a kind of high quality, micro sized fiber optical termination box made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment. The box can only be installed in the indoor rack mount chassis.








Specification




  • 19” standard sliding design,nice appearance
  • A pothook convenient to install and dismantle
  • Splice tray could be piled one upon another, flexible to turn
  • Unique structure, reasonable layout, adequate room for operation
  • Adjustable clamp seal ring and reinforce configuration
  • With excellent seal performance, preventing water from entering effectively
  • Rack mount in optical distribution frame ODF
  • Local area networks
  • Wide area networks
  • Telecommunication network
  • Central office optical cable system
  • Premise fiber network



Order Information:

Item no.

Dimension?mm?

Max Capacity (cores)

Remark

HY-8-F2-A24

430×250×1U

24

The case body is made from cold rolled steel plate, and the surface use the technology of electrostatic spraying, we can install adaptors for you. available for SC\ST\LC\FC
