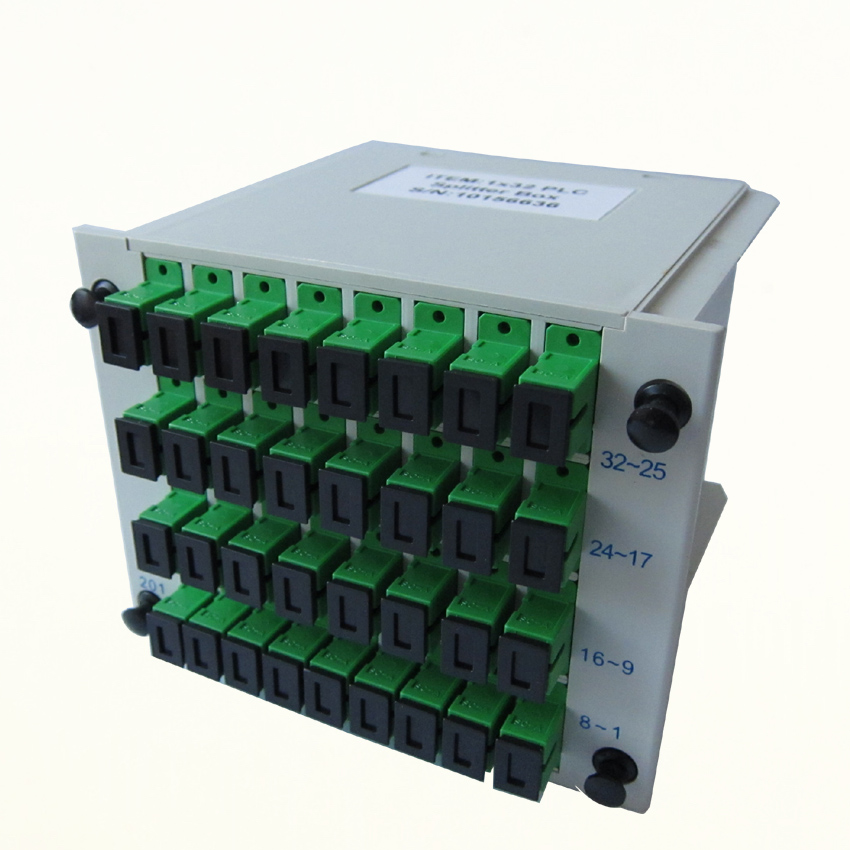

Specification
Features
- Low Insertion loss
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength:
From 1260nm to 1650nm
- Wide Operating Temperature:
From -40? to 85?
- High Reliability and Stability
Applications
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Compliance
- Telcordia GR-1209-CORE
- Telcordia GR-1221-CORE
Table 1 – 1×N PLC Splitter
|
Parameters
|
1×2
|
1×4
|
1×8
|
1×16
|
1×32
|
1×64
|
|
Operating Wavelength (nm)
|
1260?1650
|
|
Fiber Type
|
G657A or customer specified
|
|
Insertion Loss (dB)?P/S Grade?
|
3.8/4.0
|
7.1/7.3
|
10.2/10.5
|
13.5/13.7
|
16.5/16.9
|
20.5/21.0
|
|
Loss Uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2.0
|
|
Return Loss (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Polarization Dependent Loss(dB)
|
0.2
|
0.2
|
0.2
|
0.25
|
0.3
|
0.35
|
|
Directivity (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
|
Temperature Stability(-40?85 ?)(dB)
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
|
Operating Temperature (?)
|
-40?85
|
|
Storage Temperature (?)
|
-40?85
|
|
Device Dimension (mm) (L×W×H)
|
40×4×4
|
40×4×4
|
40×4×4
|
50×4×4
|
50×7×4
|
60×12×4
|
|
Module Dimension (mm) (L×W×H)
|
100×80×10
|
100×80×10
|
100×80×10
|
120×80×18
|
140×115×18
|
140×115×18
|
|
Mini-Module Dimension (mm) (L×W×H)
|
50×7×4
|
50×7×4
|
60×7×4
|
60×12×4
|
80×20×6
|
N/A
|
Table 2 – 2×N PLC Splitter
|
Parameters
|
2×2
|
2×4
|
2×8
|
2×16
|
2×32
|
2×64
|
|
Operating Wavelength (nm)
|
1260?1650
|
|
Fiber Type
|
G657A or customer specified
|
|
Insertion Loss (dB)
|
4.0
|
7.6
|
11.0
|
14.4
|
17.5
|
21.0
|
|
Loss Uniformity (dB)
|
0.6
|
1.0
|
1.2
|
1.5
|
1.8
|
2.2
|
|
Return Loss (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Polarization Dependent Loss(dB)
|
0.2
|
0.2
|
0.3
|
0.3
|
0.4
|
0.4
|
|
Directivity (dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.4
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Temperature Stability(-40?85 ?)(dB)
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
|
Operating Temperature (?)
|
-40?85
|
|
Storage Temperature (?)
|
-40?85
|
|
Device Dimension (mm) (L×W×H)
|
40×4×4
|
50×4×4
|
50×4×4
|
50×7×4
|
60×7×4
|
60×12×4
|
|
Module Dimension (mm) (L×W×H)
|
100×80×10
|
100×80×10
|
100×80×10
|
120×80×18
|
140×115×18
|
140×115×18
|
|
Mini-Module Dimension (mm) (L×W×H)
|
60×7×4
|
60×7×4
|
60×7×4
|
60×12×4
|
80×20×6
|
N/A
|
Notes:
- Specified without connectors.
- Add an additional 0.15dB loss per connector.
