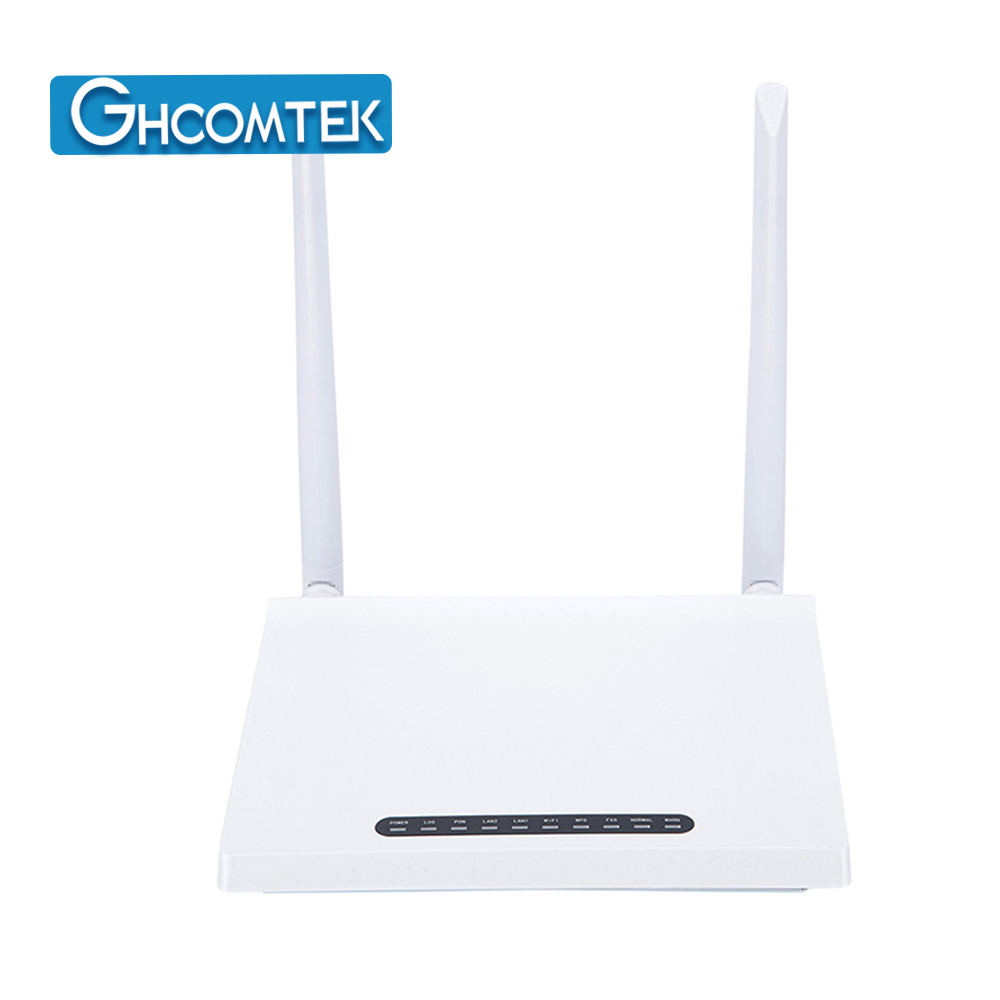

1G1F+WIFI XPON HY-15-XO1G1FW

Description

XPON ONU modem is designed as HGU or SFU (Home Gateway Unit) in different FTTH solutions. The FTTH application provides data service access, and can automatically switch the OLT between EPON and GPON modes. WIFI adopts 2×2 MIMO, the maximum rate can reach 300Mbps, and the average rate can reach 160Mbps. It is a very good choice for gamers. You can freely switch between GOOGLE and enter various mobile game platforms freely.

The ONU terminal can be used in conjunction with the OLT central office to unify the network management, realize remote fault diagnosis and positioning, and issue TR069 OMCI commands. SMATR OLT, UP2000, Huawei, ZTE, FiberHome, CDATA, VSOL, HSGQ, BDCOM, etc. and reduce maintenance workload. And compatible with TR369, TR098 and other protocols and future smart home, smart furniture reserved super management

Specification

u Supports Dual Mode (can access GPON/EPON OLT).

u Supports GPON G.984/G.988 standards.

u Support 802.11n WIFI (2x2 MIMO) function.

u Support NAT, Firewall function.

u Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect.

u Support port mode of VLAN configuration.

u Support LAN IP and DHCP Server configuration.

u Support TR069 Remote Configuration and WEB Management.

u Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode.

u Support IPv4/IPv6 dual stack.

u Support IGMP transparent/snooping/proxy.

u In compliant with IEEE802.3ah standard.

u Compatible with popular OLT(HW, ZTE, FiberHome,VSOL...).

Specification:

Technical Item	Details
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM
LAN interface	1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
WIFI Interface	Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM
LED	7 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2
Push-Button	4, for Function of Power on/off, Reset, WPS, WIFI
Operating condition	Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing）
Storing Condition	Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing）
Power supply	DC 12V/1A
Power Consumption	<6W
Net Weight	<0.4kg

Panel lights and Introduction

Pilot Lamp	Status	Description
WIFI	On	The WIFI interface is up.
	Blink	The WIFI interface is sending or/and receiving data (ACT).
	Off	The WIFI interface is down.
WPS	Blink	The WIFI interface is securely establishing a connection.
WPS	Off	The WIFI interface does not establish a secure connection.
PWR	On	The device is powered up.
PWR

	Off	The device is powered down.
LOS	Blink	The device doses not receive optical signals or with low signals.
LOS	Off	The device has received optical signal.
PON	On	The device has registered to the PON system.
	Blink	The device is registering the PON system.
	Off	The device registration is incorrect.
LAN1~LAN2	On	Port (LANx) is connected properly (LINK).
	Blink	Port (LANx) is sending or/and receiving data (ACT).
	Off	Port (LANx) connection exception or not connected.
