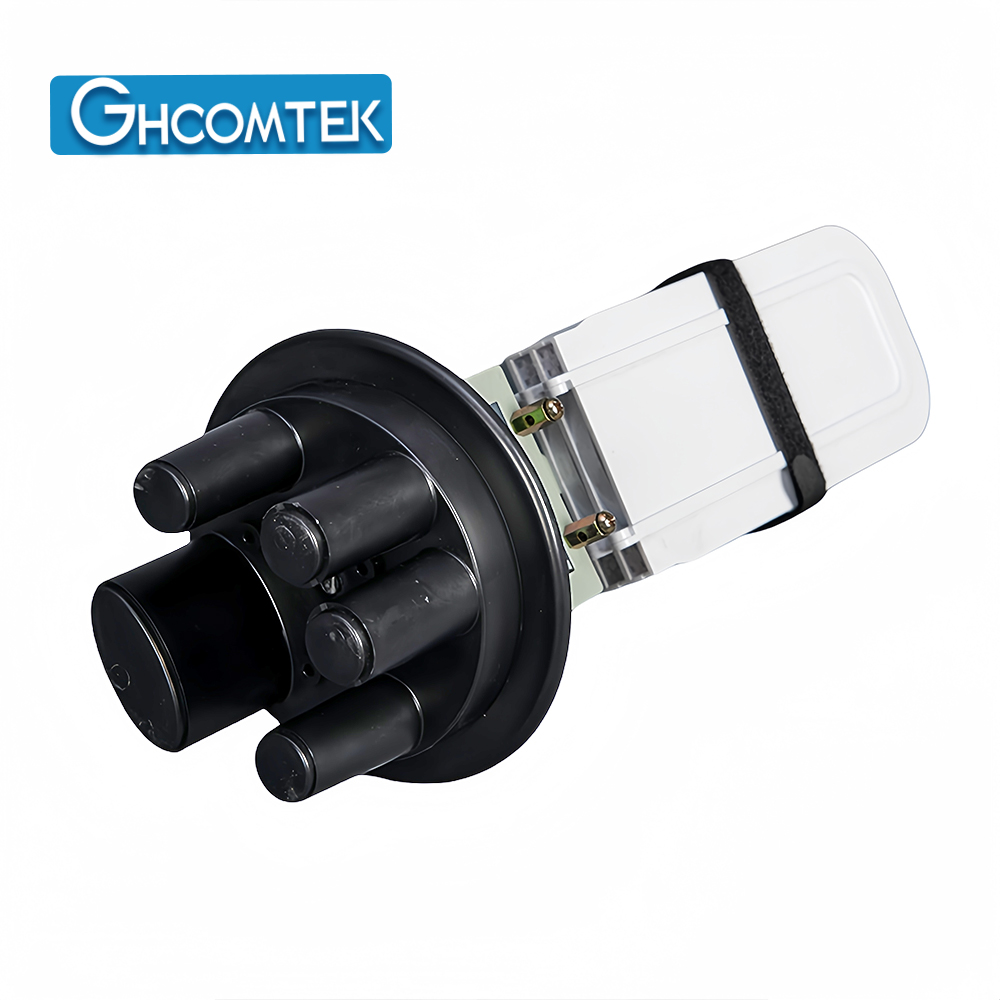

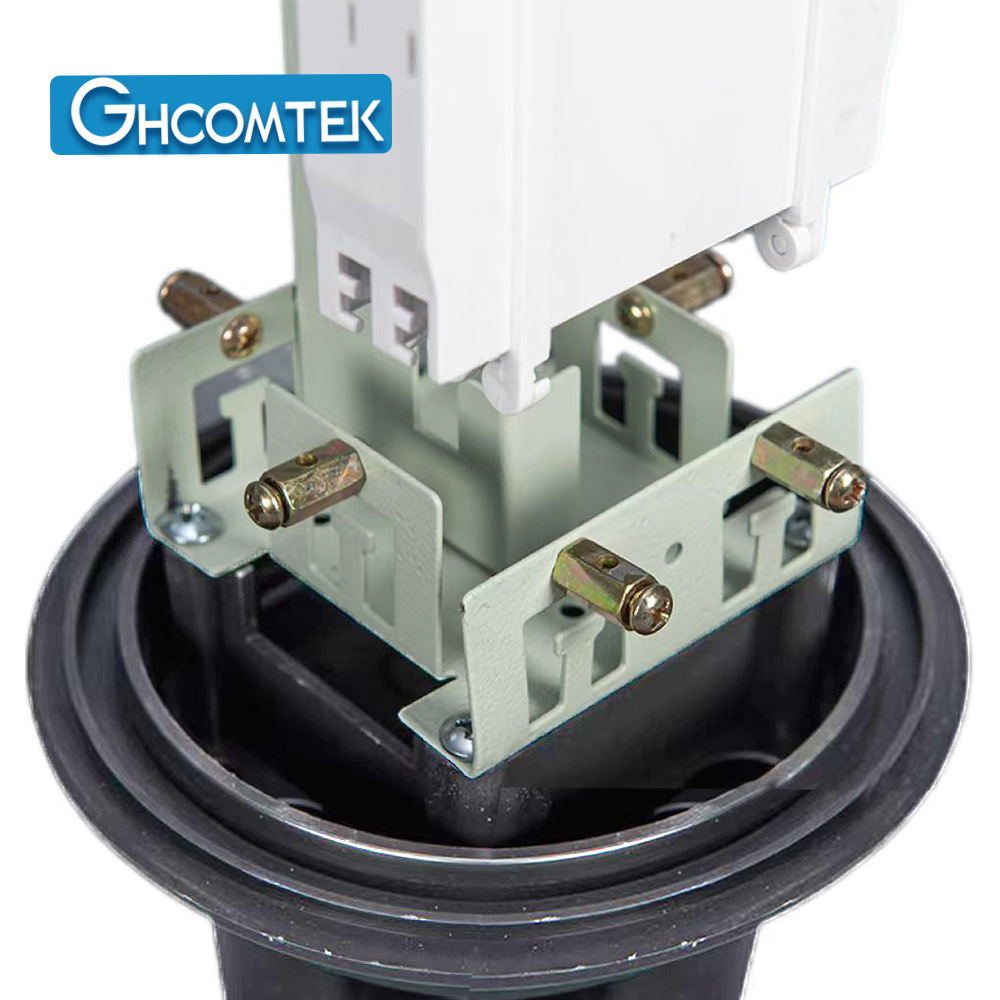

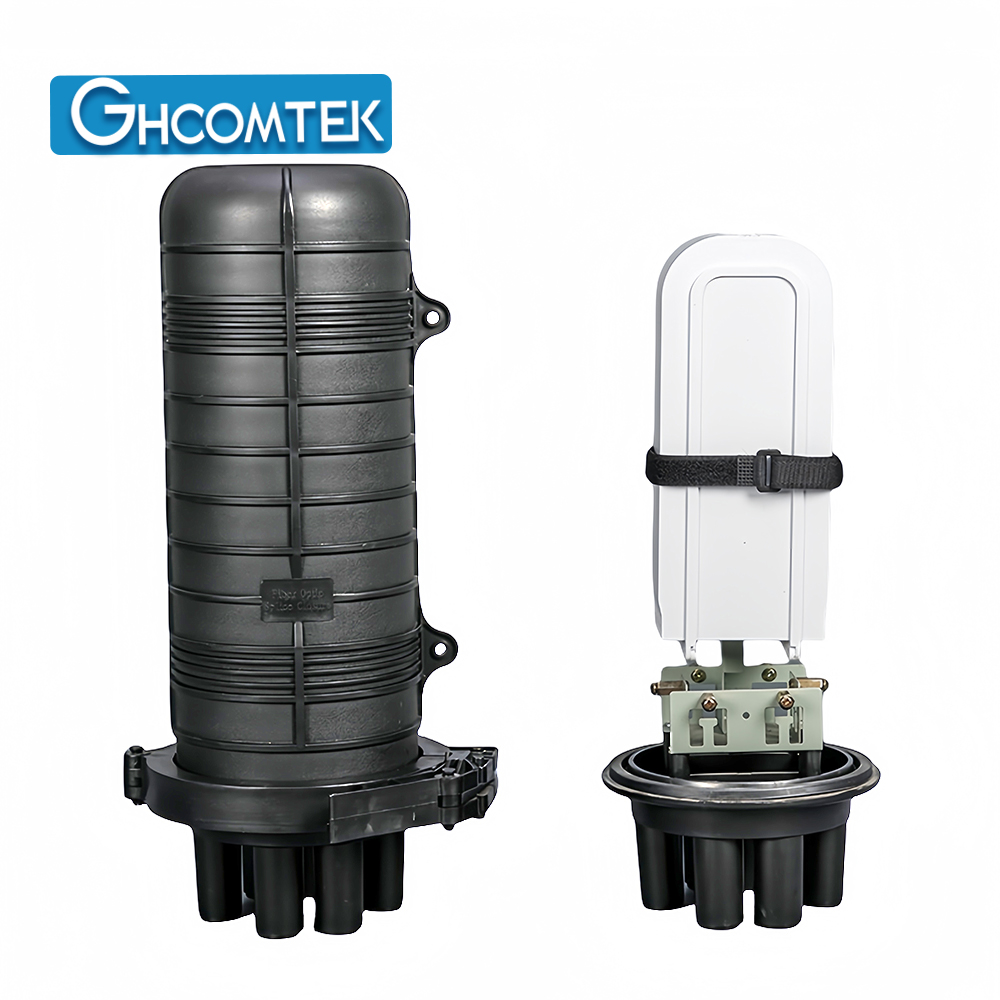

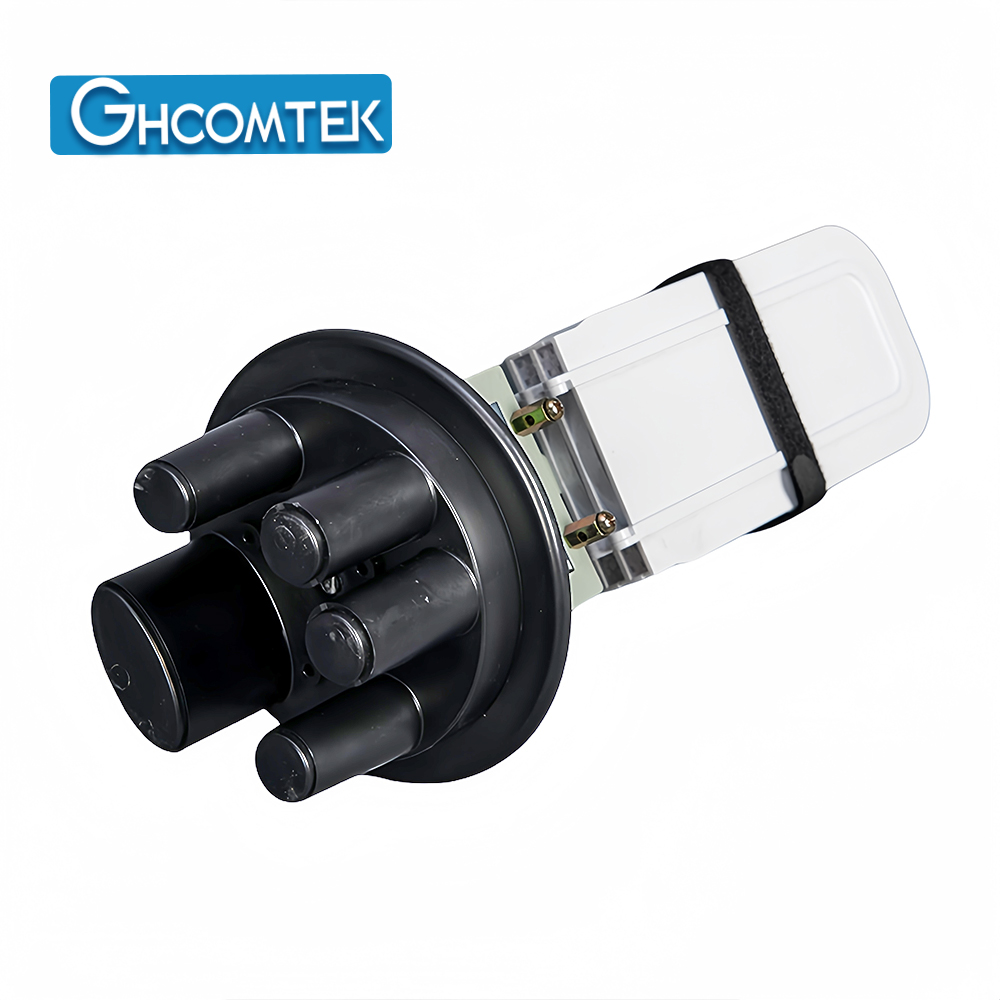

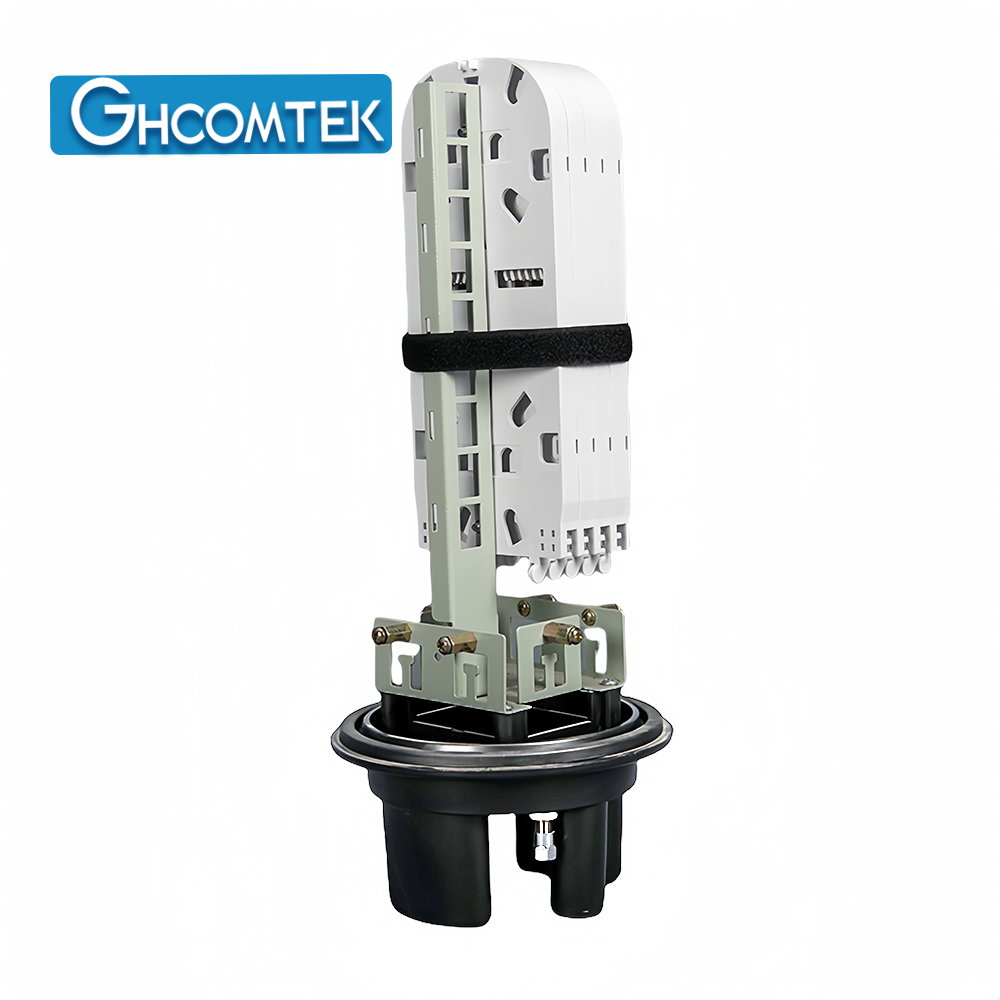

144 Fiber Dome Type Fiber Optic Splice Closure HY-10-D144M


Description

HY-10-D144M type of fiber closure is a fiber optic cable splice of multiple purposes, which can connect and protect cables. The fiber closures are capable of protecting fiber cable splices in straight-through and branching applications and shall be used in underground, aerial, wall-mounting, pedestal or direct buried, hand hole-mounting and duct-mounting applications. We always devote to the R&D of telecommunication equipment. Our fiber closures can greatly improve the performance of the operation of your network communication system. Closure is suitable for the applications up to 144 single fibers, which can cover most of the applications in the long-distance transmission and local fiber distribution networks, like Fiber To The Home / Fiber To The Curb (FTTH/FTTC). It is suitable for underground, aerial, pedestal or direct buried applications.






Specification

SizemmHxD

420×Φ140   (mm)

Capacity(cores)

144 single fibers

Entrances

5

Airproof   type

Heat   Shrink

Material

 PP

Reinforced   core

Steel   wire

Maximum number of trays

1

Capacity  of Tray

Max 32 single Fusion splices
