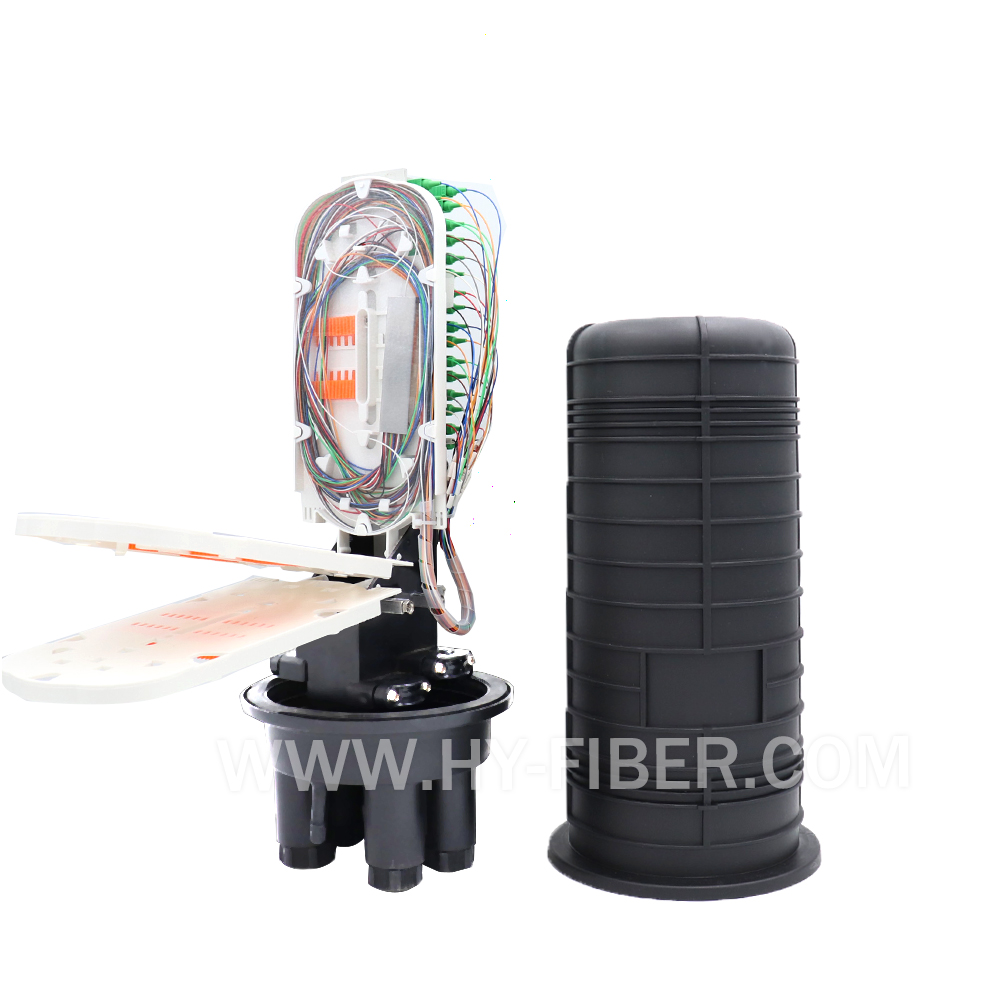

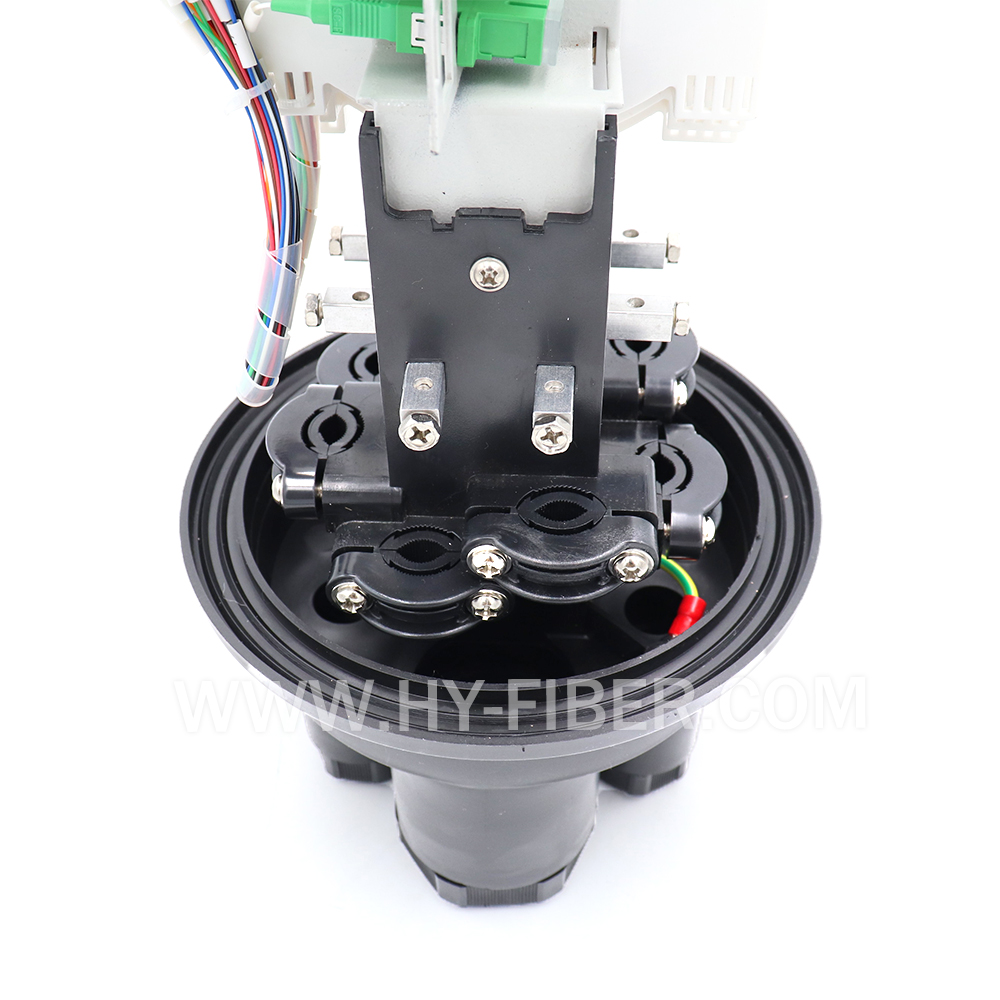

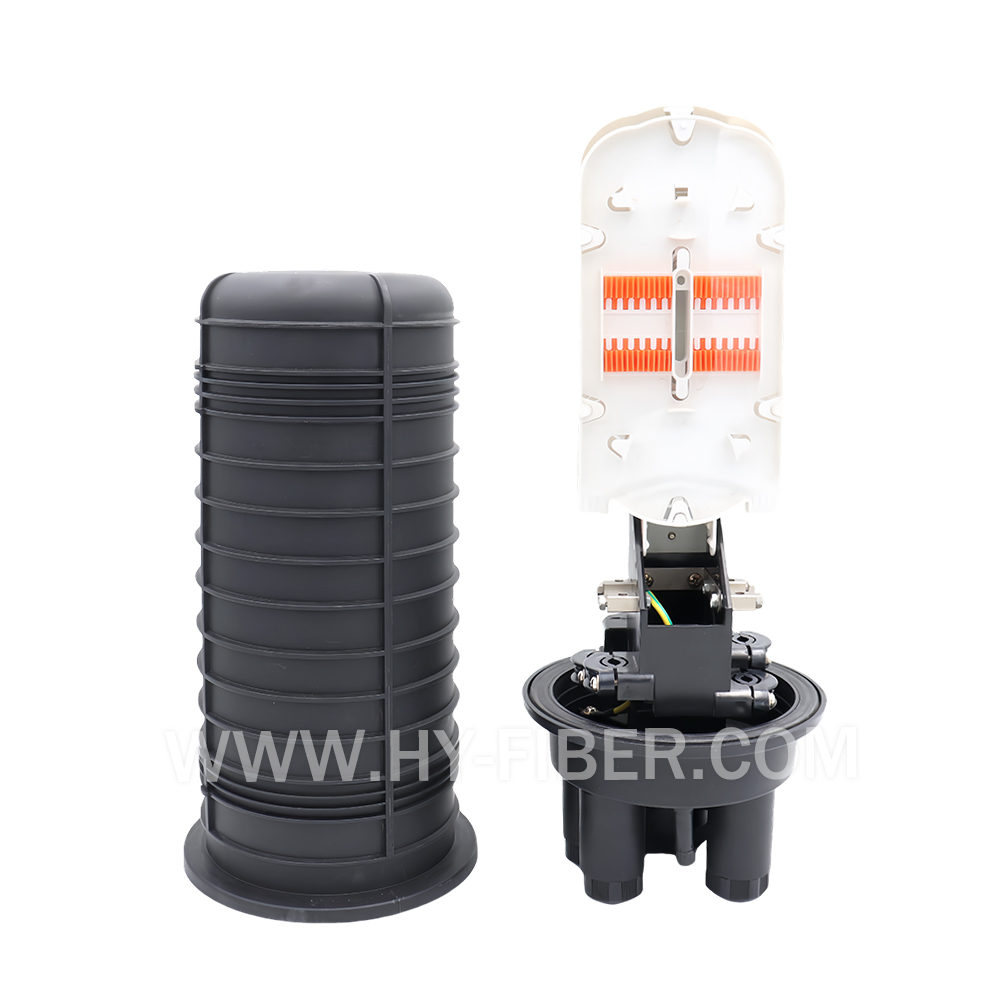

144 Fiber Dome Type Fiber Optic Splice Closure HY-10-D144F


Description

HY-10-D144F type of fiber closure is a fiber optic cable splice of multiple purposes, which can connect and protect cables. The fiber closures are capable of protecting fiber cable splices in straight-through and branching applications and shall be used in underground, aerial, wall-mounting, pedestal or direct buried, hand hole-mounting and duct-mounting applications. We always devote to the R&D of telecommunication equipment. Our fiber closures can greatly improve the performance of the operation of your network communication system. Closure is suitable for the applications up to 144 single fibers, which can cover most of the applications in the long-distance transmission and local fiber distribution networks, like Fiber To The Home / Fiber To The Curb (FTTH/FTTC). It is suitable for underground, aerial, pedestal or direct buried applications.






Specification

SizemmHxD

435×Φ230 (mm)

Capacity(cores)

144 single   fibers

Weightkg

4.7

Airproof type

Mechanical Seal

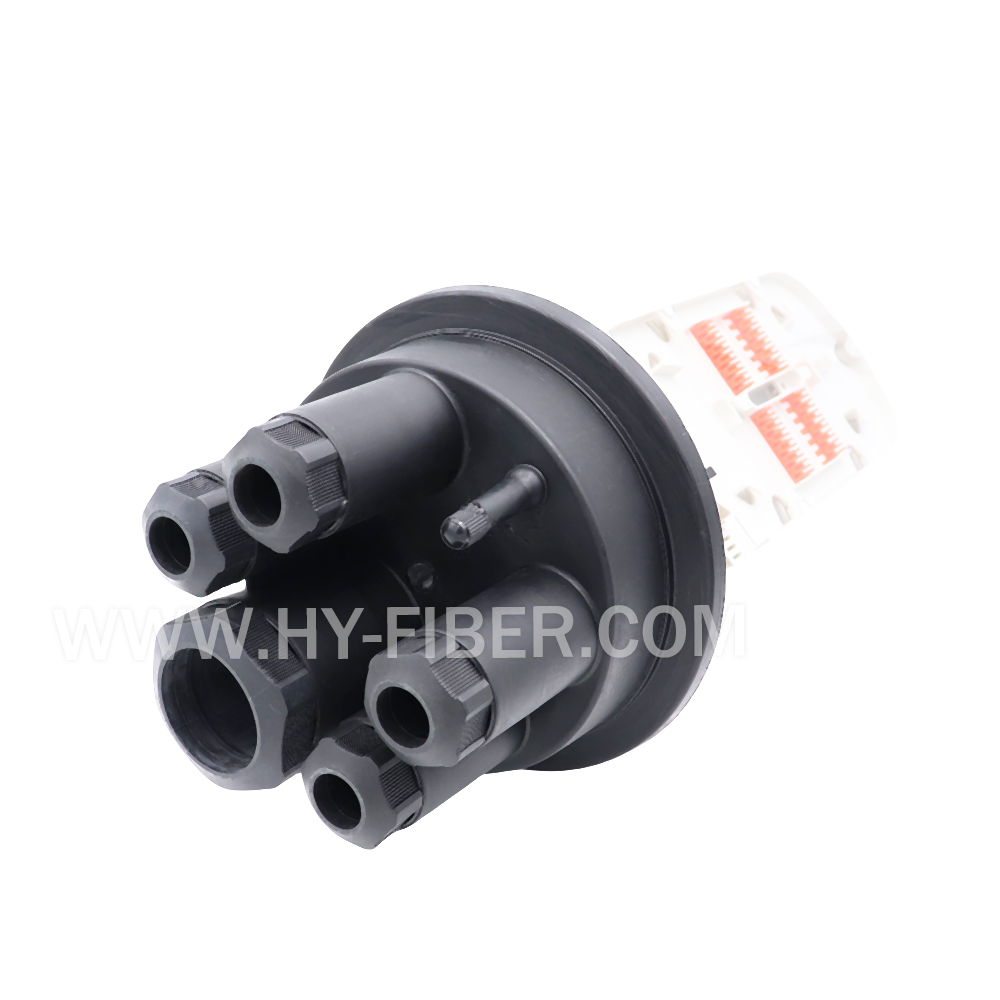

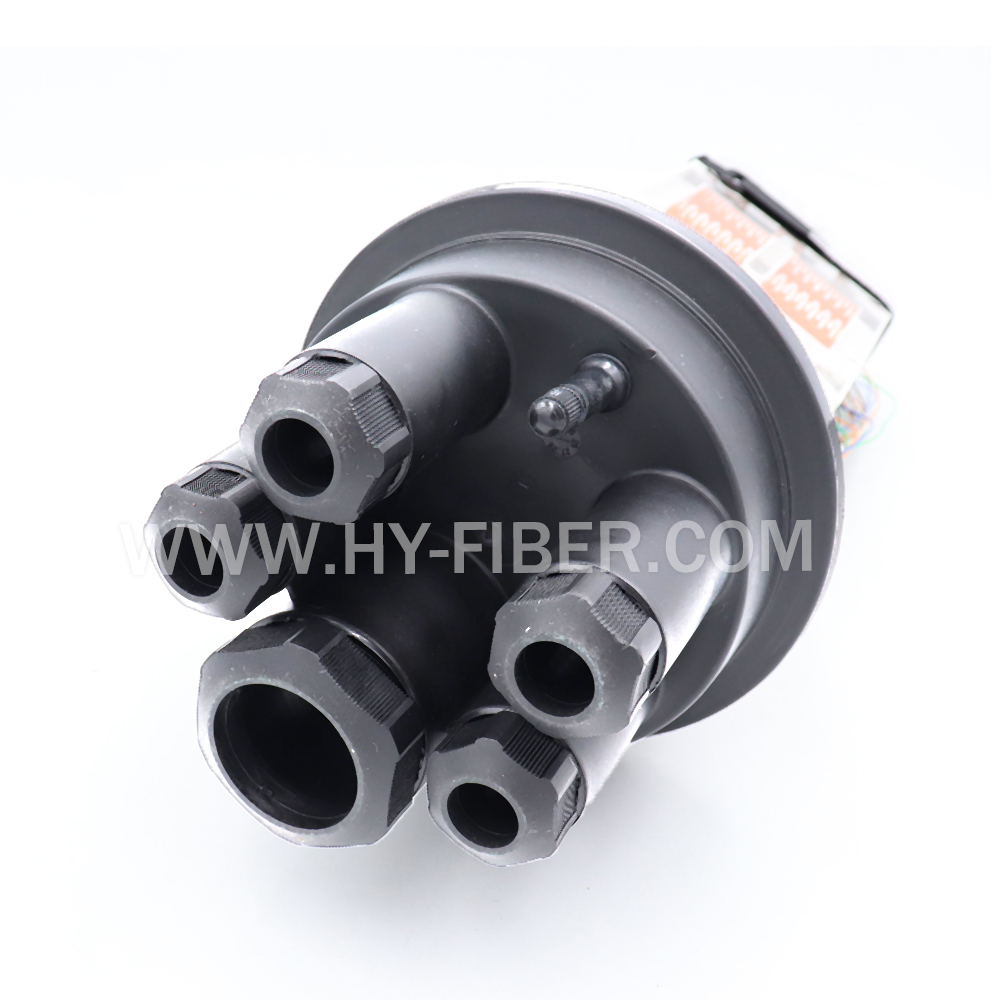

Entrances

5

Reinforced core

Steel wire

Suitable cable diameter

Φ6~Φ17.5mm,   Φ12~Φ40mm

Material

 PP

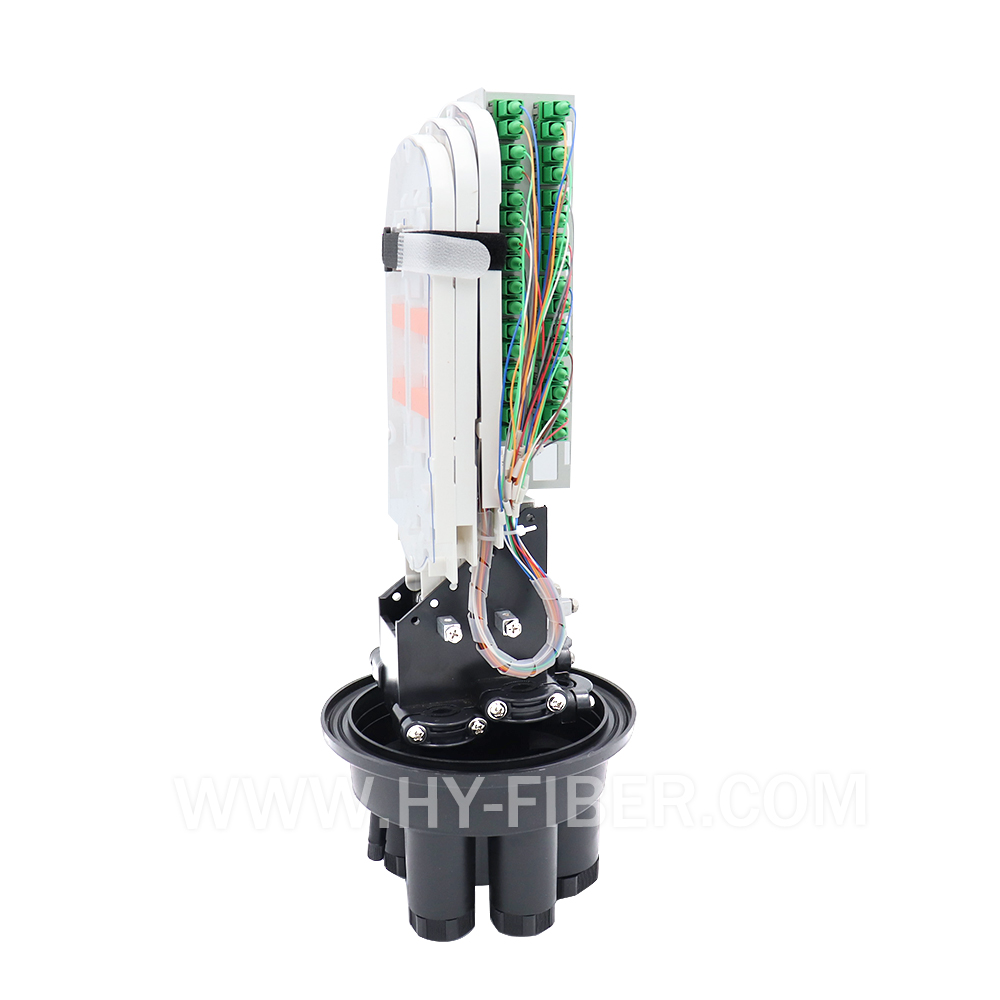

Maximum   number of trays

6

Capacity  of Tray

Max 24   single Fusion splices
