Specification
|
Item
|
Parameter
|
|
Standards
|
Compliance with IEEE802.3u 10Base-T, 100Base-TX and 100Base-FX(optical)
|
|
Fiber Feature
|
HY-11-SF05M
|
Multimode: 50/125, 62.5/125 um
|
|
HY-11-SF05S
|
Singlemode: 8.3/125, 9/125, or 10/125 um
|
|
Wavelength
|
Multimode: 850/1310 nm
|
|
Singlemode: 1310/1550 nm
|
|
Service Interface
|

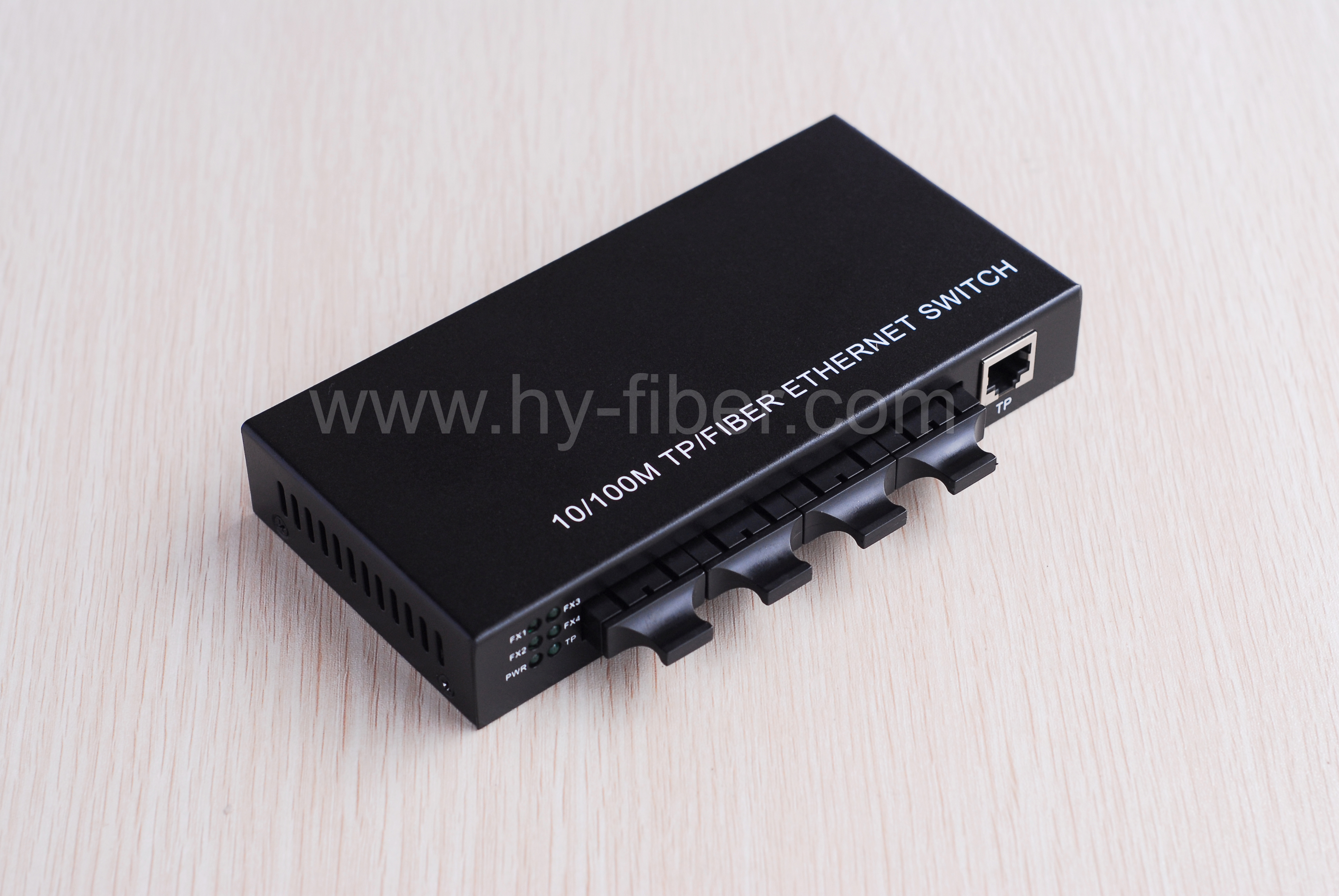

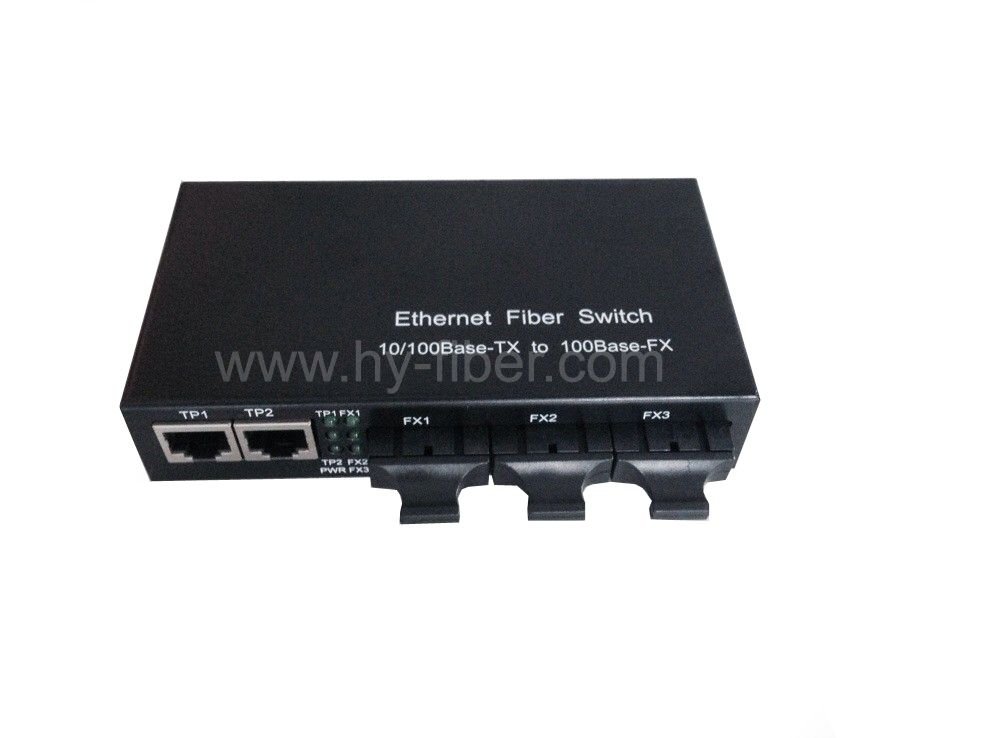

Optical interface
|
1 ~ 4 SC Fiber connector
|
|
Data interface
|
4 ~ 1 10/100 Base-Tx (RJ45-UTP)
|
|
LED
|
6 of POWER, FX..., TP...
|
|
Dimension
|
71mm(L)*93mm(W)*26mm(H)
|
|
Power Supply
|
External power adapter, 5V/2A
|
|
Working Environment
|
Operation Temperature
|
0ºC to + 70ºC
|
|
Humidity
|
5% to 95% (no condensing)
|
Note:
- The Media Converter supports Auto-speed and MDI/MDIX auto detection.
- Optical port is always set to full duplex mode.
- UTP port is auto-negotiation mode. Auto-negotiation allows UTP link partners to select the best common mode of operation.
4. WDM Single Fiber Model
The Single Fiber converter is specially designed with an optic Wavelength Division Multiplexing(WDM) model that can transport bi-directional full duplex signal over a single fiber simultaneously.
Single Fiber Model TX,RX Wavelength:
The Converter-1(A) Single-Mode 20/40/60Km models are option TX(Transmit) 1310nm, RX (Receive) 1550nm.
The Converter-2(B) Single-Mode 20/40/60Km models are option TX(Transmit) 1550nm, RX (Receive) 1310nm.
