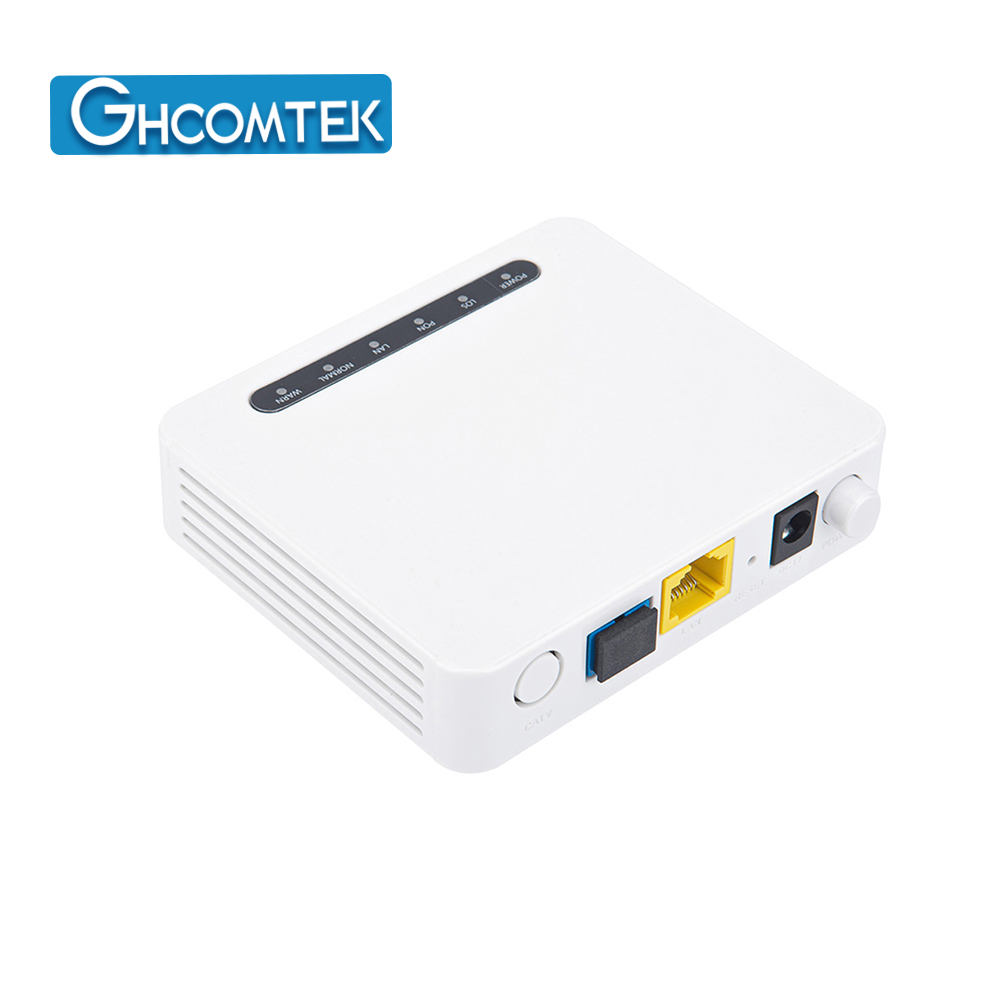

Specification
u Supports Dual Mode (can access GPON/EPON OLT).
u Supports SFU and HGU of EPON CTC 3.0 standard
u Supports GPON G.984/G.988 standards and IEEE802.3ah.
u Support NAT, Firewall function.
u Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
u Support port mode of vlan configuration
u Support LAN IP and DHCP Server configuration
u Support TR069 Remote Configuration and maintenance
u Support Route PPPOE/DHCP/Static IP and Bridge mixed mode
u Support IPv4/IPv6 dual stack
u Support IGMPv2, IGMPv3, MLDv1, MLDv2, IGMP snooping/proxy
u Compatible with popular OLT(HW, ZTE, FiberHome,)
Specification:
Technical Item | Details |
PON interface | 1 GPON/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm,Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
LAN interface | 10/100/1000Mbps auto adaptive Ethernet interfaces. 10/100/1000M Full/Half, RJ45 connector |
LED | 4 LED, For Status of POWER、LOS、PON、LAN |
Push-Button | 2, for Function of Power on/off, Reset |
Operating condition | Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
Storing Condition | Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
Power supply | DC 12V/1A |
Power Consumption | <3W |
Net Weight | <0.2kg |
Panel lights and Introduction
Pilot | Status | Description |
POWER | On | The device is powered up. |
Off | The device is powered down. |
LOS | Blink | The device doses not receive optical signals. |
Off | The device has received optical signal. |
PON | On | The device has registered to the PON system. |
Blink | The device is registering the PON system. |
Off | The device registration is incorrect. |
LAN | On | Port is connected properly (LINK). |
Blink | Port is sending or/and receiving data (ACT). |
Off | Port connection exception or not connected. |
